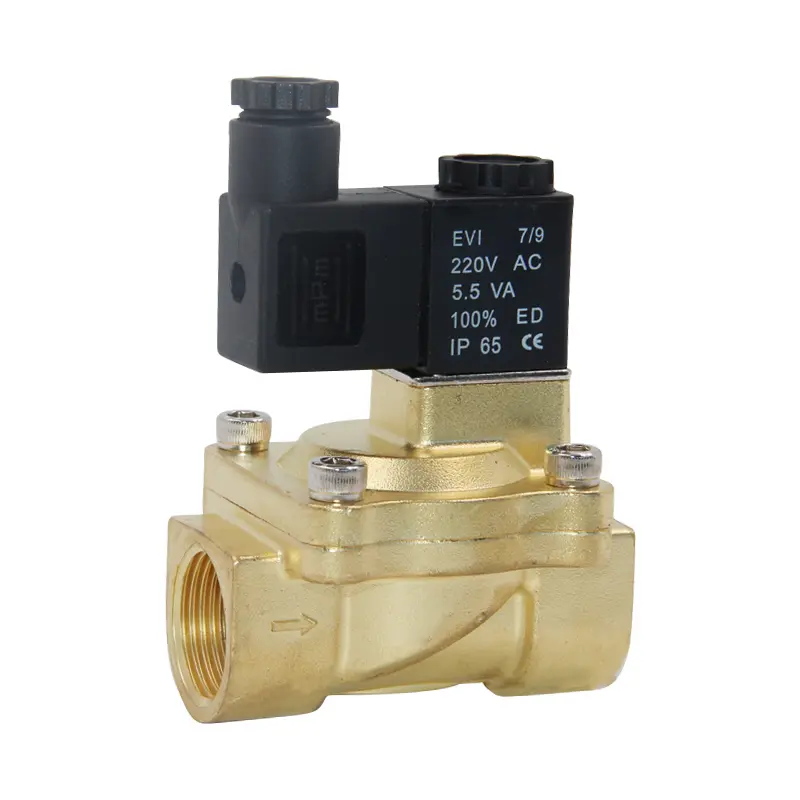

5404 Series High Pressure Solenoid Valve

Specifications Model 5404-04 5404-06 5404-08 Working Medium Air, Water, Oil Motion Pattern Guide Type Type Normal Close Type Aperture of Flow Rate(mm) 12 25 25 KV Value 2 5 10 Joint Pipe Bore 1/2″ 3/4″ 1″ Working-pressure(kgf/cm2) Gas: 1~50 Liquid: 1~50 Gas: 1~30 Liquid: 1~25 Gas: 1~30 Liquid: 1~25 Max. Pressure Resistance(kgf/cm2) 75 40 Operating Temperature Range(°C) -5~150 Voltage Range ±10% Protect Class IP65 Power Consumption AC: 5.5VA DC: 9W Insulation F Class Material of Body Brass Material of Oil Seal PTFE Model Selection and Dimensions Model Inner hole(mm) Connection Port A B F E L A/F 5404-04 12 1/2″ 84 98 13 32 63.5 28 5404-04B 15 1/2″ 75 89 13 32 63.5 28 5404-06 20 3/4″ 99.5 125 16 60 91 41 5404-08 25 1″ 99.5 125 16 60 91 41 Product Features High Pressure Fluid Control The 5404 Series is designed for automatic on-off control in higher pressure fluid and compressed air systems. It is suitable for applications where standard low-pressure solenoid valves cannot meet the required working pressure. High Temperature Working Range With an operating temperature…
