Specifications
| Parameter | Description |
|---|---|

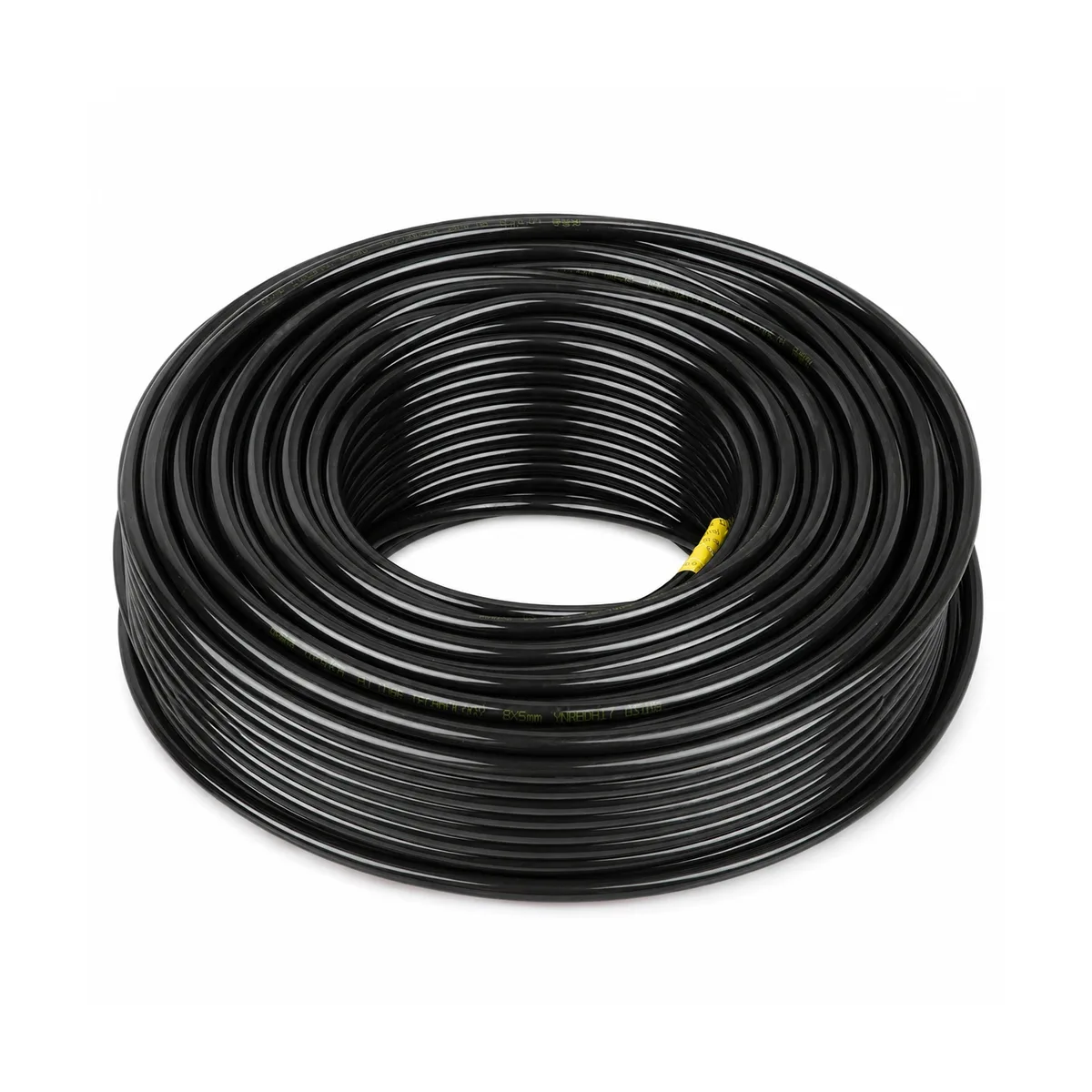

| Product Name | Special-Purpose Tubing Anti-Static TPU Hose |
| Product Type | Anti-static TPU pneumatic hose / ESD-safe air tubing |
| Material | 100% high-performance thermoplastic polyurethane elastomer, TPU |
| Anti-Static Performance | Surface resistance 10⁷–10⁹ Ω |
| Dimensional Tolerance | ±0.12 mm |
| Standard Color | Black |
| Optional Color | Other colors available upon request |
| Working Medium | Compressed air and compatible pneumatic line applications |
| Recommended Application Environment | Electronics manufacturing and electrostatic discharge-controlled working environments |
| Precautions for Fluid Temperature | Use with caution when fluid temperature exceeds 60°C |
| Precautions for Ambient Temperature | Avoid use where ambient temperature exceeds 60°C |
| Chemical Exposure Warning | Use with caution for strong acids, strong alkalis, highly polar solvents, or chemical vapor environments |
| Storage Notice | Do not store in humid conditions or for longer than 12 months |
| Typical Application | Electronics manufacturing, ESD-controlled pneumatic systems, factory air lines, automation equipment, and maintenance projects |
| Selection Checks | Confirm tube size, air pressure, working temperature, ESD requirement, chemical exposure, humidity, fitting type, and storage condition before ordering |
Tube Size Options

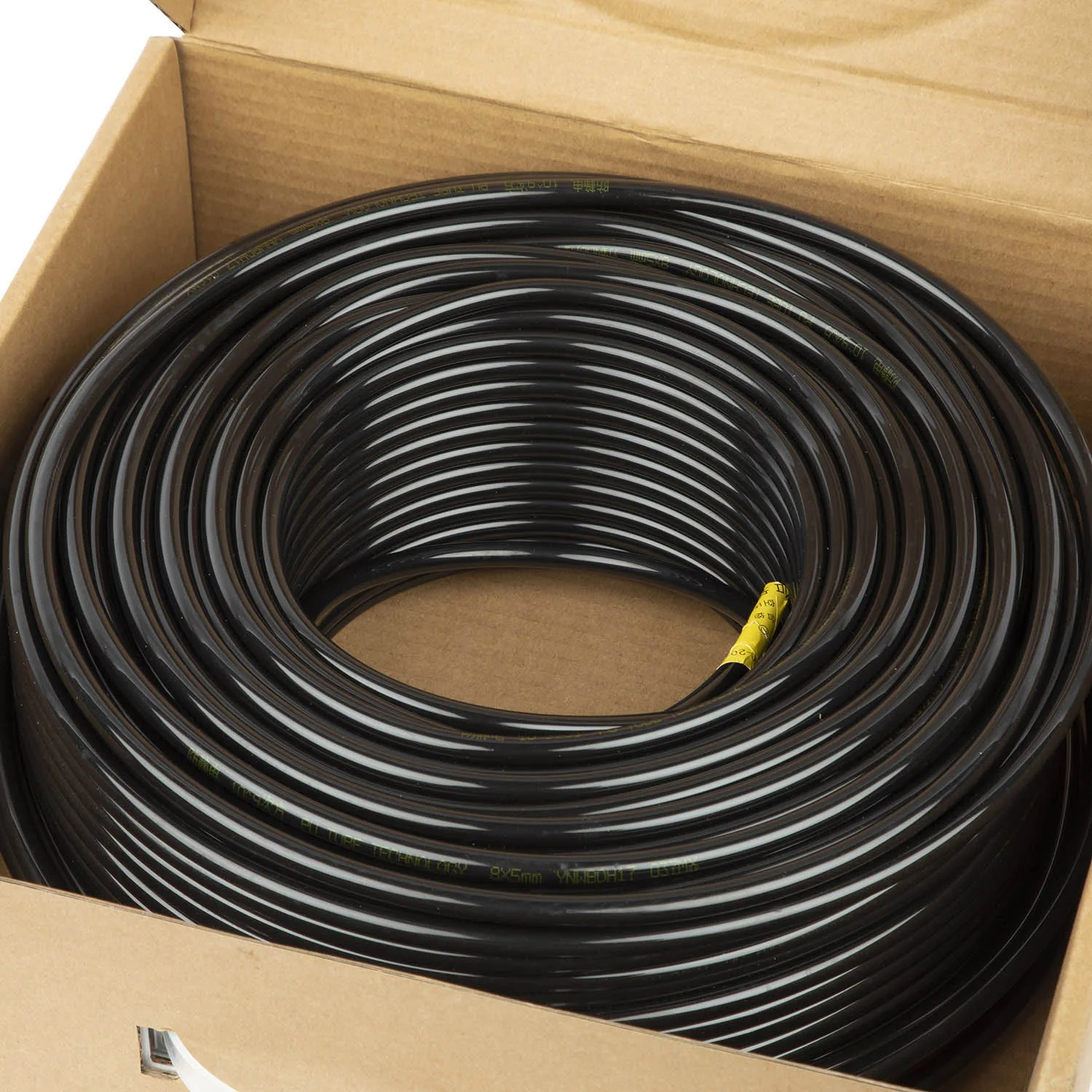

| Tube Size, O.D. × I.D. | Color | Unit | Length | Carton Quantity |
| 4 × 2.5 mm | Black | Roll | 100 m | 1 × 7 rolls |
| 6 × 4 mm | Black | Roll | 100 m | 1 × 7 rolls |
| 8 × 5 mm | Black | Roll | 100 m | 1 × 6 rolls |
| 10 × 6.5 mm | Black | Roll | 50 m | 1 × 4 rolls |
| 12 × 8 mm | Black | Roll | 50 m | 1 × 3 rolls |
Product Features
Anti-Static Performance for ESD-Controlled Areas
This special-purpose anti-static TPU hose is designed for pneumatic air line applications where electrostatic discharge control is required. With a surface resistance range of 10⁷–10⁹ Ω, it is suitable for electronics manufacturing and other ESD-controlled working environments.
Made from High-Performance TPU
The tubing is manufactured from 100% high-performance thermoplastic polyurethane elastomer. This material supports reliable operation under continuous working pressure and helps provide an extended service life in suitable pneumatic applications.
Stable Dimensional Control
An online dimensional control system helps maintain the tubing diameter tolerance within ±0.12 mm. This supports stable fitting connection, consistent installation, and better air line reliability in pneumatic systems.
Black Standard Color with Custom Options
The standard anti-static tubing color is black. Other colors can be confirmed according to customer requirements, project quantity, and production availability.
Smooth Pneumatic Line Installation
The hose is suitable for compressed air routing in pneumatic equipment, electronic production lines, automation machines, workstations, and ESD-safe factory areas where standard air tubing may not meet anti-static requirements.
Important Chemical and Temperature Precautions
The hose should be used with caution when fluid temperature exceeds 60°C, or when conveying strong acids, strong alkalis, highly polar solvents, or other highly corrosive media. High temperature, chemical vapors, and long-term humidity exposure may reduce hose performance or cause cracking.
Applications
Electronics Manufacturing
Used in electronics production lines, component assembly areas, testing equipment, and clean working environments where electrostatic discharge control is required.
ESD-Controlled Pneumatic Systems
Suitable for pneumatic air lines in ESD-safe workstations, automation equipment, inspection systems, and factory production areas that require anti-static tubing.
Automation Equipment Air Lines
Applied in automated machinery, pneumatic control circuits, small cylinders, pneumatic tools, and air supply connections where black anti-static TPU tubing is preferred.
Factory Air Line Routing
Used for compressed air connection in workshops, production equipment, machine maintenance, and pneumatic workstations.
Maintenance and Replacement Projects
Suitable for replacing standard tubing in areas where anti-static performance, dimensional stability, and TPU hose flexibility are required.
Precautions for Use
Use this hose carefully when the fluid temperature exceeds 60°C. High fluid temperature may soften the tubing and reduce pressure resistance.
Avoid using the hose in environments where the ambient temperature exceeds 60°C or where chemical vapors are present. Chemical vapors may accelerate hose aging and cause cracking.
Do not use this hose for strong acids, strong alkalis, highly polar solvents, or highly corrosive media unless material compatibility has been fully confirmed.
Do not store the hose in humid conditions or for longer than 12 months. Long-term moisture exposure may cause hydrolysis, cracking, or premature hose failure.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic hoses, anti-static TPU tubing, PU tubes, PE tubes, PA nylon tubes, pneumatic fittings, air blow guns, air source treatment components, solenoid valves, cylinders, and related compressed air components for industrial automation and factory maintenance.
We help customers confirm hose selection details before ordering, including tube size, material, surface resistance requirement, working pressure, temperature range, fitting type, color, roll length, storage condition, and packaging requirement.
For distributors and industrial customers, HOMIPNEU provides stable sourcing support for anti-static TPU hose, special-purpose pneumatic tubing, ESD air line components, and related compressed air system projects.
FAQ
What is the anti-static TPU hose used for?
It is used for pneumatic air line applications in electronics manufacturing, ESD-controlled workstations, automation equipment, and factory air systems where anti-static performance is required.
What is the surface resistance of this hose?
The surface resistance range is 10⁷–10⁹ Ω, making it suitable for selected electrostatic discharge-controlled working environments.
What material is the hose made from?
The hose is made from 100% high-performance thermoplastic polyurethane elastomer, TPU.
What color is the standard anti-static hose?
The standard color is black. Other colors are available upon request.
What sizes are available?
Available sizes include 4 × 2.5 mm, 6 × 4 mm, 8 × 5 mm, 10 × 6.5 mm, and 12 × 8 mm.
Can this hose be used in high-temperature environments?
Use with caution when the fluid or ambient temperature exceeds 60°C. High temperature may soften the hose and reduce pressure resistance.
Can this hose be used for strong acids or strong alkalis?
It is not recommended for strong acids, strong alkalis, highly polar solvents, or highly corrosive media unless material compatibility is fully confirmed before use.
How should this hose be stored?
Avoid humid storage conditions and do not store the hose for longer than 12 months. Prolonged moisture exposure may cause hydrolysis, cracking, or premature failure.
What should be confirmed before ordering?
Please confirm tube size, surface resistance requirement, working pressure, temperature, fitting type, application environment, chemical exposure, color, roll length, packaging requirement, and order quantity.
