Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Speed Controller |
| Structure | Elbow (90°) + Flow Control |
| Connection | Tube to Thread |
| Seal Type | O-Ring Sealing |
| Material | Plastic + Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

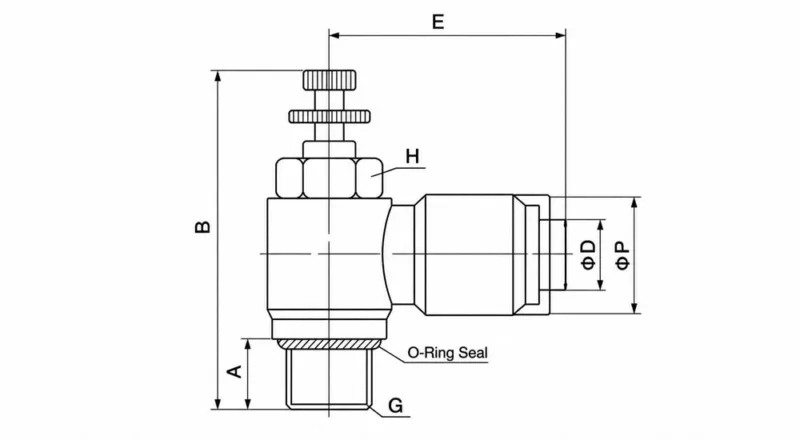

| Model | ΦD | G | A | B | H | E | ΦP |
| SL4-M5 | 4 | M5 | 3.8 | 29 | 8 | 20.5 | 11 |
| SL4-G01 | 4 | G1/8 | 6 | 37 | 11 | 24 | 13 |
| SL4-G02 | 4 | G1/4 | 8.5 | 39 | 15 | 25 | 13 |
| SL6-M5 | 6 | M5 | 3.8 | 29 | 8 | 22.5 | 13 |
| SL6-G01 | 6 | G1/8 | 6 | 37 | 11 | 24 | 13 |
| SL6-G02 | 6 | G1/4 | 8.5 | 39 | 15 | 25.5 | 13 |
| SL6-G03 | 6 | G3/8 | 9 | 46 | 19 | 29.5 | 13 |
| SL6-G04 | 6 | G1/2 | 10 | 50 | 22 | 31 | 13 |
| SL8-G01 | 8 | G1/8 | 6 | 37 | 11 | 26 | 15 |
| SL8-G02 | 8 | G1/4 | 8.5 | 39 | 15 | 28 | 15 |
| SL8-G03 | 8 | G3/8 | 9 | 46 | 19 | 30 | 15 |
| SL8-G04 | 8 | G1/2 | 10 | 50 | 22 | 32 | 15 |
| SL10-G01 | 10 | G1/8 | 6 | 37 | 11 | 31 | 21 |
| SL10-G02 | 10 | G1/4 | 8.5 | 39 | 15 | 31.5 | 18.5 |
| SL10-G03 | 10 | G3/8 | 9 | 46 | 19 | 33 | 18.5 |
| SL10-G04 | 10 | G1/2 | 10 | 50 | 22 | 35 | 21 |
| SL12-G01 | 12 | G1/8 | 6 | 37 | 11 | 31 | 21 |
| SL12-G02 | 12 | G1/4 | 8.5 | 39 | 15 | 33 | 21 |
| SL12-G03 | 12 | G3/8 | 9 | 46 | 19 | 33.5 | 21 |
| SL12-G04 | 12 | G1/2 | 10 | 50 | 22 | 35 | 21 |
Key Features
- Integrated airflow control + connection design
- 90° elbow for compact piping layout
- Nickel-plated brass for corrosion resistance
- Built-in O-ring seal for leak-proof connection
- No PTFE tape required (easy installation)
- Push-to-connect quick tube installation
Applications
Pneumatic cylinders
Used for precise speed control and smooth actuator motion
Industrial automation systems
Ensures stable airflow and leak-free operation
Air control systems
Provides accurate airflow regulation
Machinery equipment
Improves efficiency and reduces leakage risks
Compact pneumatic installations
Combines direction change, sealing, and flow control in one fitting
Product Function

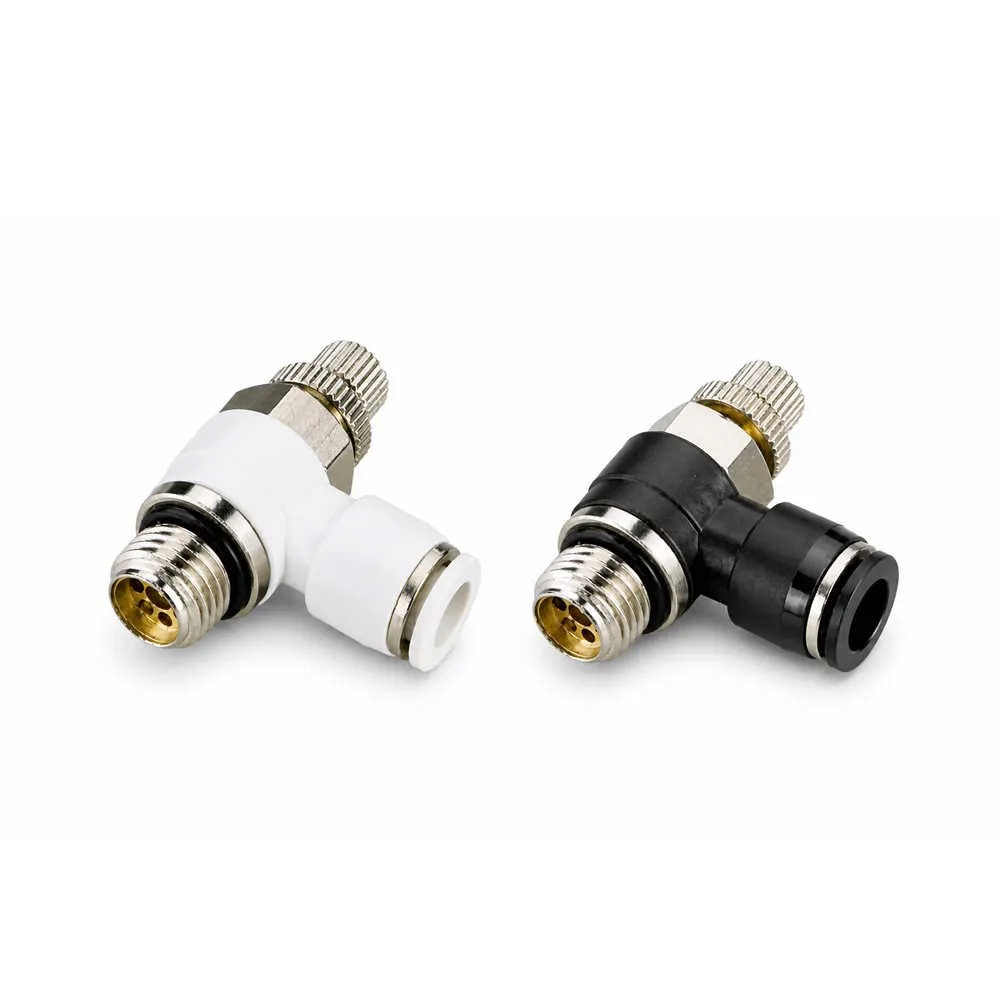

SL-G fittings combine flow control + sealing + direction change in one compact unit.
The integrated needle valve controls airflow, while the O-ring ensures a tight seal at the threaded interface, reducing leakage points and improving system reliability.
Compared to standard SL or PL fittings:
- SL-G = Flow control + elbow + O-ring sealing
- PL = Elbow only (no flow control)
Product Structure & Size Range
- Models: SL-G4 / SL-G6 / SL-G8 / SL-G10 / SL-G12
- Tube sizes: 4mm → 12mm
- Thread: M5 / G1/8 / G1/4 / G3/8 / G1/2
- Integrated needle valve
- O-ring sealed thread connection
Why Choose Our Pneumatic Fittings
- Professional SL-G pneumatic speed controller manufacturer
- OEM / ODM customization for O-ring pneumatic fittings
- Leak-proof nickel plated brass speed controller fittings
- Reliable airflow control for industrial automation systems
- High-performance push to connect fittings with sealing stability
- Fast delivery and global B2B supply support
FAQ
Q1: What is an SL-G pneumatic speed controller fitting?
It is a nickel-plated brass elbow fitting with flow control and an O-ring seal for leak-proof pneumatic connections.
Q2: What is the function of the O-ring in pneumatic fittings?
The O-ring provides a tight seal at the threaded connection, preventing air leakage and improving reliability.
Q3: Do I need PTFE tape for SL-G fittings?
No, the built-in O-ring seal eliminates the need for PTFE tape in most applications.
Q4: What is the difference between SL-G and standard speed controllers?
SL-G includes an O-ring sealing system, offering better leak prevention and easier installation.
Q5: What tubing is compatible with SL-G fittings?
SL-G fittings are compatible with PU tubing and nylon tubing.
