Specification Parameters
| Parameter | Details |
|---|---|

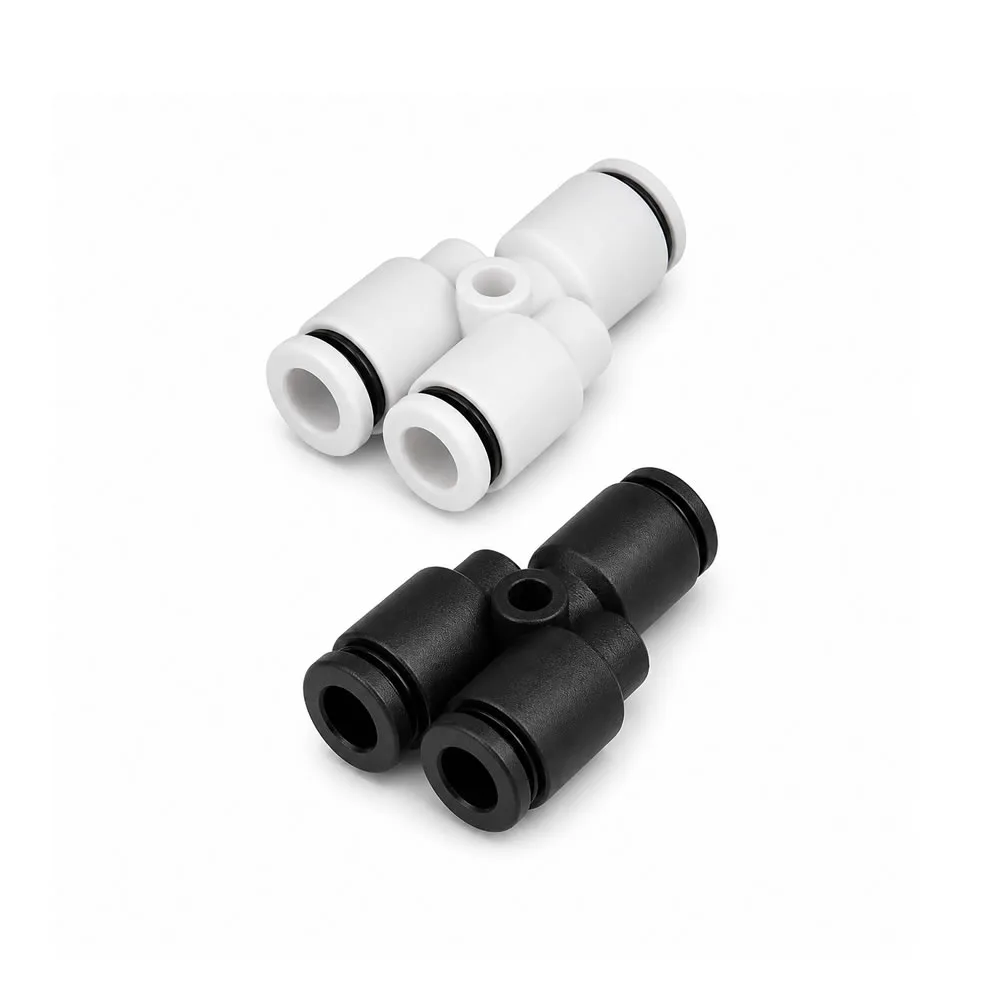

| Product Type | Mini Pneumatic Fitting |
| Structure | Y-Type (3-Way Union) |
| Connection | Tube to Tube |
| Installation | Inline |
| Material | Plastic |
| Operating Fluid | Air / Vacuum |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Mini Y-type pneumatic fittings provide compact size, efficient airflow distribution, and reliable sealing in compressed air systems.

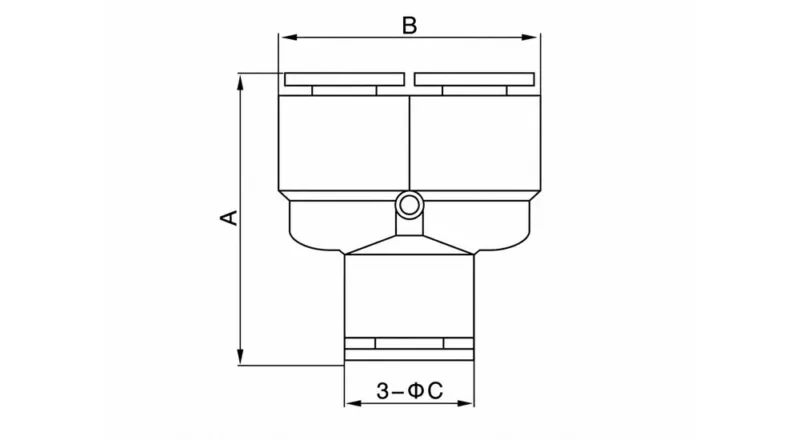

| Model | A | D | C |
| PY-C-4 | 29 | 19 | 9.5 |
| PY-C-6 | 32 | 23 | 11.5 |
Key Features
- Y-type structure for angled air distribution
- More efficient airflow than standard tee fittings
- Mini compact design for space-saving installation
- Push-to-connect quick tube connection
- Secure tube gripping with internal locking claws
- Reliable sealing for air-tight performance
Applications
Compact pneumatic systems
Used in installations with limited space
Air distribution systems
Splits airflow efficiently into multiple directions
Industrial automation equipment
Ensures stable pneumatic connections
Precision machinery
Suitable for high-density and compact layouts
Control panels
Improves piping efficiency and reduces space usage
Widely used in pneumatic systems requiring compact and efficient air distribution.
Product Function
PY-C fittings enable airflow splitting at an angle, providing smoother flow paths compared to traditional tee fittings.
The Y-shaped structure reduces turbulence and improves airflow efficiency, making it more suitable for applications requiring balanced air distribution.
Compared to other fittings:
- PY-C = Y-type angled distribution (better flow efficiency)
- Tee fitting = 90° distribution (more resistance)
- Straight fitting = no distribution (single path)
Product Structure & Size Range
- Models: PY-C3 / PY-C4 / PY-C6
- Tube sizes: 3mm / 4mm / 6mm
- Mini push-to-connect structure
- Equal diameter Y-type design
Why Choose Our Pneumatic Fittings
- Professional PY-C mini pneumatic fitting manufacturer
- OEM / ODM customization for compact fittings
- Reliable Y-type pneumatic fittings for airflow distribution
- Durable construction with stable sealing performance
- Space-saving design for modern automation systems
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PY-C pneumatic fitting?
It is a mini Y-type pneumatic fitting used to split airflow into two directions.
Q2: What is the advantage of a Y-type fitting?
It provides smoother airflow and less resistance compared to standard tee fittings.
Q3: What is the difference between Y fitting and tee fitting?
Y fittings split airflow at an angle, while tee fittings split airflow at 90 degrees.
Q4: What tubing is compatible with PY-C fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Where are PY-C fittings used?
They are used in compact pneumatic systems, automation equipment, and air distribution systems.
CTA
Looking for compact Y-type pneumatic fittings for efficient airflow distribution?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
