Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PK-C |
| Structure | Mini Five-Way |
| Connection | Tube to Tube |
| Installation | Push-to-Connect |
| Material | Plastic |
| Operating Fluid | Air / Vacuum |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | -20 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Compact mini five-way pneumatic fittings support efficient air distribution in limited installation spaces.

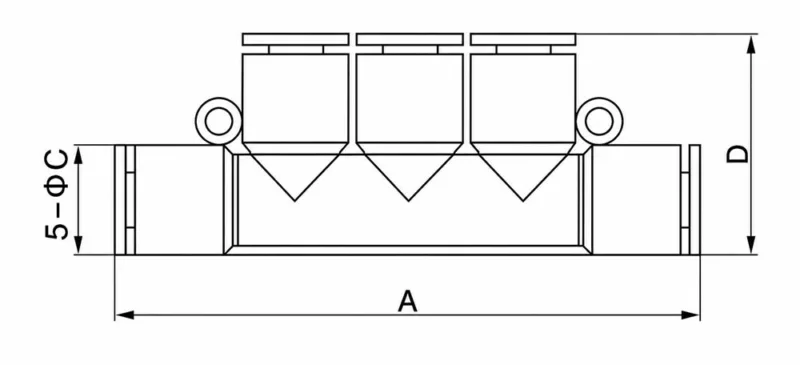

| Model | A | D | C |
| PK-C-4 | 48.5 | 20 | 9.5 |
| PK-C-6 | 57 | 23 | 11.5 |
Key Features
Mini five-way connector structure
Compact design for limited space
Push-to-connect quick installation
Multi-direction air tube distribution
Lightweight body for pneumatic systems
Suitable for PU and nylon tubing
Applications
Pneumatic control systems
Used for compact multi-direction air tube connection.
Industrial automation equipment
Supports air distribution in automated machinery.
Air distribution circuits
Helps divide airflow into multiple tube directions.
Compact pneumatic layouts
Ideal for small installation spaces.
Machinery and equipment piping
Provides reliable tube connection for air systems.
Product Function

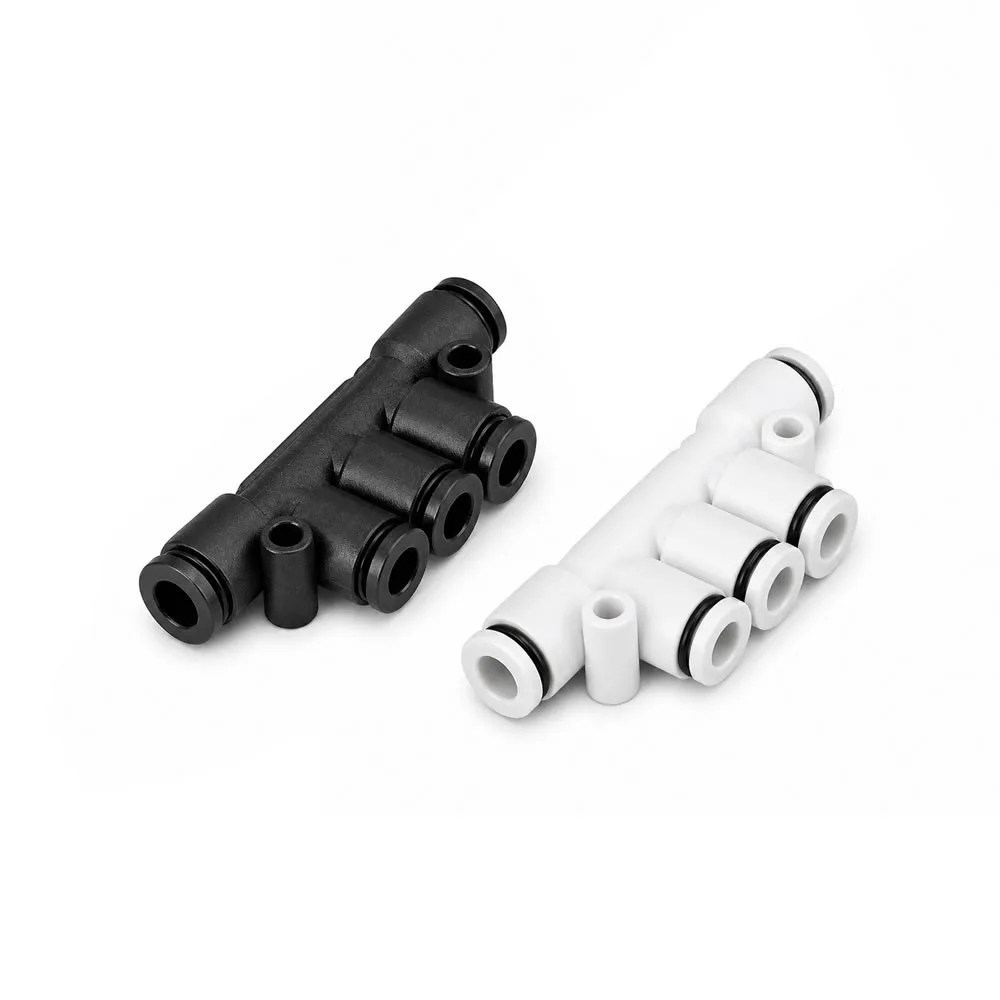

PK-C fittings are designed to connect multiple pneumatic tubes in a compact five-way layout, helping distribute compressed air efficiently within pneumatic circuits.
Compared with standard straight or elbow fittings, PK-C provides more connection directions in one fitting, reducing piping complexity and saving installation space.
Product Structure & Size Range
PK-C4 / PK-C6 / PK-C8 / PK-C10 / PK-C12
Tube sizes: 4mm → 12mm
Mini five-way structure
Push-to-connect tube ports
Compact multi-direction design
Why Choose Our Pneumatic Fittings
Professional PK-C pneumatic fitting manufacturer
OEM / ODM customization for mini five-way pneumatic fittings
Compact push to connect fitting for automation systems
Reliable pneumatic air connector for multi-direction tube routing
Stable quality for industrial pneumatic applications
Fast delivery and global B2B supply support
FAQ
Q1: What is a PK-C pneumatic fitting?
It is a mini five-way push-to-connect pneumatic fitting used for multi-direction air tube connection.
Q2: What is a five-way pneumatic fitting used for?
It is used to connect and distribute compressed air through multiple tube directions.
Q3: Is PK-C suitable for compact installations?
Yes, the mini structure is designed for space-limited pneumatic systems.
Q4: What tubing is compatible with PK-C fittings?
PK-C fittings are suitable for PU tubing and nylon tubing.
Q5: Can PK-C fittings be customized?
Yes, OEM and ODM customization is available for size, color, and branding requirements.
CTA
Looking for compact PK-C mini five-way push-to-connect pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
