Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Mini Pneumatic Fitting |
| Structure | Tee (T-Type, 3-Way) |
| Connection | Tube to Tube |
| Installation | Inline |
| Material | Plastic |
| Operating Fluid | Air / Vacuum |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

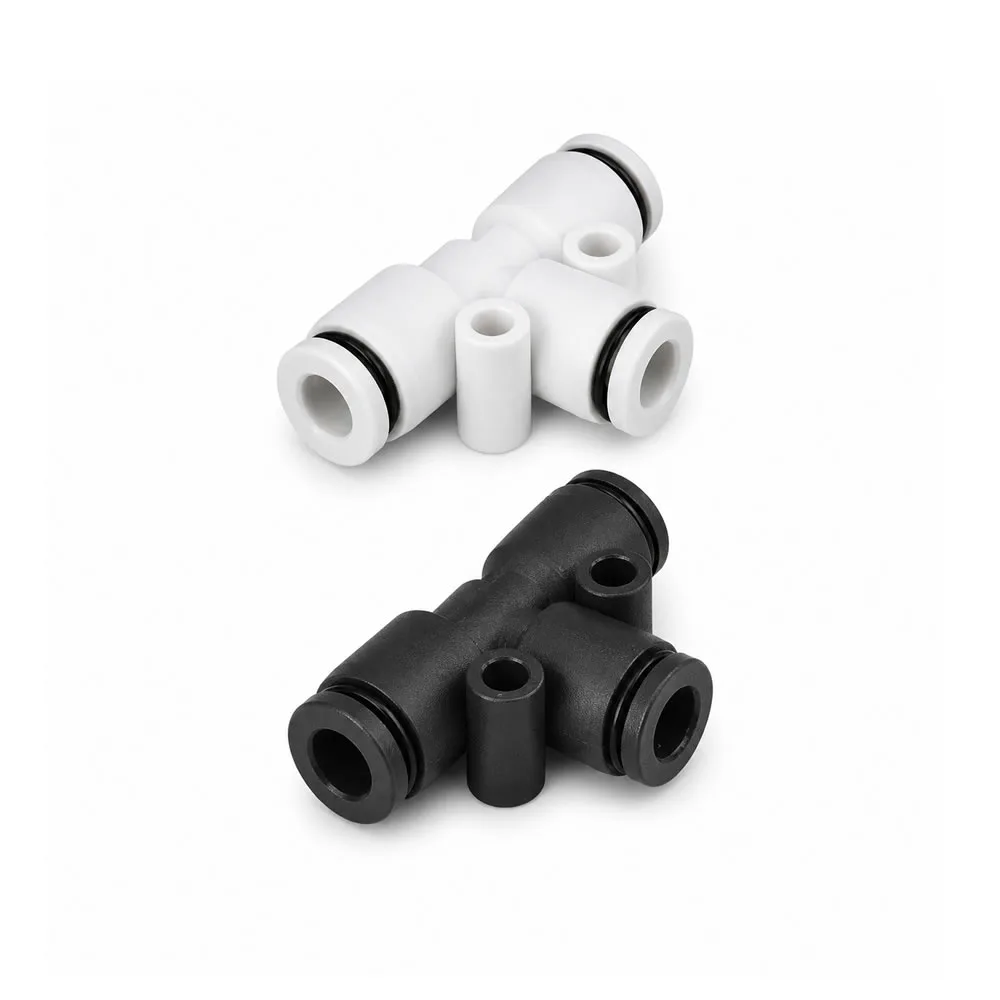

Mini tee pneumatic fittings provide reliable 90° airflow distribution, compact installation, and stable sealing performance.

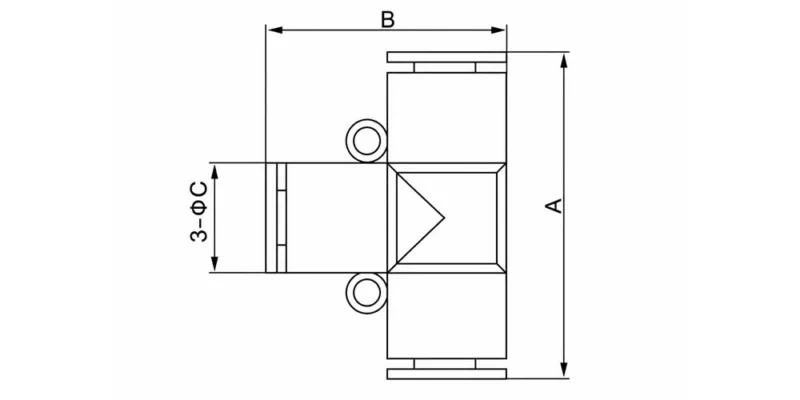

| Model | A | D | C |
| PE-C-4 | 30 | 20 | 9.5 |
| PE-C-6 | 34 | 23 | 11.5 |
Key Features
- Tee (T-type) structure for 90° air distribution
- Mini compact design for space-saving installation
- Push-to-connect quick tube connection
- Built-in O-ring sealing for airtight performance
- Secure tube gripping with stainless steel claw
- Durable construction for industrial use
Applications
Pneumatic air distribution systems
Used to split airflow into two perpendicular directions
Industrial automation equipment
Ensures stable multi-line air connections
Machinery equipment
Improves piping organization and layout
Control panels
Ideal for compact and structured air routing
Compressed air systems
Provides reliable and leak-free connections
Widely used in standard pneumatic systems requiring 90° branching and compact installation.
Product Function
PE-C fittings enable 90° air distribution from a single line into two directions, forming a standard tee-connection structure in pneumatic systems.
The push-to-connect mechanism ensures fast tube insertion and secure locking, while the internal O-ring provides reliable sealing to prevent air leakage.
Compared to other fittings:
- PE-C = Tee (90° distribution)
- PY-C = Y-type (angled distribution, smoother flow)
- Straight fitting = no distribution
Product Structure & Size Range
- Models: PE-C3 / PE-C4 / PE-C6
- Tube sizes: 3mm / 4mm / 6mm
- Equal diameter tee structure
- Mini push-to-connect design
Why Choose Our Pneumatic Fittings
- Professional PE-C mini pneumatic fitting manufacturer
- OEM / ODM customization for compact fittings
- Reliable tee pneumatic fittings for air distribution
- Durable construction with stable sealing performance
- Space-saving design for automation systems
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PE-C pneumatic fitting?
It is a mini tee pneumatic fitting used to split airflow into two perpendicular directions.
Q2: What is the function of a tee pneumatic fitting?
It distributes air at a 90-degree angle, allowing system branching.
Q3: What is the difference between tee and Y fittings?
Tee fittings split airflow at 90°, while Y fittings split airflow at an angle for smoother flow.
Q4: What tubing is compatible with PE-C fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Where are PE-C fittings used?
They are used in pneumatic systems, automation equipment, and compact installations.
