Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | Mini Elbow (90°) |
| Connection | Tube to Thread |
| Thread Type | M5 / R1/8 / R1/4 |
| Material | Engineering Plastic |
| Seal Type | Self-Locking |
| Operating Fluid | Air |
| Working Pressure | 0 – 0.8 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Compact plastic elbow fittings provide lightweight structure, stable airflow, and reliable sealing in pneumatic systems.

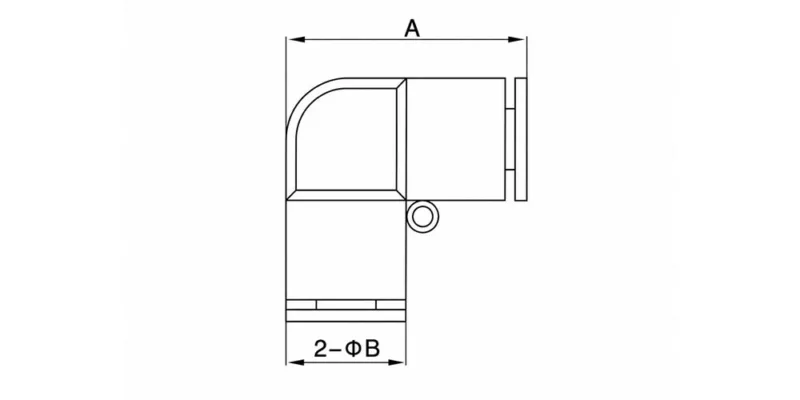

| Model | A | B |
| PV-C-4 | 19.5 | 9.5 |
| PV-C-6 | 22.5 | 11.5 |
Key Features
Mini compact elbow design
90° airflow direction change
Lightweight and corrosion-resistant structure
Push-to-connect quick installation
Stable and reliable tube connection
Cost-effective solution for pneumatic systems
Applications
Pneumatic control systems
Used for directional airflow connection in compact layouts
Industrial automation equipment
Suitable for lightweight system designs
Air distribution systems
Provides efficient tube routing
Compact machinery
Ideal for limited space installations
Packaging and textile machinery
Common in lightweight pneumatic systems
Widely used in pneumatic systems requiring compact elbow fittings with efficient airflow direction control and easy installation.
Product Function

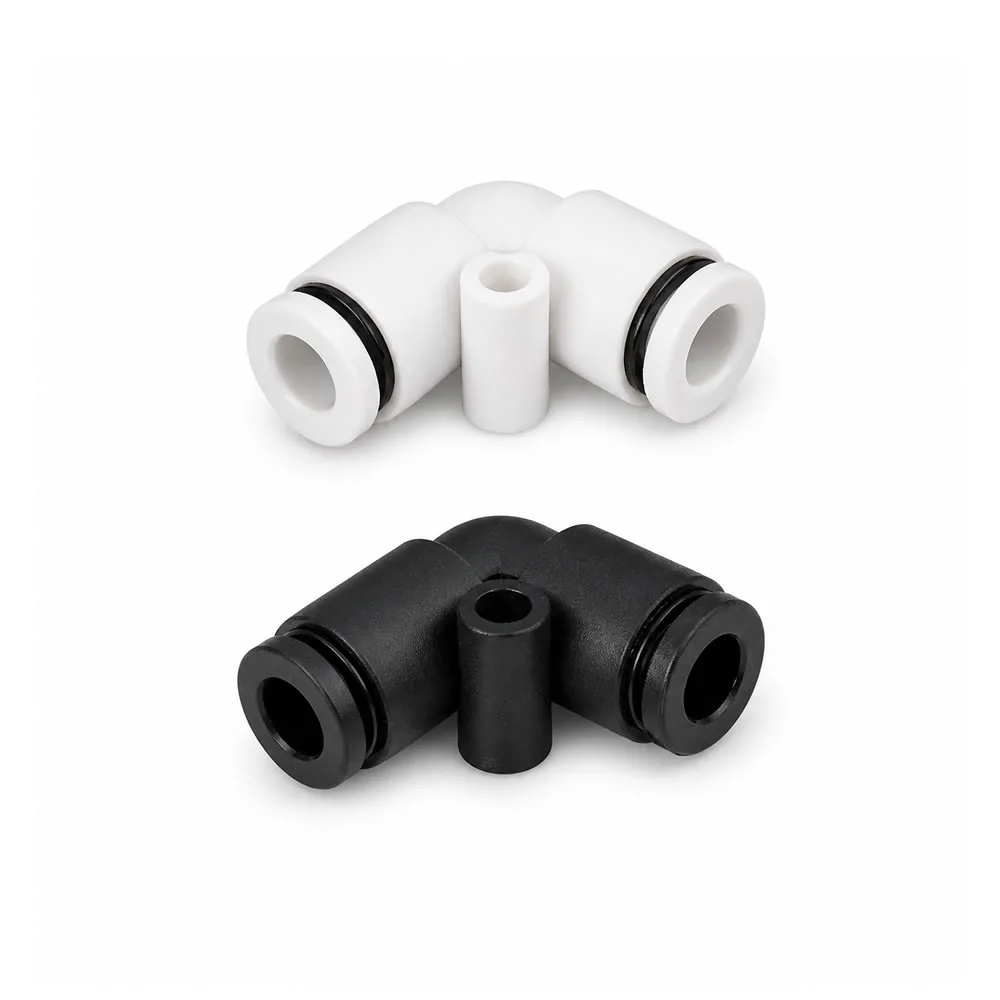

PV-C fittings are designed to connect pneumatic tubing while changing airflow direction by 90 degrees.
Compared to straight fittings such as POC-C, PV-C provides directional airflow control, making it suitable for angled installations.
Its compact structure makes it ideal for tight spaces and miniature pneumatic systems.
Product Structure & Size Range
- Models: PV-C4 / PV-C6 / PV-C8
- Tube sizes: 4mm / 6mm / 8mm
- Thread sizes: M5 / R1/8 / R1/4
- Mini 90° elbow structure
Why Choose Our Pneumatic Fittings
Professional PV-C pneumatic fitting manufacturer
OEM / ODM customization support
Reliable push-to-connect pneumatic connector
Compact solution for space-limited applications
Cost-effective alternative to metal fittings
Fast delivery and global B2B supply support
FAQ
Q1: What is a PV-C pneumatic fitting?
It is a mini elbow push-to-connect fitting used for compact tube connection and airflow direction change.
Q2: What is the PV-C fitting used for?
It is used to connect pneumatic tubing while redirecting airflow in compact systems.
Q3: What is the difference between PV-C and straight fittings?
PV-C is a 90-degree elbow fitting, while straight fittings allow direct inline connection.
Q4: What tubing is compatible with PV-C fittings?
PV-C fittings are compatible with PU tubing and nylon tubing.
Q5: Can PV-C fittings be customized?
Yes, OEM/ODM customization is available for tube size, thread type, and materials.
