Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | Mini Male Elbow |
| Connection | Tube to Thread |
| Thread Type | M3 / M5 / R1/8 |
| Material | Nickel-Plated Brass |
| Seal Type | O-Ring Seal |
| Operating Fluid | Air, Vacuum, Water (No Freezing) |
| Proof Pressure | 1.32 MPa |
| Max. Operating Pressure | 0 – 0.9 MPa |
| Temperature Range | 0 – 60°C |
| Lock Claw | Stainless Steel SUS |
| Applicable Tubing | PU / Nylon Tube |

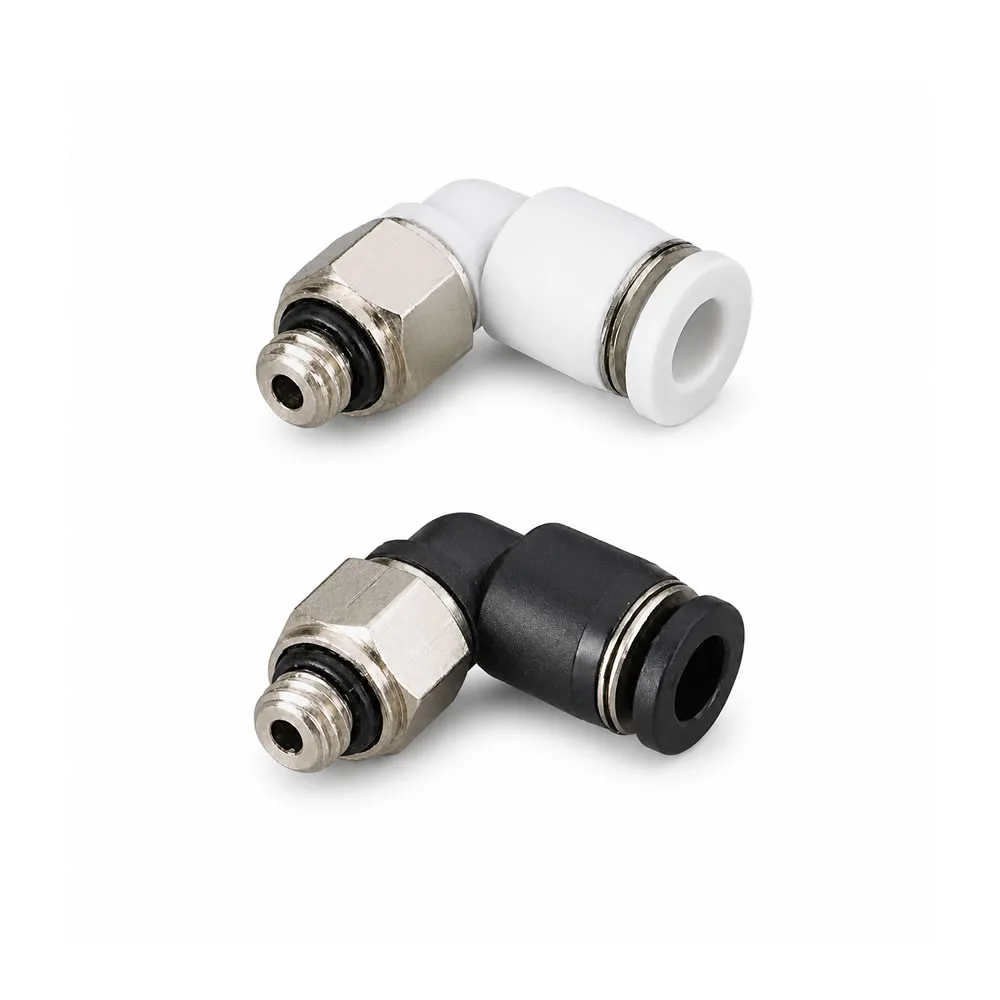

Nickel-plated brass mini male elbow fittings with O-ring sealing provide compact installation, stable sealing, and long service life in pneumatic systems.

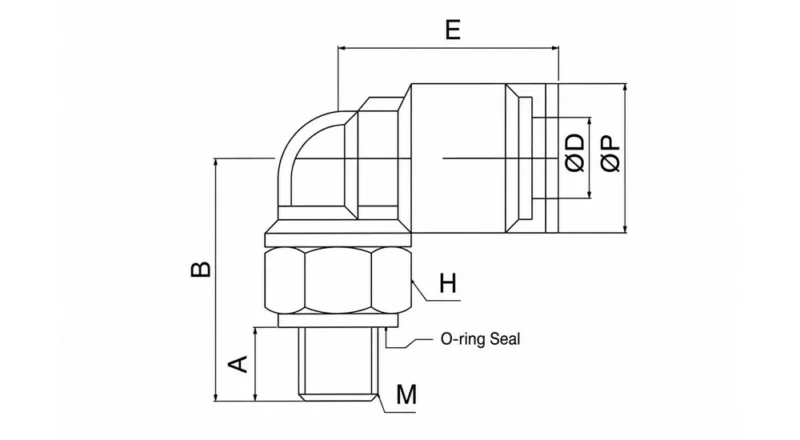

| Model | ΦD | B | E | M | A | H | ΦP |
| PL-C4-M3 | 4 | 15 | 14.5 | M3 | 3.5 | 8 | 8.5 |
| PL-C4-M5 | 4 | 15 | 14.5 | M5 | 3.5 | 8 | 8.5 |
| PL-C4-01 | 4 | 15 | 14.5 | R1/8 | 7 | 10 | 8.5 |
| PL-C6-M3 | 6 | 15.5 | 16 | M3 | 3.5 | 8 | 10.5 |
| PL-C6-M5 | 6 | 15.5 | 16 | M5 | 3.5 | 8 | 10.5 |
| PL-C6-01 | 6 | 15.5 | 16 | R1/8 | 7 | 10 | 10.5 |
Key Features
Mini compact elbow design
90° airflow direction change
Threaded male connection with O-ring seal
Nickel-plated brass body for corrosion resistance
Push-to-connect quick tube installation
Suitable for compact pneumatic equipment
Applications
Pneumatic control systems
Used for compact air tube routing and direction change
Industrial automation equipment
Suitable for small actuators, valves, and machinery connections
Air distribution systems
Helps organize tubing in limited installation spaces
Compact machinery equipment
Ideal for narrow spaces requiring threaded elbow connection
Vacuum and pneumatic circuits
Supports reliable sealing for air and vacuum applications
Widely used in pneumatic systems requiring compact threaded elbow fittings with O-ring sealing and quick tube connection.
Product Function
PL-C fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees.
Compared with standard PL fittings, PL-C is a mini-type elbow fitting, making it more suitable for compact equipment, small valves, and tight installation spaces.
The O-ring seal improves sealing reliability and helps reduce air leakage at the threaded connection.
Product Structure & Size Range
PL-C4-M3 / PL-C4-M5 / PL-C4-01
PL-C6-M3 / PL-C6-M5 / PL-C6-01
Tube sizes: 4mm / 6mm
Thread sizes: M3 / M5 / R1/8
Mini 90° male elbow structure
Threaded connection with O-ring seal
Why Choose Our Pneumatic Fittings
Professional PL-C pneumatic fitting manufacturer
OEM / ODM customization for mini nickel plated brass elbow fittings
Reliable O-ring pneumatic fitting for leak-resistant connection
Compact male elbow connector for automation systems
Durable nickel plated brass fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a PL-C pneumatic fitting?
It is a mini nickel-plated brass male elbow push-to-connect fitting with an O-ring seal for compact pneumatic tube connection.
Q2: What is the PL-C fitting used for?
It is used to connect tubing to threaded ports while changing airflow direction by 90 degrees.
Q3: What is the difference between PL and PL-C fittings?
PL is a standard male elbow fitting, while PL-C is a mini type designed for compact installation spaces.
Q4: Does PL-C have an O-ring seal?
Yes, PL-C fittings use an O-ring seal to improve threaded connection sealing performance.
Q5: What tubing is compatible with PL-C fittings?
PL-C fittings are suitable for PU tubing and nylon tubing.
Q6: Can PL-C fittings be customized?
Yes, OEM/ODM customization is available for tube size, thread size, material, and branding.
