Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-PV |
| Structure | Adjustable Elbow (90°) |
| Connection | Tube to Thread |
| Installation | Quick-Tight |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

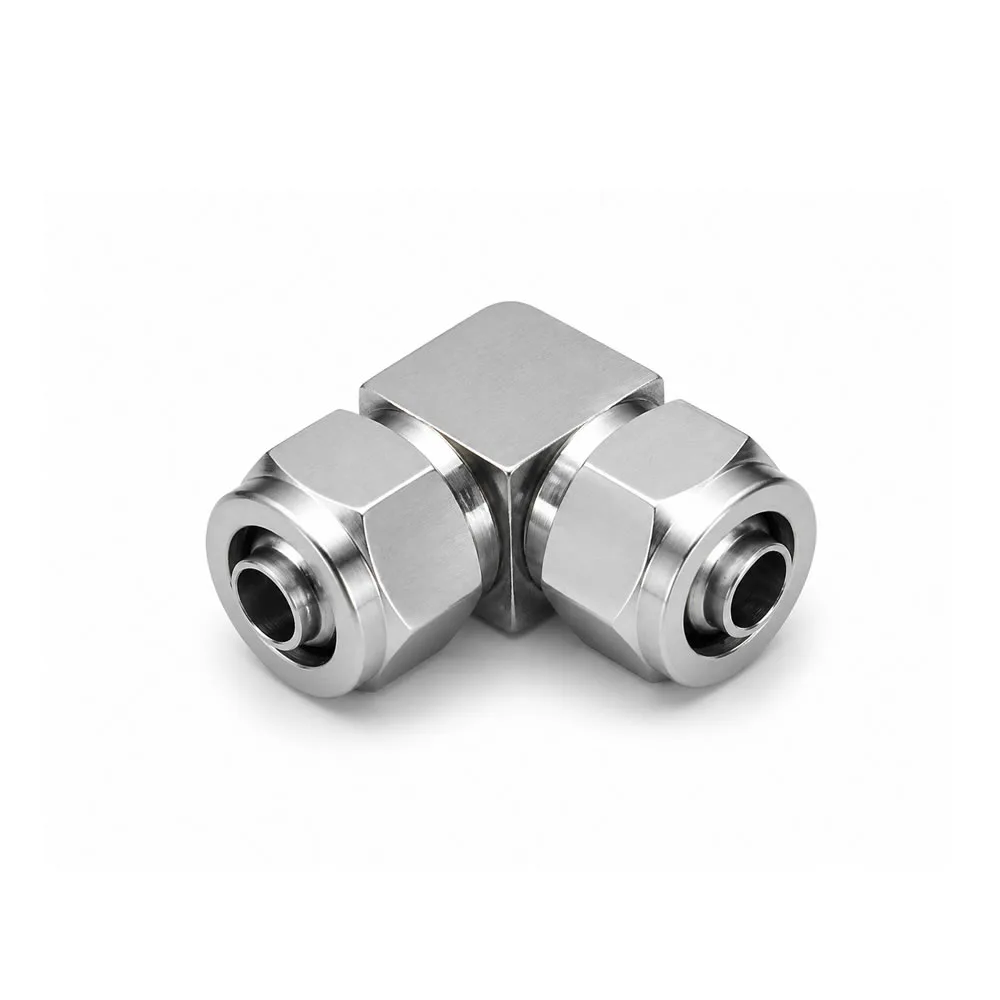

Nickel-plated brass adjustable elbow pneumatic fittings provide corrosion resistance and flexible installation in air systems.
Model: Model: (Example KL-PV4)
| 4 |
| 6 |
| 8 |
| 10 |
| 12 |
| 14 |
| 16 |
Key Features
Quick-tight installation design
Adjustable 90° elbow structure
Rotatable direction after installation
Nickel-plated brass for corrosion resistance
Fast installation without tools
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for adjustable direction tube routing
Industrial automation equipment
Improves flexibility in machine piping layouts
Air distribution systems
Ensures efficient airflow with adjustable direction
Machinery equipment piping
Ideal for confined and complex installations
Maintenance and alignment scenarios
Allows easy repositioning after installation
Product Function
KL-PV fittings are designed to connect pneumatic tubing to threaded ports while allowing post-installation angle adjustment, enabling more flexible and precise system layout.
Compared to standard elbow fittings (KL-PL), KL-PV provides adjustable orientation, reducing installation errors and improving alignment efficiency.
Product Structure & Size Range
KL-PV4 / KL-PV6 / KL-PV8 / KL-PV10 / KL-PV12
Thread types: M5 / G / R / NPT
Tube sizes: 4mm → 12mm
Adjustable elbow design
Quick-tight locking mechanism
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for adjustable quick-tight fittings
Flexible installation solution for automation systems
Reliable nickel plated brass pneumatic connectors
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-PV pneumatic fitting?
It is an adjustable elbow quick-tight pneumatic fitting used for flexible tube routing and direction adjustment.
Q2: What is the advantage of an adjustable elbow fitting?
It allows rotation after installation, making alignment easier in complex systems.
Q3: What is the difference between KL-PL and KL-PV?
KL-PL is a fixed 90° elbow, while KL-PV allows adjustable direction after installation.
Q4: What tubing is compatible with KL-PV fittings?
KL-PV fittings are suitable for PU tubing and nylon tubing.
Q5: Can KL-PV fittings be customized?
Yes, OEM and ODM customization is available for sizes and thread types.
