Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-PL |
| Structure | Elbow (90°) |
| Connection | Tube to Thread |
| Installation | Quick-Tight |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Nickel-plated brass elbow quick-tight pneumatic fittings provide corrosion resistance and stable sealing performance in compressed air systems.
Model: (Example KL-PL4-M5)
| 4-M5 | 6-03 | 10-02 | 14-04 |
| 4-M6 | 6-04 | 10-03 | 16-02 |
| 4-01 | 8-01 | 10-04 | 16-04 |
| 4-02 | 8-02 | 12-01 | 16-06 |
| 6-M5 | 8-03 | 12-02 | |
| 6-01 | 8-04 | 12-03 | |
| 6-02 | 10-01 | 12-04 |
Key Features
Quick-tight installation design
90° elbow structure for direction change
Nickel-plated brass for corrosion resistance
Strong mechanical strength and durability
Fast installation without tools
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for tube routing with direction change in compact layouts
Industrial automation equipment
Improves installation efficiency in machinery systems
Air distribution systems
Ensures stable airflow connection with directional control
Machinery equipment piping
Suitable for space-constrained installations
Maintenance and replacement scenarios
Ideal for quick installation and adjustment
Product Function

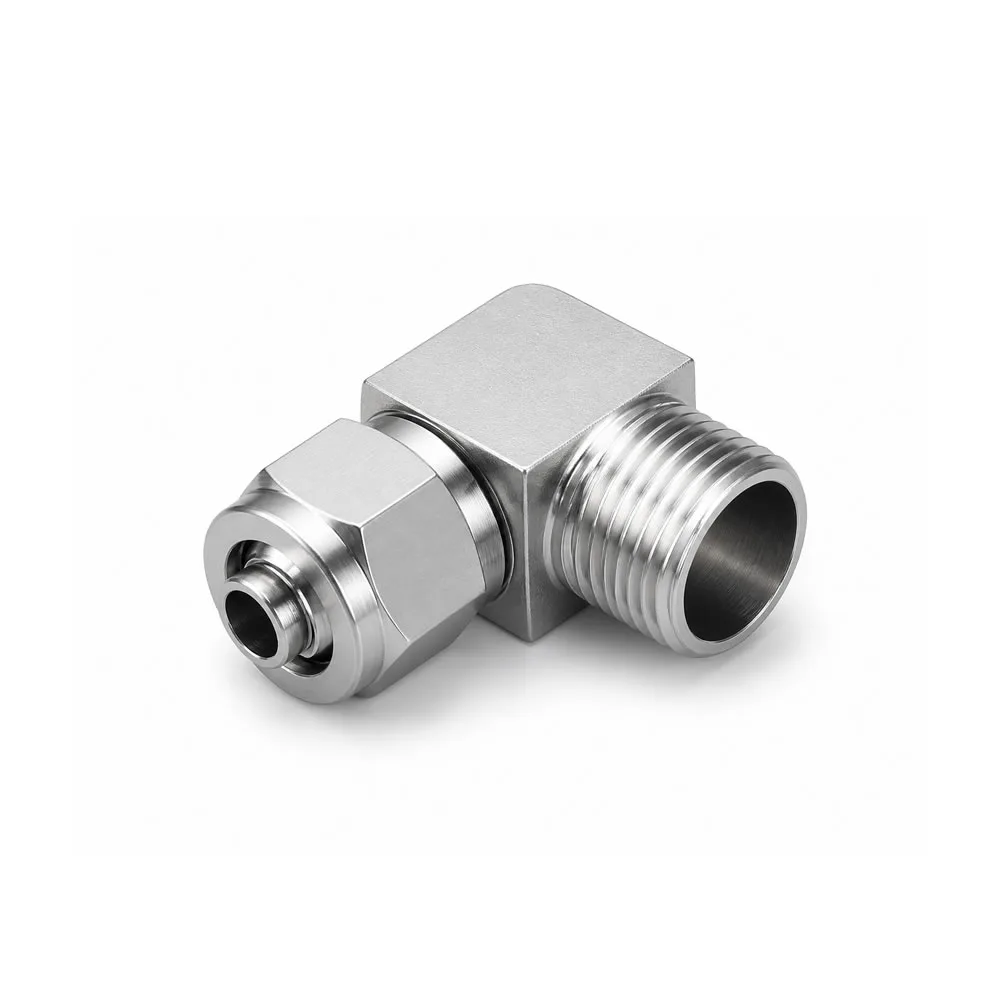

KL-PL fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees, enabling more flexible system layout.
Compared to straight fittings (KL-PC), KL-PL provides directional routing capability, reducing tube bending and improving installation efficiency.
Product Structure & Size Range
KL-PL4 / KL-PL6 / KL-PL8 / KL-PL10 / KL-PL12
Thread types: M5 / G / R / NPT
Tube sizes: 4mm → 12mm
90° elbow design
Quick-tight locking structure
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for quick-tight pneumatic fittings
High-efficiency elbow connector for automation systems
Reliable nickel plated brass pneumatic connectors
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-PL pneumatic fitting?
It is a 90-degree elbow quick-tight pneumatic fitting used for tube-to-thread connection with direction change.
Q2: What is the advantage of an elbow pneumatic fitting?
It allows airflow direction change, reducing tubing bending and improving layout efficiency.
Q3: What is the difference between KL-PC and KL-PL?
KL-PC is a straight fitting, while KL-PL is a 90° elbow fitting.
Q4: What tubing is compatible with KL-PL fittings?
KL-PL fittings are suitable for PU tubing and nylon tubing.
Q5: Can KL-PL fittings be customized?
Yes, OEM and ODM customization is available for thread types, sizes, and branding.
