Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-PM |
| Structure | Bulkhead Straight |
| Connection | Tube to Thread |
| Installation | Quick-Tight (Panel Mount) |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Bulkhead quick-tight pneumatic fittings provide secure panel mounting and reliable sealing in air systems.
Model: Model: (Example KL-PM4-M5)
| 4-M5 | 6-03 | 10-02 | 14-04 |
| 4-M6 | 6-04 | 10-03 | 16-02 |
| 4-01 | 8-01 | 10-04 | 16-04 |
| 4-02 | 8-02 | 12-01 | 16-06 |
| 6-M5 | 8-03 | 12-02 | |
| 6-01 | 8-04 | 12-03 | |
| 6-02 | 10-01 | 12-04 |
Key Features
Bulkhead panel-mount design
Straight through connection
Quick-tight installation structure
Nickel-plated brass for corrosion resistance
Strong mechanical strength and durability
Stable and leak-resistant sealing
Applications
Pneumatic control panels
Used for tube routing through panels
Industrial automation equipment
Provides stable panel-mounted connections
Air distribution systems
Ensures organized tube routing
Machinery equipment enclosures
Ideal for enclosed pneumatic layouts
Panel-mounted air routing
Improves system structure and organization
Product Function

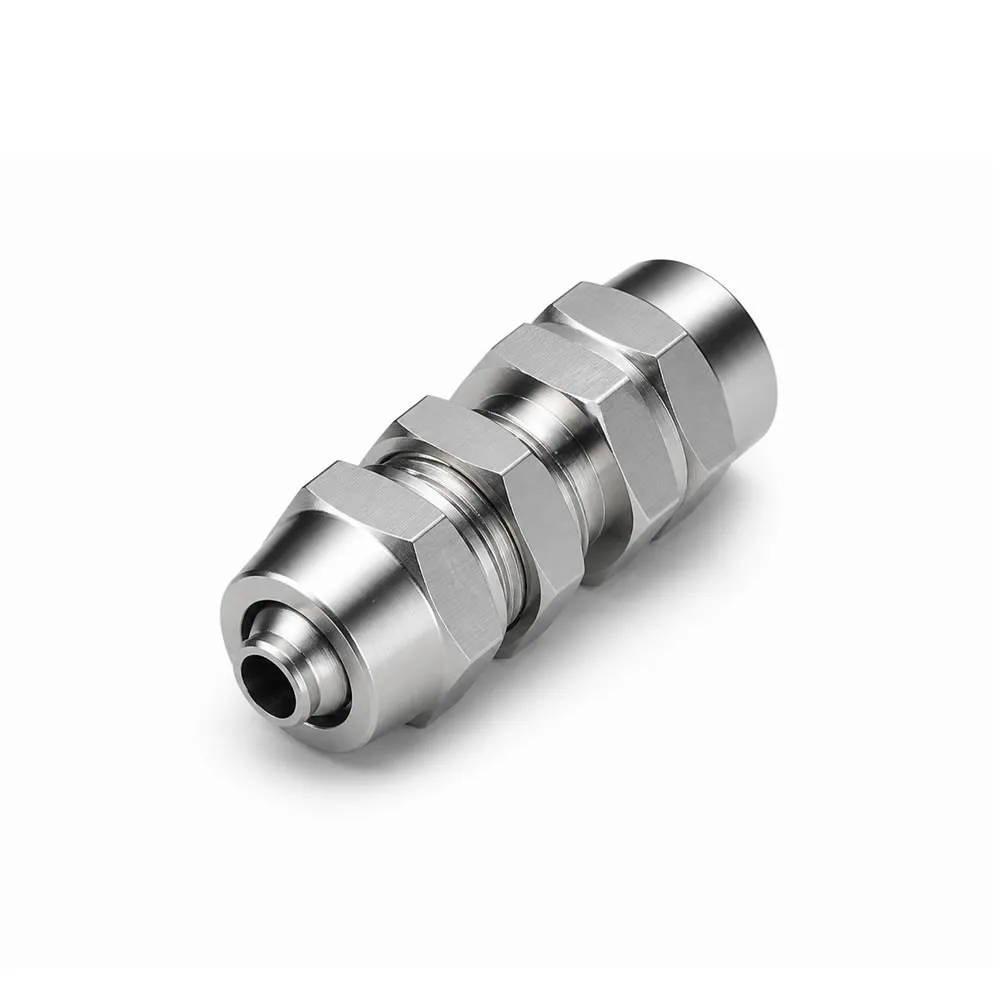

KL-PM fittings are designed to route pneumatic tubing through panels while maintaining a straight airflow path, enabling clean and organized system layouts.
Compared to standard straight fittings, KL-PM provides panel mounting capability, making it essential for installations requiring secure pass-through connections.
Product Structure & Size Range
KL-PM4 / KL-PM6 / KL-PM8 / KL-PM10 / KL-PM12
Thread types: M5 / G / R / NPT
Tube sizes: 4mm → 12mm
Bulkhead mounting with lock nut
Straight-through design
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for bulkhead quick-tight fittings
Reliable panel mount pneumatic connectors
High-quality nickel plated brass fittings
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-PM pneumatic fitting?
It is a bulkhead straight quick-tight pneumatic fitting used for panel-mounted tube connections.
Q2: What is a bulkhead pneumatic fitting used for?
It allows tubing to pass through panels while maintaining a sealed connection.
Q3: What is the advantage of KL-PM fittings?
They provide both quick installation and secure panel mounting.
Q4: What tubing is compatible with KL-PM fittings?
KL-PM fittings are suitable for PU tubing and nylon tubing.
Q5: Can KL-PM fittings be customized?
Yes, OEM and ODM customization is available for sizes and thread types.
