Specifications
| Parameter | Specification |
|---|---|
| Product Name | Automatic Retractable Water Hose Reel |
| Product Type | Automatic rewind water hose reel |
| Conveyed Medium | Water |
| Working Pressure | 1 MPa / 10 bar |
| Housing Material | Engineering-grade ABS plastic |
| Hose Material | Rubber-plastic hose |
| Hose Size | 12 × 8 mm |
| Available Hose Lengths | 10 m, 12 m, 15 m |
| Retraction Method | Automatic spring rewind |
| Installation Type | Wall-mounted |
| Reference Dimensions | 320 mm horizontal dimension, 160 mm mounting bracket height |
| Typical Applications | Workshops, garages, wash stations, maintenance areas, gardens, and production facilities |
| Selection Checks | Confirm hose size, hose length, water pressure, connector type, inlet connection, and mounting position |
Model Selection and Dimensions
| Hose Size | Hose Length |
| 12 × 8 mm | 10 m |
| 12 × 8 mm | 12 m |
| 12 × 8 mm | 15 m |
Product Features
Automatic Spring Rewind
The internal spring mechanism retracts the water hose automatically after use, reducing manual winding and helping keep the working area organized.
Three Hose Length Options
The reel is available with 10 m, 12 m, and 15 m hose lengths, allowing users to select the required reach for different cleaning, washing, and water delivery applications.
12 × 8 mm Water Hose
The rubber-plastic hose provides a practical water passage for workshops, garages, wash areas, gardens, equipment cleaning, and general maintenance work.
Engineering-Grade ABS Housing
The enclosed ABS housing protects the hose and internal rewind mechanism while providing a lightweight structure for wall-mounted installation.
Wall-Mounted Space-Saving Design
The mounting bracket keeps the reel away from floors and workbenches, helping reduce loose hose, tangling, and obstruction around frequently used areas.
Convenient Water Access
Operators can pull out the required hose length for use and allow the reel to store the hose neatly when the cleaning or washing task is complete.
Applications
Workshop Cleaning
Provides convenient water access for cleaning workshop floors, equipment surfaces, work areas, and machinery exteriors.
Vehicle and Garage Washing
Suitable for vehicle washing, wheel cleaning, service bays, garages, and general maintenance areas.
Machinery Maintenance
Used for equipment washing, surface cleaning, maintenance preparation, and water delivery around industrial machinery.
Production Facilities
Can be installed near manufacturing, food-processing support areas, packaging lines, and maintenance stations that require organized water access.
Garden and Outdoor Use
Suitable for plant watering, outdoor cleaning, patio washing, and other general-purpose water delivery applications.
Why Choose HOMIPNEU
HOMIPNEU supplies retractable water hose reels, automatic air hose reels, power cord reels, pneumatic hoses, quick couplers, air blow guns, fittings, valves, cylinders, and air preparation components.
We help customers confirm the required hose diameter, hose length, working pressure, connector type, inlet specification, installation position, packaging, and order quantity.
Bulk supply, private-label packaging, export-ready cartons, and product selection support are available for distributors, equipment manufacturers, and industrial buyers.
FAQ
What is an automatic retractable water hose reel used for?
It provides organized water access for workshops, garages, wash stations, machinery maintenance, gardens, and production facilities.
What hose size is supplied?
The listed hose size is 12 × 8 mm.
What hose lengths are available?
The available hose lengths are 10 m, 12 m, and 15 m.
What is the working pressure?
The specified working pressure is 1 MPa, equivalent to approximately 10 bar.
What material is used for the hose?
The listed hose material is a rubber-plastic hose designed for water delivery.
What material is used for the housing?
The protective reel housing is made from engineering-grade ABS plastic.
Does the hose retract automatically?
Yes. The internal spring rewind mechanism retracts and stores the hose after use.
Can the reel be installed on a wall?
Yes. The product includes a mounting bracket suitable for installation on an appropriate wall or support structure.
What are the reference dimensions?

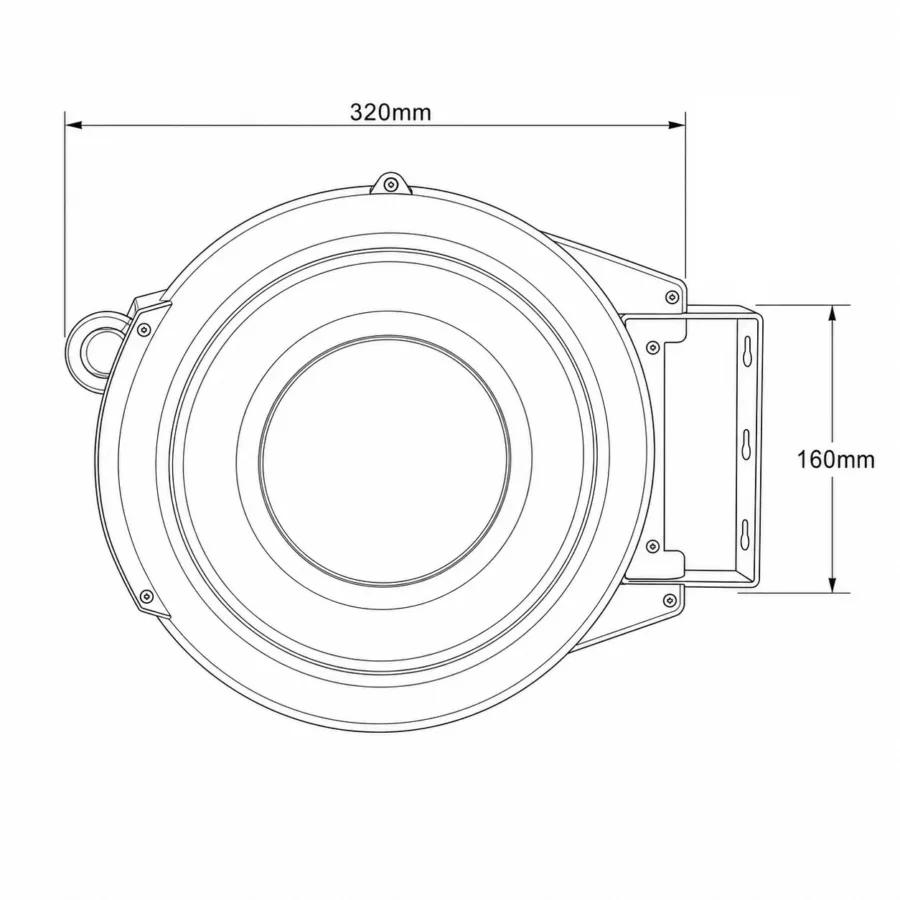

The supplied dimension drawing shows a 320 mm horizontal dimension and a 160 mm mounting bracket height.
What should be confirmed before ordering?
Confirm the hose size, hose length, water pressure, inlet connection, outlet connector, mounting position, quantity, and packaging requirements.
Customization & Supply Support
HOMIPNEU supports hose length selection, connector configuration, inlet connection matching, product labeling, packaging design, and bulk production for retractable water hose reels. Customers can provide the required hose size, length, pressure, fitting standard, mounting method, quantity, and application details for accurate selection and quotation.
