Specifications
| Item | Specification |
|---|---|

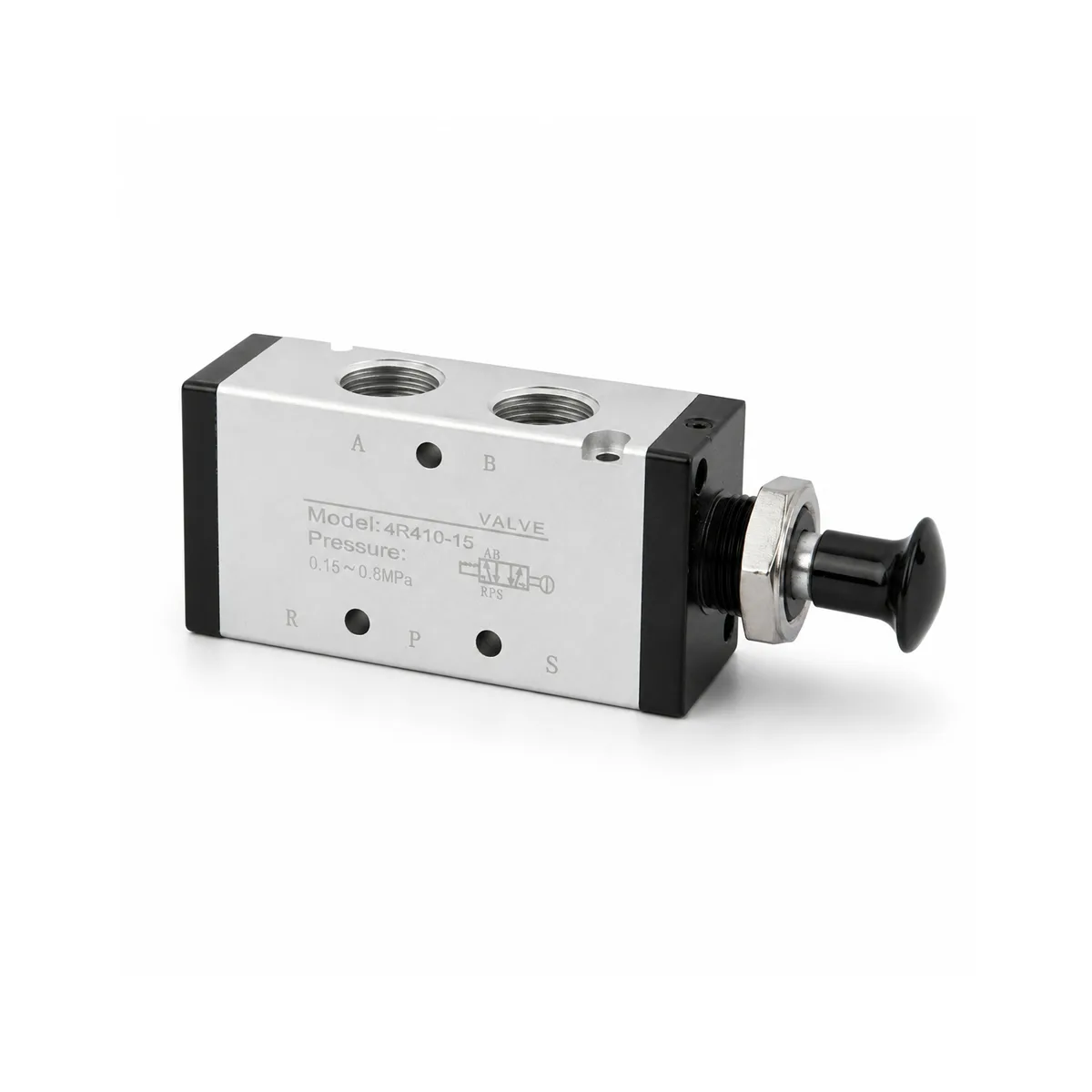

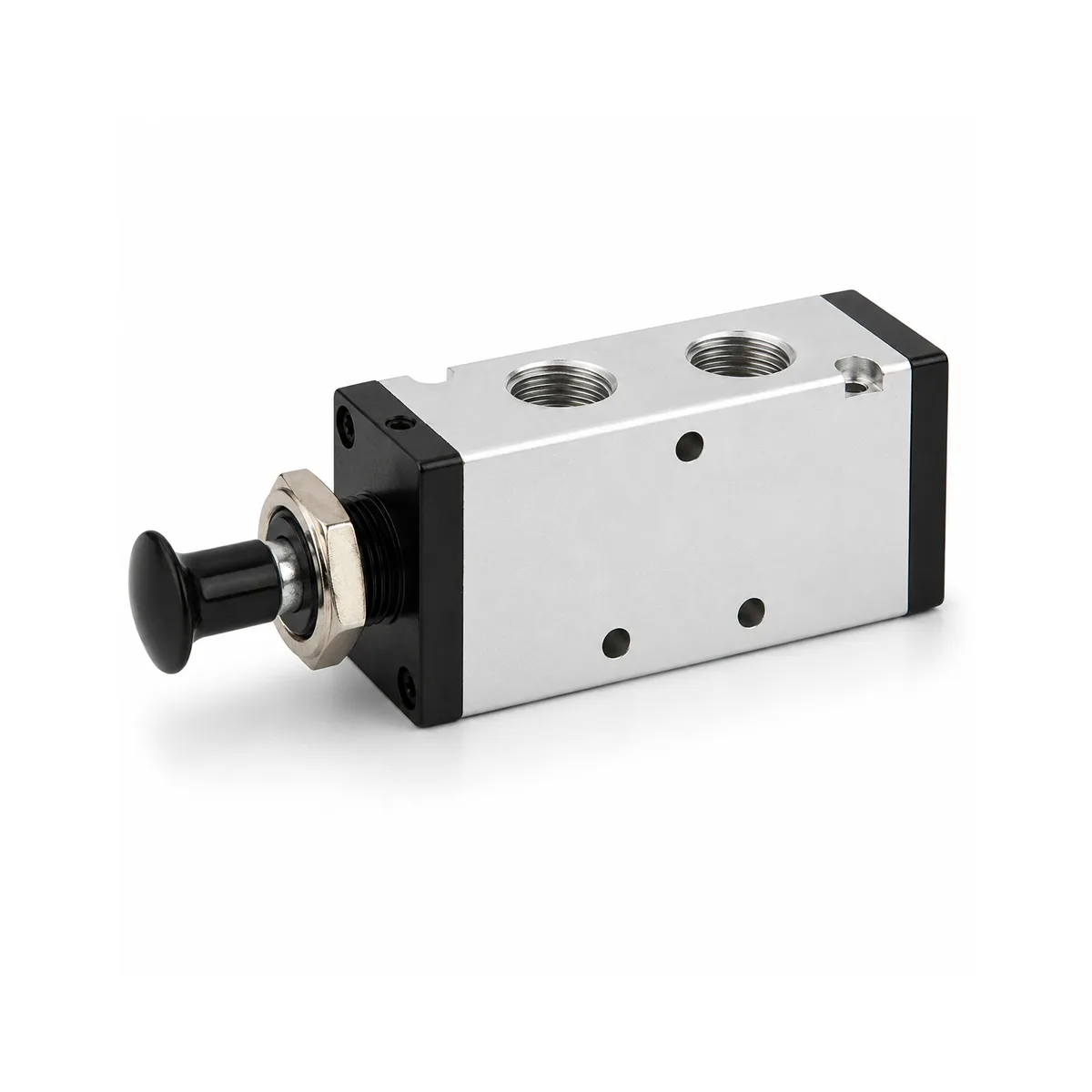

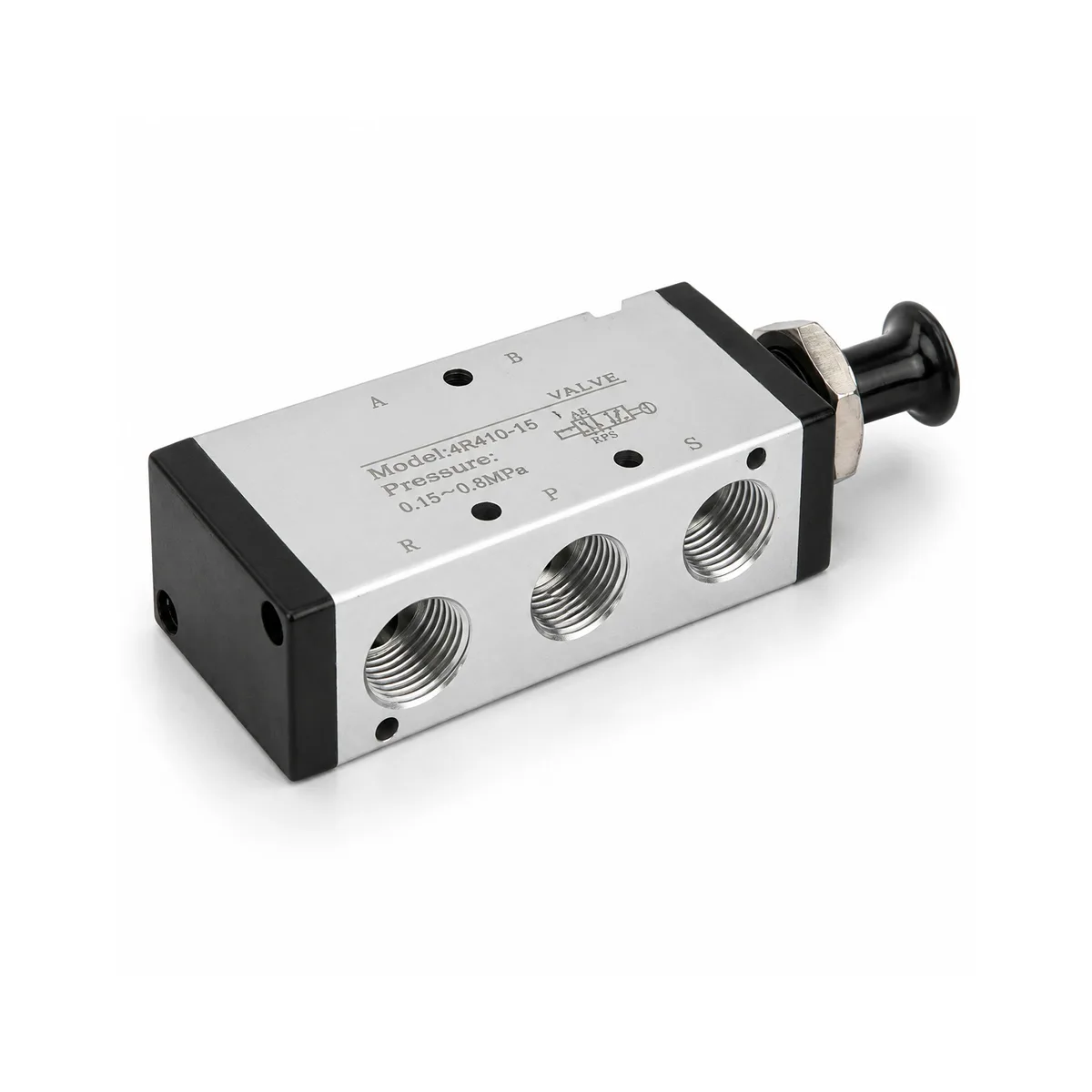

| Model | 4R410-15 |
| Valve Type | Hand Pull Pneumatic Valve |
| Function | 5/2 Way |
| Control Type | Manual Push-Pull / Hand Draw Operation |
| Series | 4R Series |
| Port Size | 1/2″ |
| Working Medium | Filtered Compressed Air |
| Operation Type | Manual Directional Control |
| Body Material | Aluminum Alloy |
| Working Pressure | 0.15–0.8MPa |
| Proof Pressure | 1.2MPa |
| Working Temperature | -20°C to 70°C |
| Structure | Sliding Spool Structure |
| Lubrication | Not required |
| Mounting Type | Threaded Connection / Panel Mounting |
| Main Application | Pneumatic cylinder, actuator, fixture and manual air direction control |
Product Features
Manual Push-Pull Operation
The 4R410-15 pneumatic valve uses manual push-pull operation for simple and direct air direction control. It is suitable for applications where operators need to manually switch pneumatic cylinders, actuators, or fixtures.
5/2 Way Directional Control
With a 5-port, 2-position structure, the 4R410-15 can control the forward and backward movement of double-acting pneumatic cylinders and actuators.
1/2 Port for Larger Airflow Demand
The 1/2 port size provides higher airflow capacity than smaller manual valves, making it suitable for larger pneumatic cylinders or equipment that requires stronger air delivery.
Durable Aluminum Alloy Body
The aluminum alloy valve body provides good strength, light weight, and stable performance in general industrial pneumatic environments.
Sliding Spool Structure
The spool structure supports smooth manual switching, good sealing performance, and reliable airflow control during repeated operation.
No Electrical Control Required
Unlike solenoid valves, the 4R410-15 does not require a coil or electrical signal. It is useful for manual workstations, testing equipment, maintenance circuits, and simple pneumatic control systems.
Easy Installation and Maintenance
The threaded port design makes installation straightforward. The manual lever structure also helps operators quickly check system movement during setup or maintenance.
Suitable for Manual Cylinder Control Systems
The 4R410-15 is a practical option for pneumatic systems that require manual control of double-acting cylinders, clamping devices, lifting mechanisms, and actuator movement.
Applications
The 4R410-15 hand pull pneumatic valve is widely used in manual pneumatic control systems, double-acting cylinder control, pneumatic clamps, lifting equipment, fixture control, testing machines, assembly stations, packaging machinery, and maintenance air circuits.
It is especially suitable for applications where pneumatic movement needs to be controlled directly by an operator without electrical wiring or PLC signal control.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic manual valves, solenoid valves, cylinders, fittings, and air source treatment components for industrial automation systems. The 4R410-15 hand pull pneumatic valve is designed for stable manual switching, easy installation, and reliable air direction control in practical factory applications.
We support model selection, batch supply, packaging, labeling, and customized requirements for OEM machinery builders, pneumatic distributors, equipment maintenance users, and industrial automation suppliers.
FAQ
What is the 4R410-15 valve used for?
The 4R410-15 is mainly used for manual direction control of pneumatic cylinders, actuators, clamps, fixtures, and other compressed air devices.
Is 4R410-15 a solenoid valve?
No. The 4R410-15 is a manual hand pull pneumatic valve. It does not require a coil or electrical signal for operation.
Is the 4R410-15 a 5/2 way valve?
Yes. The 4R410-15 is a 5-port, 2-position valve suitable for controlling double-acting pneumatic cylinders.
What is the port size of 4R410-15?
The common port size is 1/2″, suitable for pneumatic systems that require larger airflow capacity.
Can 4R410-15 be used for double-acting cylinders?
Yes. Its 5/2 way structure makes it suitable for controlling the extension and retraction of double-acting cylinders.
Does the 4R410-15 need electricity?
No. It is manually operated, so it can be used in pneumatic systems where electrical control is not required.
Does the valve need lubrication?
In clean compressed air systems, additional lubrication is generally not required.
OEM & ODM Support
HOMIPNEU provides OEM & ODM support for pneumatic manual valves, including model selection, port options, packaging, labeling, and batch supply for machinery builders, pneumatic distributors, maintenance users, and industrial equipment suppliers.
