Specifications
| Item | Specification |
|---|---|
| Model | 4H410-15 |
| Valve Type | Hand Lever Pneumatic Valve |
| Function | 5/2 Way |
| Position and Port Number | 5 Port 2 Position |
| Control Type | Manual Hand Lever Operation |
| Series | 4H400 Series |
| Port Size | 1/2″ |
| Exhaust Port Size | 1/2″ |
| Working Medium | Filtered Compressed Air |
| Operation Type | Manual Directional Control |
| Body Material | Aluminum Alloy |
| Effective Sectional Area | 50mm² |
| CV Value | 2.79 |
| Working Pressure | 0.15–0.8MPa |
| Proof Pressure | 1.2MPa |
| Working Temperature | -20°C to 70°C |
| Structure | Sliding Spool Structure |
| Lubrication | Not required |
| Mounting Type | Threaded Connection / Panel Mounting |
| Compatible Series | Compatible with Airtac 4H400 Series |
| Main Application | Large pneumatic cylinder, actuator, fixture and manual air direction control |
Product Features

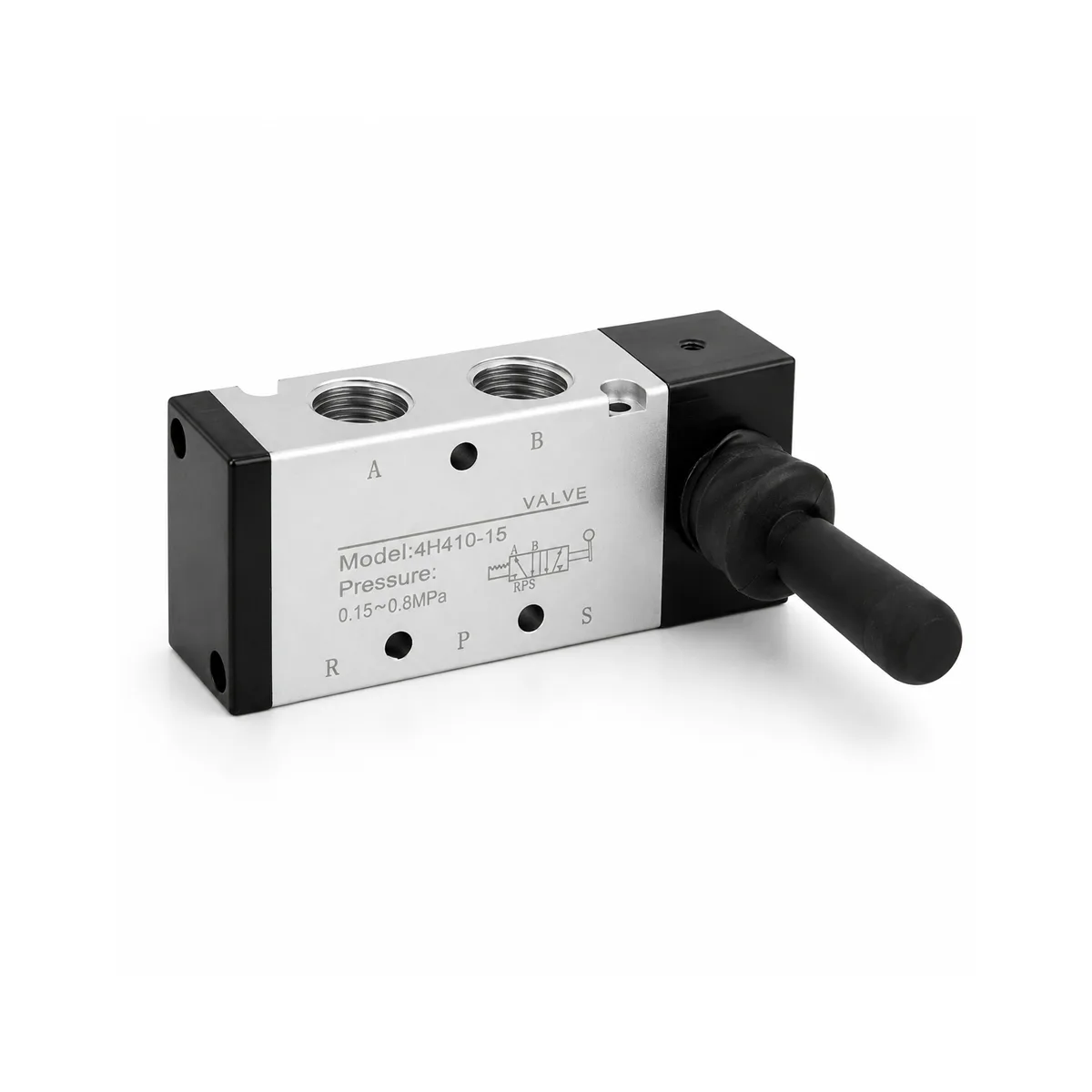

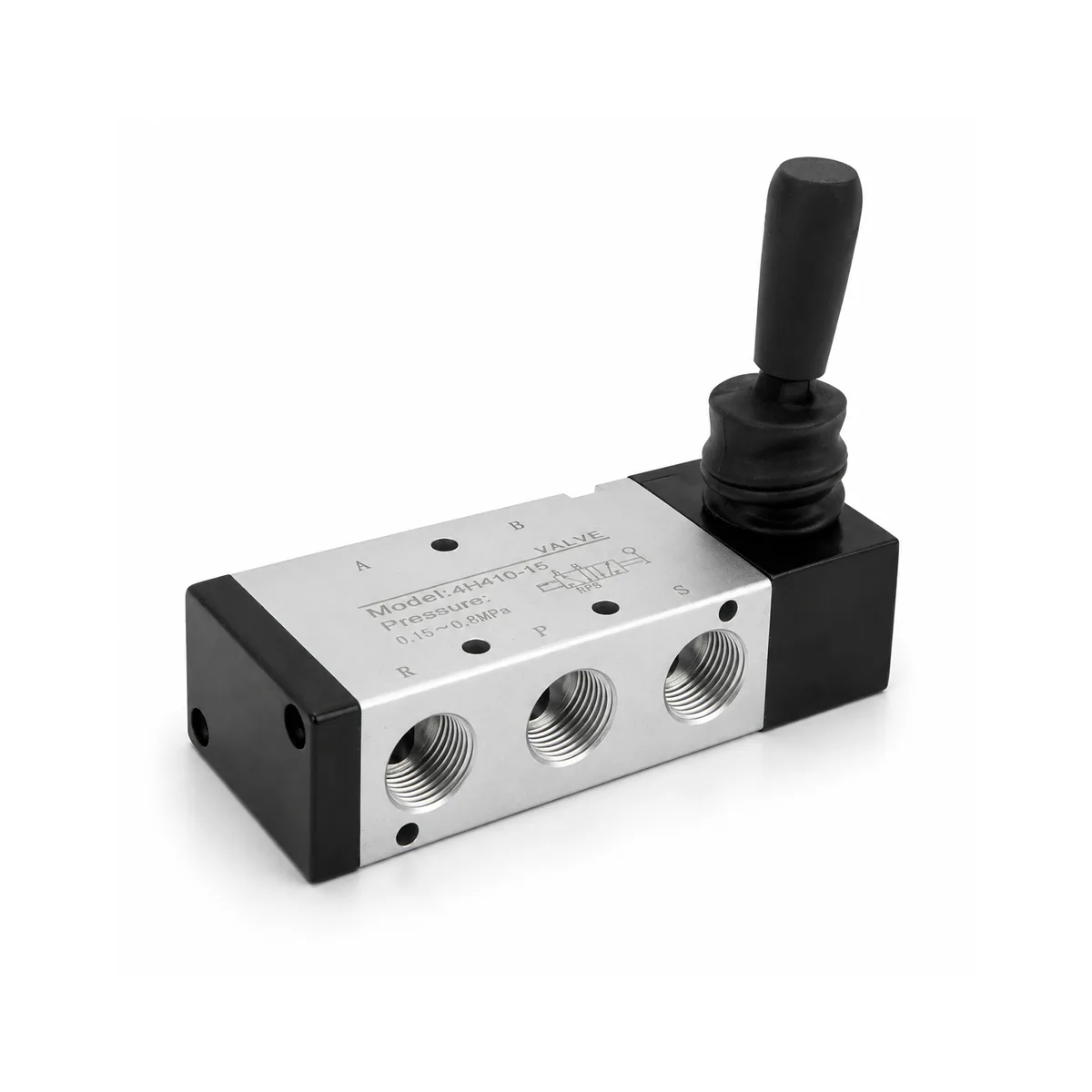

Manual Hand Lever Operation
The 4H410-15 pneumatic valve uses a hand lever structure for direct manual air direction control. Operators can switch the valve without electrical wiring, solenoid coils, or PLC output signals.
5/2 Way Directional Control
With a 5-port, 2-position structure, the 4H410-15 is suitable for controlling the extension and retraction of double-acting pneumatic cylinders and pneumatic actuators.
1/2 Port for High Airflow Demand
The 1/2″ port size provides larger airflow capacity than 1/4″ and 3/8″ manual valves, making the 4H410-15 suitable for larger cylinders, lifting mechanisms, clamping units, and industrial pneumatic equipment.
Direct Manual Control Without Electricity
Because the 4H410-15 is manually operated, it does not require a solenoid coil, voltage selection, or control wiring. It is practical for manual workstations, test equipment, maintenance circuits, and simple pneumatic control systems.
Durable Aluminum Alloy Body
The aluminum alloy body provides stable strength, light weight, and reliable performance in general factory compressed air environments.
Smooth Sliding Spool Structure
The internal sliding spool design supports smooth lever movement, stable sealing, and reliable air direction switching during repeated manual operation.
Easy Installation and Maintenance
The threaded port design supports straightforward installation. The hand lever structure also helps operators test cylinder movement quickly during machine setup, adjustment, or maintenance.
Ideal Replacement for Airtac 4H400 Series Applications
The 4H410-15 can be selected for pneumatic systems that require a 4H400 series type 5/2 way hand lever valve compatible with Airtac 4H400 Series installations.
Applications
The 4H410-15 hand lever pneumatic valve is widely used in manual pneumatic control systems, large double-acting cylinder control, pneumatic actuators, fixture control, clamping devices, lifting equipment, testing machines, assembly stations, packaging machinery, and maintenance air circuits.
It is especially suitable for applications where an operator needs to manually control higher-flow pneumatic movement without solenoid coils, electrical wiring, or PLC control signals.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic manual valves, solenoid valves, air pilot valves, cylinders, fittings, and air source treatment components for industrial automation systems. The 4H410-15 hand lever pneumatic valve is designed for stable manual switching, high airflow capacity, and reliable air direction control in practical factory applications.
We support model selection, port options, batch supply, packaging, labeling, and customized requirements for OEM machinery builders, pneumatic distributors, maintenance users, and industrial automation suppliers.
FAQ
What is the 4H410-15 hand lever pneumatic valve used for?
The 4H410-15 is mainly used for manual direction control of double-acting pneumatic cylinders, pneumatic actuators, fixtures, clamps, and other compressed air devices.
Is 4H410-15 a solenoid valve?
No. The 4H410-15 is a manually operated hand lever pneumatic valve. It does not require a coil or electrical signal.
Is the 4H410-15 a 5/2 way valve?
Yes. The 4H410-15 is a 5-port, 2-position pneumatic directional valve.
What is the port size of 4H410-15?
The standard port size is 1/2″, suitable for higher-flow pneumatic control systems.
Can 4H410-15 be used for double-acting cylinders?
Yes. Its 5/2 way structure makes it suitable for controlling the forward and backward movement of double-acting pneumatic cylinders.
What is the difference between 4H310-10 and 4H410-15?
Both are 4H Series hand lever pneumatic valves. The 4H310-10 commonly uses a 3/8″ port for medium-flow circuits, while the 4H410-15 uses a 1/2″ port for higher airflow demand.
Does the 4H410-15 need electricity?
No. It is manually operated and can be used in pneumatic systems where electrical control is not required.
Is this valve interchangeable with Airtac 4H400 Series?
The 4H410-15 is designed for 4H400 series type manual hand lever valve applications and can be selected for systems using Airtac 4H400 Series style valves.
