Specifications（Typical Range）
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Muffler Silencer |
| Model | SC Type |
| Function | Air Exhaust Noise Reduction |
| Connection | Threaded |
| Installation | Exhaust Port Mounting |
| Operating Fluid | Compressed Air |
| Application | Valves / Cylinders / Pneumatic Equipment |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Thread Size | M5 / 1/8 / 1/4 / 3/8 / 1/2 |

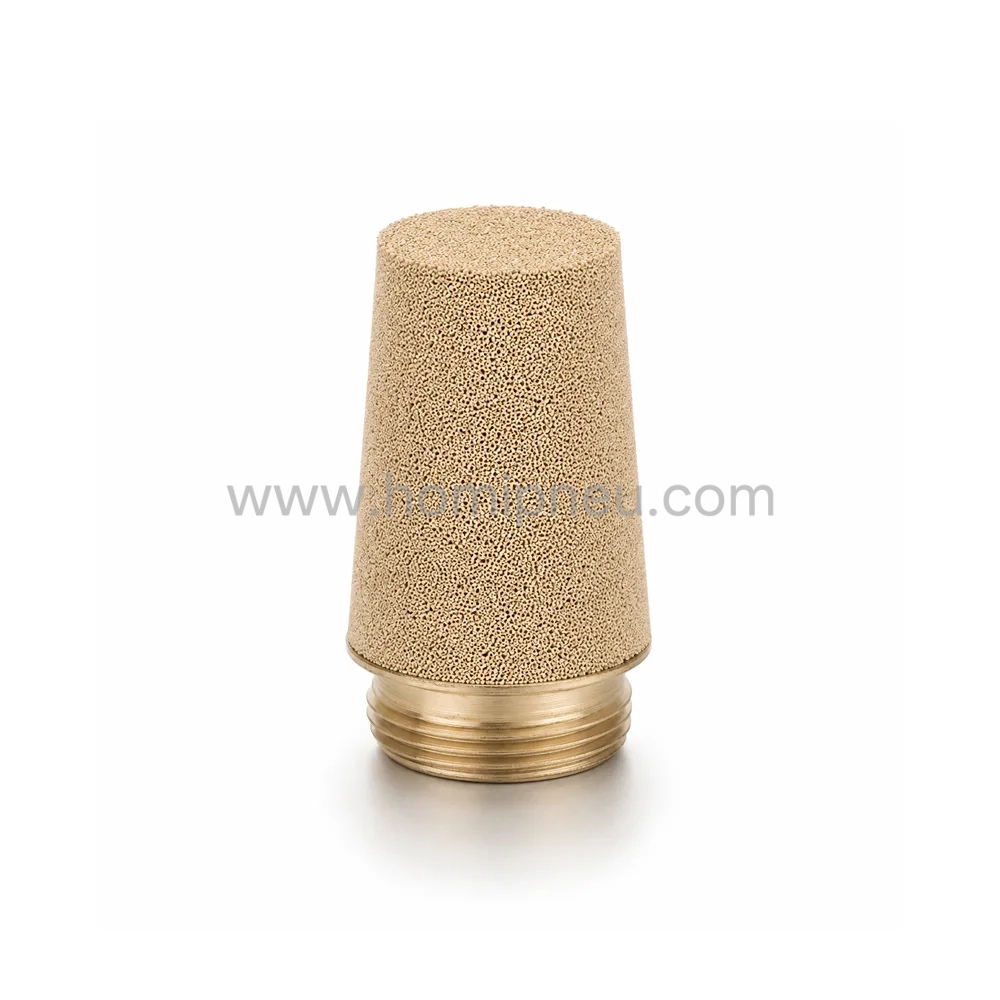

SC type pneumatic mufflers provide stable air exhaust, noise reduction, and protection for pneumatic exhaust ports.

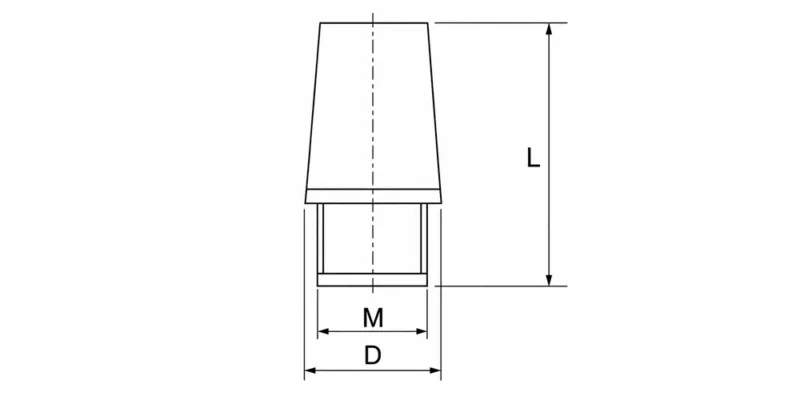

Dimension(mm)
| Model/M | L | D |
| 1/8 " | 21.5 | 11.5 |
| 1/4 " | 25.5 | 15 |
| 3/8 " | 36 | 17.5 |
| 1/2 " | 40.5 | 21.5 |
| 3/4 " | 47 | 28 |
| 1 " | 63 | 36 |
Key Features
Compact pneumatic muffler silencer design
Effective compressed air exhaust noise reduction
Threaded installation for easy mounting
Stable airflow discharge performance
Suitable for valves, cylinders, and air tools
Available in multiple thread sizes
Applications
Pneumatic solenoid valves
Used to reduce exhaust noise from valve ports.
Air cylinders
Helps control noise during cylinder exhaust operation.
Industrial automation systems
Suitable for compressed air control equipment.
Pneumatic machinery
Provides quieter air discharge in machinery systems.
Air tools and equipment
Used for exhaust silencing and port protection.
Product Function
SC type pneumatic muffler silencers are installed on pneumatic exhaust ports to reduce noise caused by compressed air discharge.
They allow air to exhaust smoothly while lowering operating noise and helping prevent dust or particles from entering the exhaust port.
Compared with open exhaust ports, SC mufflers provide a cleaner, quieter, and more controlled air release solution.
Product Structure & Size Range
SC-M5 / SC-01 / SC-02 / SC-03 / SC-04
Thread sizes: M5 / 1/8 / 1/4 / 3/8 / 1/2
Threaded mounting structure
Compact silencer body
Air exhaust noise reduction design
Why Choose Our Pneumatic Mufflers
Professional SC pneumatic muffler silencer manufacturer
OEM / ODM customization for pneumatic exhaust silencers
Reliable air exhaust noise reduction for automation systems
Multiple thread sizes for different pneumatic components
Stable quality for industrial compressed air applications
Fast delivery and global B2B supply support
FAQ
Q1: What is an SC type pneumatic muffler silencer?
It is a pneumatic exhaust silencer used to reduce noise from compressed air discharge.
Q2: Where is an SC pneumatic muffler installed?
It is usually installed on exhaust ports of solenoid valves, cylinders, and pneumatic equipment.
Q3: What does a pneumatic muffler do?
It reduces exhaust noise and helps control air discharge in pneumatic systems.
Q4: What thread sizes are available?
Common sizes include M5, 1/8, 1/4, 3/8, and 1/2.
Q5: Can SC pneumatic mufflers be customized?
Yes, OEM and ODM customization is available for thread size, material, structure, and branding.
