Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fitting |
| Structure | 5-Way (Five-Way Connector) |
| Connection | Tube to Thread |
| Thread Type | G (BSPP) |
| Seal Type | O-Ring Sealing |
| Material | Nickel-Plated Brass + Plastic |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

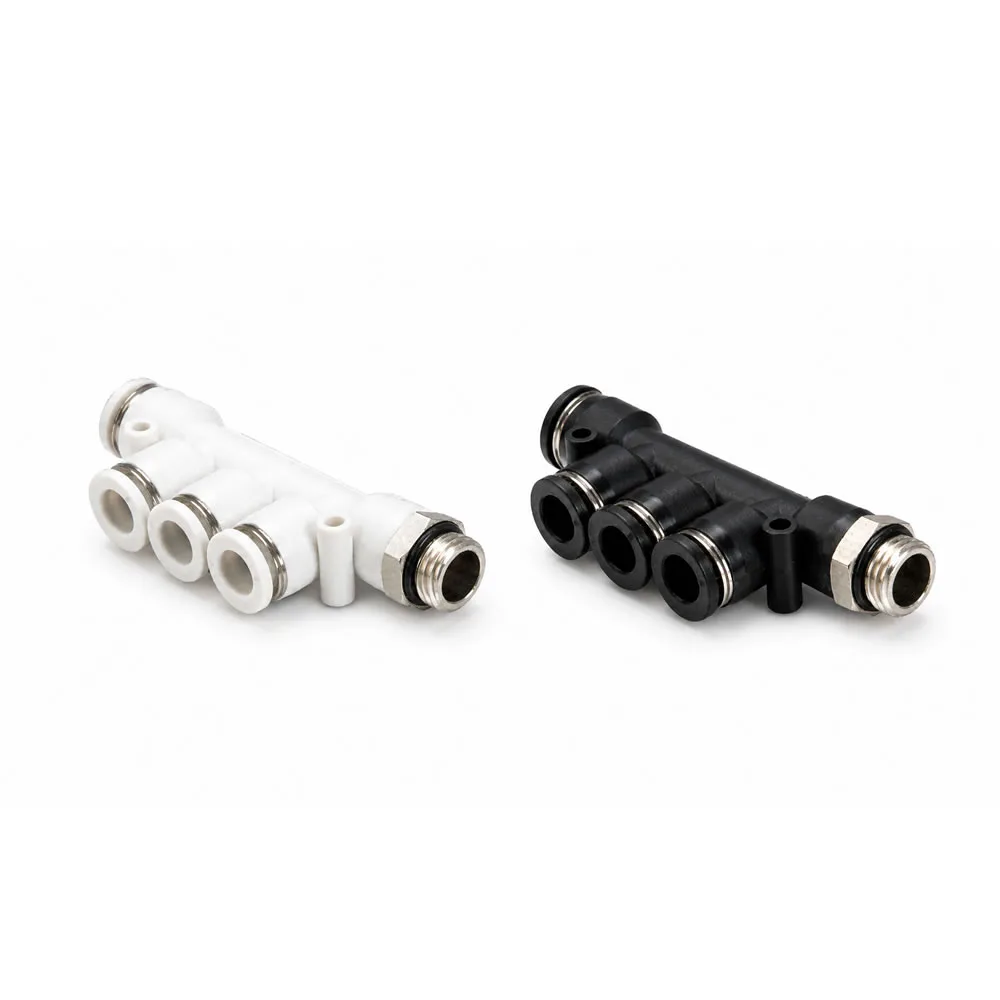

Nickel-plated brass 5-way pneumatic fittings provide excellent durability, corrosion resistance, and stable sealing performance in compressed air systems.

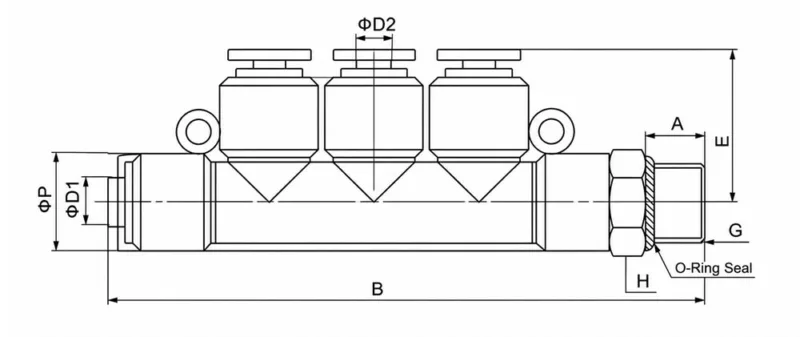

| Model | ΦD1 | ΦD2×3 | B | E | A | G | ΦP×4 | H |
| PKB6-4-G01 | 6 | 4 | 71 | 19 | 5.5 | G1/8 | 13 | 12 |
| PKB8-6-G01 | 8 | 6 | 80.5 | 21.5 | 6.5 | G1/8 | 15 | 14 |
| PKB8-6-G02 | 8 | 6 | 81.5 | 21.5 | 7.5 | G1/4 | 15 | 15 |
| PKB10-6-G03 | 10 | 6 | 93.5 | 25 | 7.5 | G3/8 | 18.5 | 19 |
| PKB10-8-G03 | 10 | 8 | 93.5 | 25 | 7.5 | G3/8 | 18.5 | 19 |
| PKB12-8-G04 | 12 | 8 | 108.5 | 26.5 | 9.5 | G1/2 | 21 | 24 |
| PKB12-10-G04 | 12 | 10 | 108.5 | 27.5 | 9.5 | G1/2 | 21 | 24 |
| PKB10-6-G02 | 10 | 6 | 92.5 | 25 | 6.5 | G1/4 | 18.5 | 17 |
| PKB10-08-G02 | 10 | 8 | 92.5 | 25 | 6.5 | G1/4 | 18.5 | 17 |
| PKB12-8-G03 | 12 | 8 | 106 | 26.5 | 7.5 | G3/8 | 21 | 19 |
| PKB12-10-G03 | 12 | 8 | 106 | 27.5 | 7.5 | G3/8 | 21 | 19 |
Key Features
- 5-way structure for multi-direction air distribution
- Nickel-plated brass for corrosion resistance and durability
- Built-in O-ring seal for leak-proof connection
- No PTFE tape required for threaded sealing
- Push-to-connect quick tube installation
- Strong and compact design for industrial use
Applications
Pneumatic air distribution systems
Used to distribute compressed air into multiple directions from one source
Industrial automation systems
Ensures reliable multi-line pneumatic connections
Machinery equipment
Improves piping efficiency and system organization
Compressed air systems
Provides stable and leak-free air connections
Compact pneumatic installations
Reduces fitting quantity and simplifies layout
Widely used in systems requiring multi-branch air distribution with reliable sealing and durable metal fittings.
Product Function
PKB-G fittings enable multi-direction air distribution from a single threaded inlet, simplifying pneumatic system design and reducing installation complexity.
The integrated O-ring ensures a tight seal at the threaded interface, while the push-to-connect structure allows fast tubing connection without tools.
Compared to standard fittings:
- PKB-G = 5-way distribution + threaded connection + O-ring sealing
- Tee fitting = 3-way distribution only
- Cross fitting = 4-way distribution only
Product Structure & Size Range
- Models: PKB-G4 / PKB-G6 / PKB-G8 / PKB-G10 / PKB-G12
- Tube sizes: 4mm → 16mm
- Thread sizes: G1/8 / G1/4 / G3/8 / G1/2
- 5-way push-to-connect structure
- O-ring sealed G-thread connection
Why Choose Our Pneumatic Fittings
- Professional PKB-G pneumatic fitting manufacturer
- OEM / ODM customization for nickel plated brass fittings
- Leak-proof O-ring pneumatic fittings for industrial systems
- Reliable 5-way pneumatic connector for air distribution
- Durable nickel plated brass construction for long-term use
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PKB-G pneumatic fitting?
It is a nickel-plated brass 5-way pneumatic fitting used to distribute compressed air into multiple directions from one threaded port.
Q2: What is the function of the O-ring in PKB-G fittings?
The O-ring provides a tight seal at the threaded connection, preventing air leakage and improving system reliability.
Q3: Do PKB-G fittings require PTFE tape?
No, the built-in O-ring eliminates the need for PTFE tape in most applications.
Q4: What is the advantage of a 5-way pneumatic fitting?
It reduces the number of connectors required and simplifies multi-branch air distribution systems.
Q5: What tubing is compatible with PKB-G fittings?
PKB-G fittings are compatible with PU tubing and nylon tubing.
