Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

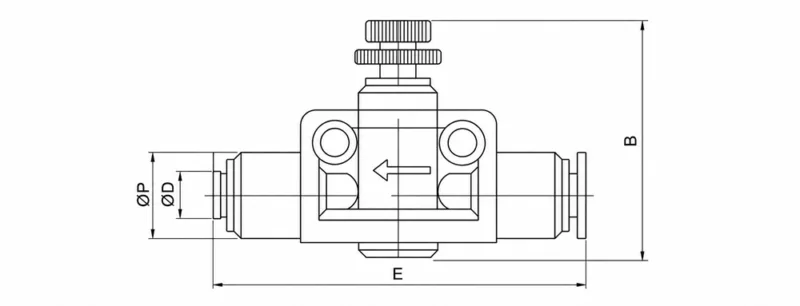

| Model | Φ D × 2 | E | B | Φ P ×2 |
| PA-4 | 4 | 39.5 | 29 | 11 |
| PA-6 | 6 | 46 | 39 | 13.5 |
| PA-8 | 8 | 50 | 39 | 16.5 |
| PA-10 | 10 | 60 | 45 | 19.5 |
| PA-12 | 12 | 63 | 47.5 | 21.5 |
Key Features
- Inline pipeline air valve design
- Direct installation into pneumatic tubing
- Manual airflow control or shut-off
- Compact structure for space saving
- Durable construction with reliable sealing
Applications
- Pneumatic automation systems
- Air distribution pipelines
- Industrial machinery
- Robotics systems
- Packaging and assembly equipment
Widely used in pneumatic systems requiring inline airflow control, simplified piping layout, and reliable air regulation.
Product Structure & Types
- Inline straight air valve
- Push-to-connect tube valve
- Manual control valve
- Available sizes: 4mm / 6mm / 8mm / 10mm / 12mm
👉 Pneumatic systems rely on valves to control airflow and system operation
Why Choose Our Pneumatic Valve
- Professional PA pneumatic valve manufacturer with full size range
- OEM / ODM customization for inline air control valve projects
- Reliable air pipe valve for pneumatic systems and automation equipment
- High-quality pneumatic valve factory China with strict QC system
- Durable inline pneumatic valve for stable airflow control applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PA pneumatic valve?
It is an inline air pipe valve used to control or shut off airflow in pneumatic systems.
Q2: What is an inline pneumatic valve used for?
It is used to regulate airflow directly inside pneumatic tubing without additional fittings.
Q3: Where is a pipeline air valve installed?
It is installed directly in the air line between tubes or pneumatic components.
Q4: What is the working medium of this valve?
It is designed for compressed air systems.
Q5: Can PA pneumatic valves be customized?
Yes, OEM/ODM customization is available for size, material, and connection type.
