Specifications
| Parameter | Specification |
|---|---|

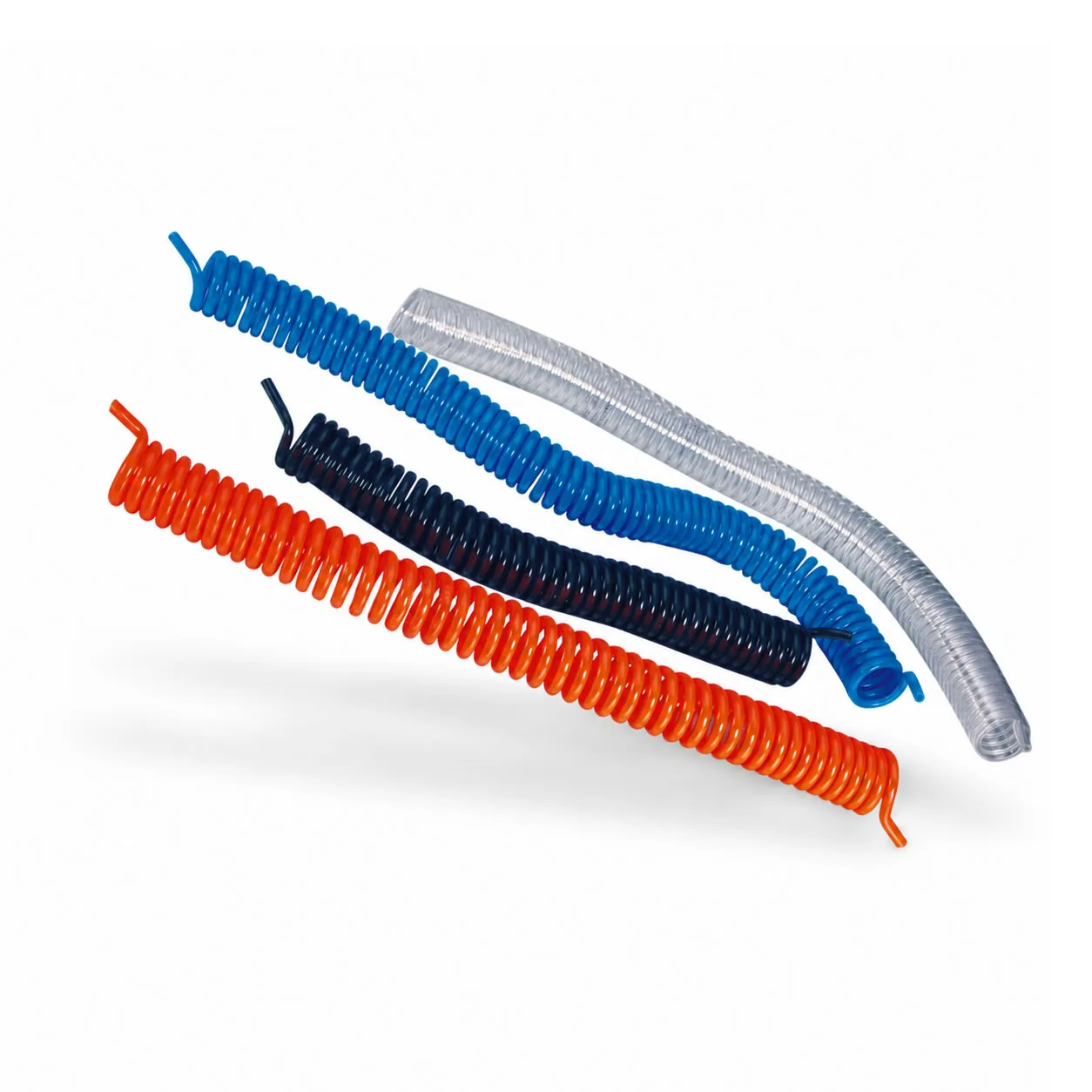

| Product Name | Pneumatic Recoil Air Hose |
| Product Structure | Coiled self-retracting tube |
| Working Medium | Compressed air |
| Working Pressure | 8 kgf/cm² |
| Burst Pressure | 30 kgf/cm² |
| Temperature Range | -10°C to +40°C |
| Available Colors | Gray, red, black, blue, green, yellow, orange, and white |
| Customizable Dimensions | Straight end A, straight end B, and coil diameter C |
| Typical Applications | Air tools, blow guns, assembly stations, workshops, and maintenance equipment |
| Selection Requirements | Confirm tube size, working length, color, connector type, pressure, and end dimensions |
Model Selection and Dimensions
| Tube Size | Weight | Available Lengths |
|---|---|---|
| Φ5 × 8 mm | 38 g/m | 6, 9, 12, 15 m |
| Φ6.5 × 10 mm | 55 g/m | 6, 9, 12 m |
| Φ8 × 12 mm | 75 g/m | 6, 9, 12 m |
| Φ10 × 14 mm | 83 g/m | 6, 9 m |
| Φ12 × 16 mm | 128 g/m | 6, 9 m |
Product Features
Self-Retracting Coiled Structure
The spiral structure extends when the operator moves away from the air supply and returns to a compact shape after release. This helps reduce loose hose on workbenches and workshop floors.
Multiple Tube Sizes
Five inner and outer diameter combinations are available to match different airflow requirements, pneumatic tools, hose fittings, and equipment layouts.
Flexible Working Length Options
Available lengths include 6, 9, 12, and 15 meters depending on the selected tube size, allowing users to choose an appropriate working range.
Space-Saving Hose Management
The coiled design keeps excess hose concentrated in a smaller area, making it suitable for assembly stations, workshops, garages, and maintenance work.
Custom Straight-End Dimensions
The straight sections at both ends and the coil diameter can be adjusted according to connection position, equipment structure, and customer installation requirements.
Multiple Color Options
Gray, red, black, blue, green, yellow, orange, and white options are available for equipment matching, production-line identification, or air circuit separation.
Suitable for Pneumatic Tools
The hose can provide a flexible compressed air connection for air blow guns, pneumatic screwdrivers, small air tools, maintenance equipment, and workshop air outlets.
Coiled pneumatic hoses are commonly used where the air connection must extend during operation and retract afterward to save space.
Applications
Air Blow Guns
Provides a flexible compressed air supply for dust removal, machine cleaning, chip blowing, drying, and workstation maintenance.
Pneumatic Assembly Tools
Suitable for pneumatic screwdrivers, small impact tools, staplers, and other handheld tools used at assembly stations.
Workshops and Garages
Used with air compressors and air outlets for vehicle maintenance, equipment cleaning, tire service, and general repair work.
Production Lines
Helps connect movable pneumatic tools while reducing excessive loose hose around operators and machinery.
Machinery Maintenance
Suitable for maintenance carts, repair stations, machine-side air outlets, and temporary compressed air connections.
Laboratory and Testing Equipment
Can be used where a compact, flexible, and retractable compressed air connection is required.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic recoil hoses, straight pneumatic tubing, air blow guns, quick couplers, pneumatic fittings, air preparation units, solenoid valves, cylinders, and related compressed air components.
We help customers confirm tube dimensions, operating length, pressure requirements, hose color, connector type, end length, and installation position before ordering.
Bulk supply, export packaging, private labeling, custom colors, and special dimension requirements are available for distributors and industrial equipment manufacturers.
FAQ
What is a pneumatic recoil air hose?
It is a spiral-shaped compressed air hose that stretches during use and retracts toward its original coiled shape after release.
What tube sizes are available?
The listed sizes are Φ5 × 8 mm, Φ6.5 × 10 mm, Φ8 × 12 mm, Φ10 × 14 mm, and Φ12 × 16 mm.
What lengths can be supplied?
Available lengths include 6, 9, 12, and 15 meters. The available length depends on the selected tube diameter.
What is the working temperature range?
The listed temperature range is -10°C to +40°C.
Can the hose color be customized?
Yes. Gray, red, black, blue, green, yellow, orange, and white options are shown on the product page.
Can the straight sections at both ends be changed?

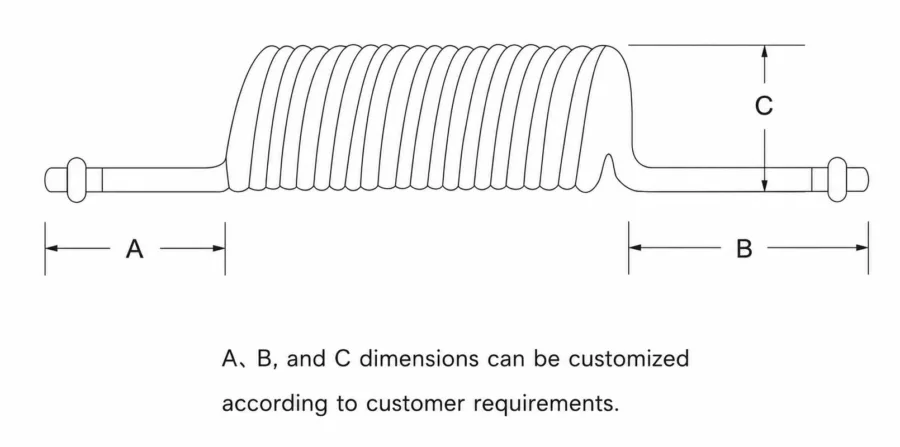

Yes. Dimensions A and B represent the straight end sections, while C represents the coil diameter. These dimensions can be adjusted for different installations.
Does the hose include pneumatic connectors?
The page does not clearly specify standard connector configurations. Please confirm whether bare tube ends, threaded fittings, plugs, or couplers are required.
What should be confirmed before ordering?
Confirm the inner and outer diameter, working length, hose color, connector type, operating pressure, straight end dimensions, coil diameter, and order quantity.
Customization Support
HOMIPNEU can provide customized hose colors, working lengths, straight end dimensions, coil diameters, connector configurations, private labels, and export packaging. Customers should provide the required tube size, air pressure, connection method, equipment layout, movement distance, color, and expected quantity for model confirmation.
