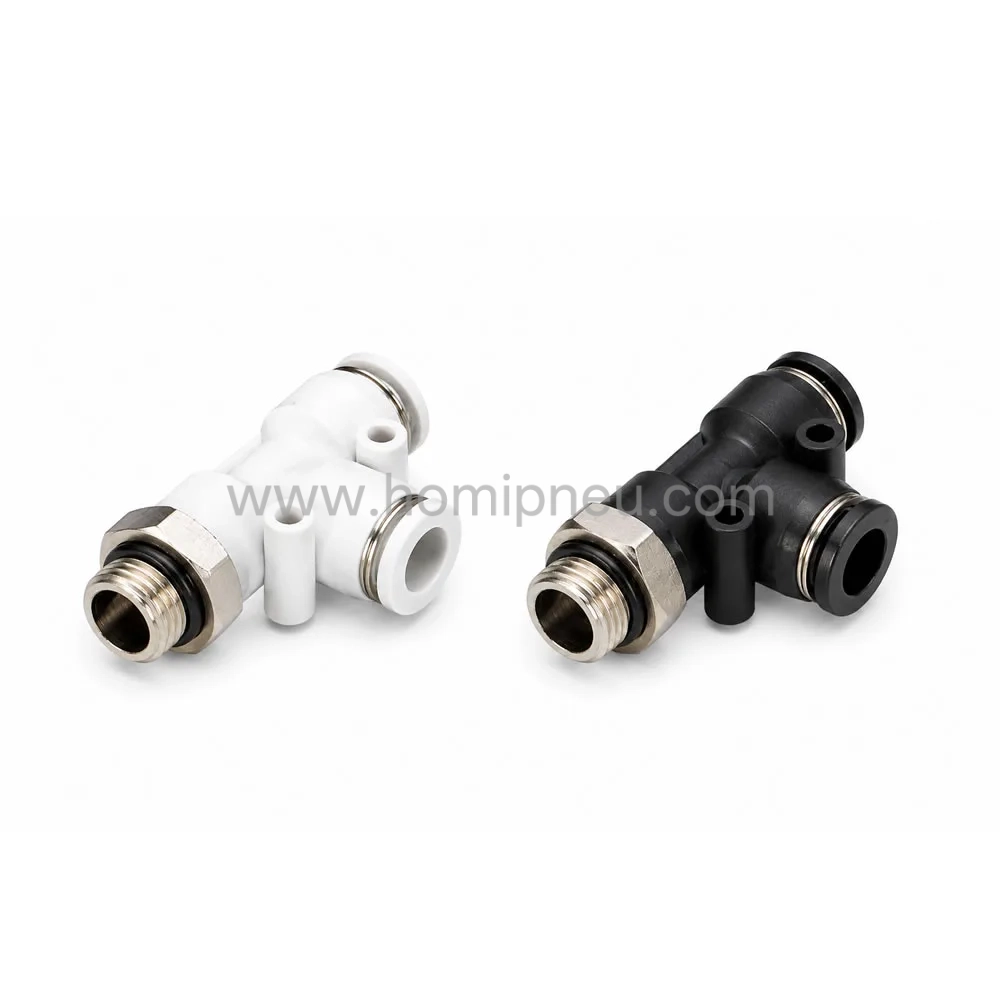

Specifications（Typical Range）
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | Male Run Tee (3-Way) |
| Connection | Tube to Thread |
| Thread Type | BSPP (G) / BSPT / Metric |
| Material | Nickel-Plated Brass |
| Seal Type | O-Ring Seal |
| Operating Fluid | Air, Vacuum |
| Working Pressure | 0 – 1.0 MPa |
| Proof Pressure | Up to 1.5 MPa |
| Temperature Range | 0 – 60°C |
| Lock Claw | Stainless Steel |
| Applicable Tubing | PU / Nylon / PE / PVC |
PD-G fittings are designed with nickel-plated brass body and O-ring sealing, ensuring corrosion resistance and reliable airtight performance in pneumatic systems.

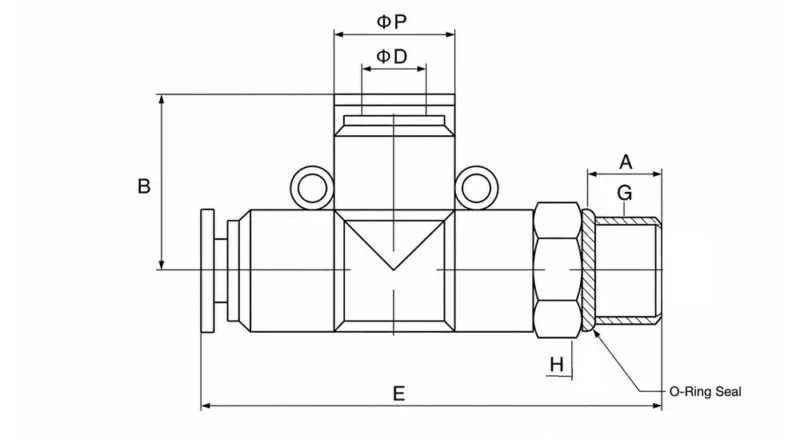

| Model | ΦD×2 | G | A | B | H | E | ΦP×2 |
| PD4-M5 | 4 | M5 | 3.5 | 36 | 10 | 39.5 | 11 |
| PD4-G01 | 4 | G1/8 | 5.5 | 36 | 12 | 41.5 | 11 |
| PD4-G02 | 4 | G1/4 | 6.5 | 36 | 15 | 42.5 | 11 |
| PD6-M5 | 6 | M5 | 3.5 | 40 | 12 | 43.5 | 13 |
| PD6-G01 | 6 | G1/8 | 5.5 | 40 | 12 | 45.5 | 13 |
| PD6-G02 | 6 | G1/4 | 6.5 | 40 | 15 | 46.5 | 13 |
| PD6-G03 | 6 | G3/8 | 7.5 | 40 | 19 | 47.5 | 13 |
| PD6-G04 | 6 | G1/2 | 9.5 | 40 | 24 | 50 | 13 |
| PD8-G01 | 8 | G1/8 | 5.5 | 44 | 14 | 49 | 15 |
| PD8-G02 | 8 | G1/4 | 6.5 | 44 | 15 | 50 | 15 |
| PD8-G03 | 8 | G3/8 | 7.5 | 44 | 19 | 51 | 15 |
| PD8-G04 | 8 | G1/2 | 9.5 | 44 | 24 | 53.5 | 15 |
| PD10-G01 | 10 | G1/8 | 5.5 | 52 | 17 | 56.5 | 18.5 |
| PD10-G02 | 10 | G1/4 | 6.5 | 52 | 17 | 57.5 | 18.5 |
| PD10-G03 | 10 | G3/8 | 7.5 | 52 | 19 | 58.5 | 18.5 |
| PD10-G04 | 10 | G1/2 | 9.5 | 52 | 24 | 61 | 18.5 |
| PD12-G01 | 12 | G1/8 | 5.5 | 56 | 19 | 60.5 | 21 |
| PD12-G02 | 12 | G1/4 | 6.5 | 56 | 19 | 61.5 | 21 |
| PD12-G03 | 12 | G3/8 | 7.5 | 56 | 19 | 62.5 | 21 |
| PD12-G04 | 12 | G1/2 | 9.5 | 56 | 24 | 65 | 21 |
| PD14-G02 | 14 | G1/4 | 6.5 | 62 | 22 | 67 | 23 |
| PD14-G03 | 14 | G3/8 | 7.5 | 62 | 22 | 68 | 23 |
| PD14-G04 | 14 | G1/2 | 9.5 | 62 | 24 | 70 | 23 |
| PD16-G02 | 16 | G1/4 | 6.5 | 66 | 24 | 71 | 25.5 |
| PD16-G03 | 16 | G3/8 | 7.5 | 66 | 24 | 72 | 25.5 |
| PD16-G04 | 16 | G1/2 | 9.5 | 66 | 24 | 74 | 25.5 |
Key Features
- 3-way tee structure for airflow distribution
- Male threaded port for equipment connection
- Tube-to-thread connection design
- Nickel-plated brass for corrosion resistance
- O-ring sealing for leak-proof performance
- Push-to-connect quick installation
Applications
Pneumatic control systems
Used for splitting airflow and connecting to threaded ports
Industrial automation systems
Supports multi-branch pneumatic layouts
Air distribution systems
Enables efficient air routing and branching
Machinery equipment
Reduces connector count and simplifies piping
Compact pneumatic installations
Ideal for space-saving system design
Widely used in pneumatic systems requiring branch distribution and threaded connection integration.
Product Function
PD-G fittings connect pneumatic tubing to a threaded port while distributing airflow into two additional directions.
Compared to standard tee fittings (tube-to-tube), PD-G provides a male threaded connection at the center, allowing direct installation onto equipment or manifolds.
Product Structure & Size Range
- Models: PD4-G01 / PD6-G02 / PD8-G03 / PD10-G04
- Tube sizes: 4mm → 16mm
- Thread sizes: G1/8 → G1/2
- 3-port tee configuration
- Male threaded center connection
Why Choose Our Pneumatic Fittings
- Professional PD-G pneumatic fitting manufacturer
- OEM / ODM customization for tee fittings
- Reliable run tee connector for air distribution systems
- Durable nickel plated brass fittings with long service life
- O-ring sealing for stable leak-proof connection
- Fast delivery and global B2B supply capability
FAQ
Q1: What is a PD-G pneumatic fitting?
It is a male run tee push-to-connect fitting used for airflow distribution and threaded connection.
Q2: What is a male run tee fitting used for?
It connects pneumatic tubing while branching airflow and attaching to threaded ports.
Q3: What is the difference between PD and PE fittings?
PD fittings include a threaded port, while PE fittings are tube-to-tube tee connectors.
Q4: Does PD-G include an O-ring seal?
Yes, it uses an O-ring sealing system for reliable airtight performance.
Q5: What tubing is compatible with PD-G fittings?
It supports PU, nylon, PE, and PVC tubing.
Q6: Can PD-G fittings be customized?
Yes, OEM and ODM customization is available.
