Specifications（Typical Range）
| Parameter | Details |
|---|---|

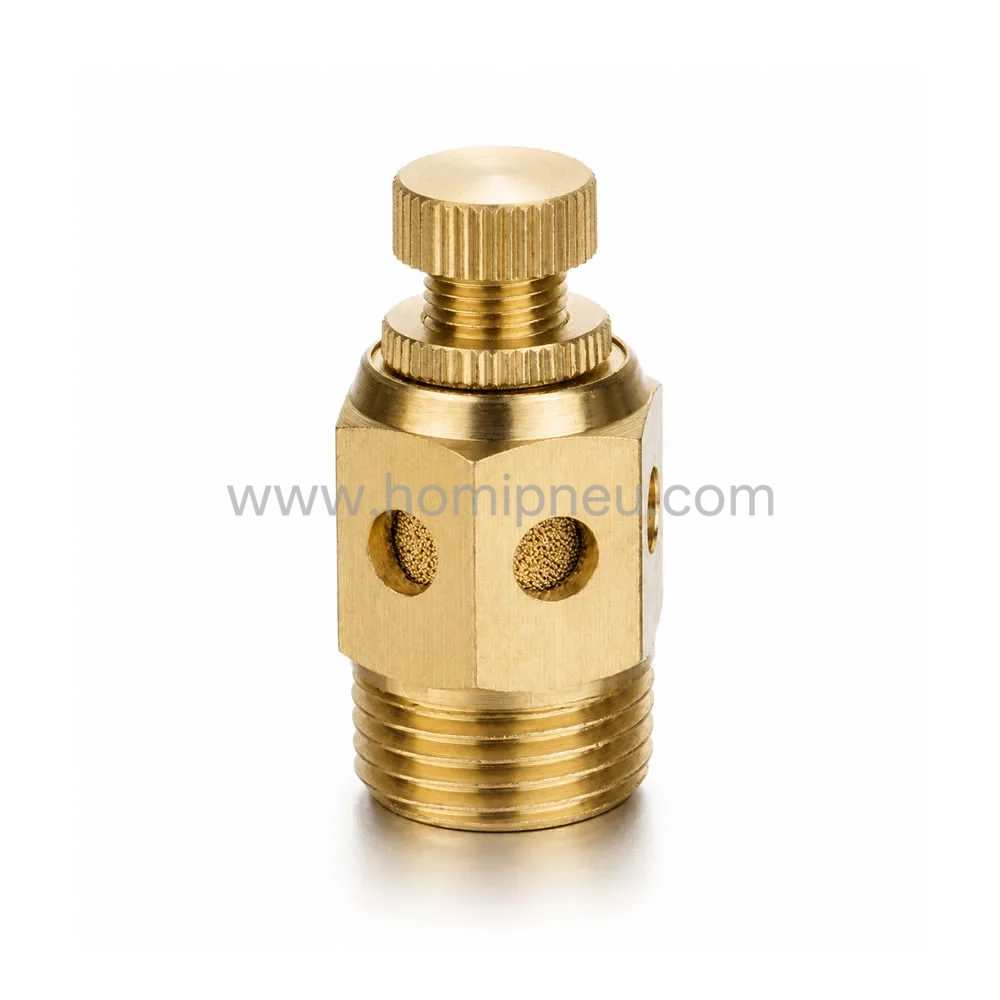

| Product Type | Pneumatic Exhaust Muffler Throttle Valve |
| Model | C Type |
| Function | Noise Reduction + Exhaust Flow Control |
| Installation | Threaded Exhaust Port |
| Adjustment | Exhaust Airflow Regulation |
| Operating Fluid | Compressed Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Equipment | Valves / Cylinders / Actuators |
C type exhaust muffler throttle valves help reduce compressed air discharge noise while adjusting airflow speed in pneumatic systems.

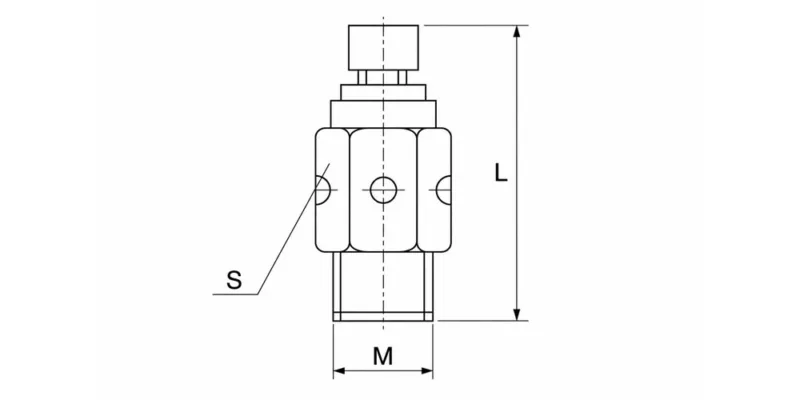

Dimension(mm)
| Model/M | L | S |
| 1/8 " | 35 | 12 |
| 1/4 " | 38 | 15 |
| 3/8 " | 38 | 17 |
| 1/2 " | 42 | 21 |
| 3/4 " | 47 | 27 |
| 1 " | 58 | 34 |
Key Features
Integrated muffler and throttle valve structure
Adjustable exhaust airflow control
Reduces pneumatic exhaust noise
Helps improve actuator movement stability
Compact threaded installation design
Suitable for pneumatic automation systems
Applications
Pneumatic cylinders
Used to control exhaust airflow for smoother cylinder operation.
Pneumatic solenoid valves
Helps reduce valve exhaust noise and regulate discharge speed.
Industrial automation systems
Suitable for equipment requiring stable pneumatic speed adjustment.
Actuator control systems
Supports controlled exhaust timing and airflow regulation.
Compressed air equipment
Provides airflow adjustment and exhaust silencing functions.
Product Function
C type exhaust muffler throttle valves are installed on pneumatic exhaust ports to reduce compressed air noise while regulating airflow discharge speed.
By adjusting exhaust airflow, the valve helps improve cylinder motion control, reduce vibration, and optimize pneumatic system performance.
Product Structure & Size Range
C type throttle muffler design
Threaded exhaust port connection
Integrated airflow adjustment mechanism
Compact muffler body structure
Available in multiple pneumatic thread sizes
Suitable for valves, cylinders, and actuators
Why Choose Our Pneumatic Mufflers
Professional pneumatic exhaust muffler manufacturer
OEM / ODM customization for C type throttle mufflers
Reliable airflow control and noise reduction performance
Suitable for industrial automation systems
Stable quality for long-term pneumatic applications
Fast delivery and global B2B supply support
FAQ
Q1: What is a C type exhaust muffler throttle valve?
It is a pneumatic component that combines exhaust noise reduction and airflow throttling functions.
Q2: What is a pneumatic throttle muffler used for?
It is used to reduce exhaust noise and regulate airflow speed in pneumatic systems.
Q3: Can it help control cylinder movement speed?
Yes, by adjusting exhaust airflow, it helps control cylinder and actuator movement speed.
Q4: Where is the C type throttle muffler installed?
It is installed on the exhaust ports of pneumatic valves, cylinders, or actuators.
Q5: Can C type exhaust muffler throttle valves be customized?
Yes, OEM and ODM customization services are available for thread size, material, and airflow specifications.
