Specifications（Typical Range）
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Exhaust Muffler Throttle Valve |
| Model | B Type |
| Function | Noise Reduction + Exhaust Flow Control |
| Installation | Threaded Exhaust Port |
| Adjustment | Exhaust Airflow Regulation |
| Operating Fluid | Compressed Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Equipment | Valves / Cylinders / Actuators |
B type exhaust muffler throttle valves help reduce exhaust noise while adjusting compressed air discharge speed in pneumatic systems.

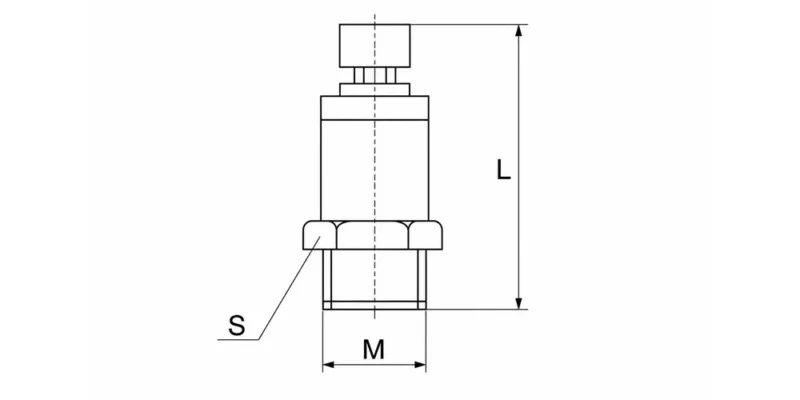

Dimension(mm)
| Model/M | L | S |
| 1/8 " | 35 | 12 |
| 1/4 " | 37 | 14 |
| 3/8 " | 45 | 17 |
| 1/2 " | 50 | 21 |
| 3/4 " | 60 | 27 |
| 1 " | 76 | 34 |
Key Features
Integrated muffler and throttle valve design
Adjustable exhaust airflow control
Reduces compressed air discharge noise
Helps improve cylinder movement stability
Compact threaded installation structure
Suitable for pneumatic automation systems
Applications
Pneumatic cylinders
Used to control exhaust airflow and support smoother cylinder motion.
Pneumatic solenoid valves
Reduces valve exhaust noise while regulating discharge speed.
Industrial automation systems
Suitable for equipment requiring stable pneumatic speed control.
Actuator control systems
Helps adjust actuator exhaust timing and airflow.
Air control equipment
Provides adjustable exhaust flow and noise reduction.
Product Function
B type exhaust muffler throttle valves are installed on pneumatic exhaust ports to reduce compressed air noise while regulating airflow discharge speed.
By controlling exhaust airflow, the valve helps improve cylinder motion stability, reduce vibration, and optimize pneumatic system performance.
Product Structure & Size Range
B type throttle muffler structure
Threaded exhaust port connection
Integrated airflow adjustment mechanism
Compact muffler body design
Available in common pneumatic thread sizes
Suitable for valves, cylinders, and actuators
Why Choose Our Pneumatic Mufflers
Professional pneumatic exhaust muffler manufacturer
OEM / ODM customization for throttle muffler valves
Reliable airflow control and exhaust silencing performance
Suitable for industrial automation systems
Stable quality for long-term pneumatic applications
Fast delivery and global B2B supply support
FAQ
Q1: What is a B type exhaust muffler throttle valve?
It is a pneumatic component that combines exhaust noise reduction and airflow throttling functions.
Q2: What is a pneumatic throttle muffler used for?
It is used to reduce exhaust noise and regulate airflow speed in pneumatic systems.
Q3: Can it control cylinder movement speed?
Yes, by adjusting exhaust airflow, it helps control cylinder and actuator movement speed.
Q4: Where is the throttle muffler installed?
It is typically installed on the exhaust ports of pneumatic valves or cylinders.
Q5: Can B type exhaust muffler throttle valves be customized?
Yes, OEM and ODM customization services are available for size, material, and airflow specifications.
