Specifications
| Parameter | Specification |
|---|---|
| Product Name | A010 Metal Air Blow Gun |
| Model | A010 |
| Working Medium | Filtered compressed air |
| Operating Temperature | -20°C to 60°C |
| Working Pressure | 0–8.0 kgf/cm² |
| Maximum Pressure Resistance | 10.0 kgf/cm² |
| Body Material | Aluminum alloy |
| Nozzle Options | Short nozzle, long nozzle |
| Short Nozzle Length | 16 mm |
| Long Nozzle Length | 100 mm |
| Connection Option | Quick connector |
| Surface Treatment | Protective surface finish for lasting appearance |
| Typical Applications | Dust removal, chip blowing, drying, machinery cleaning, and workstation maintenance |
| Customization | Nozzle length can be customized |
| Selection Checks | Confirm nozzle length, connector type, hose size, working pressure, and application before ordering |

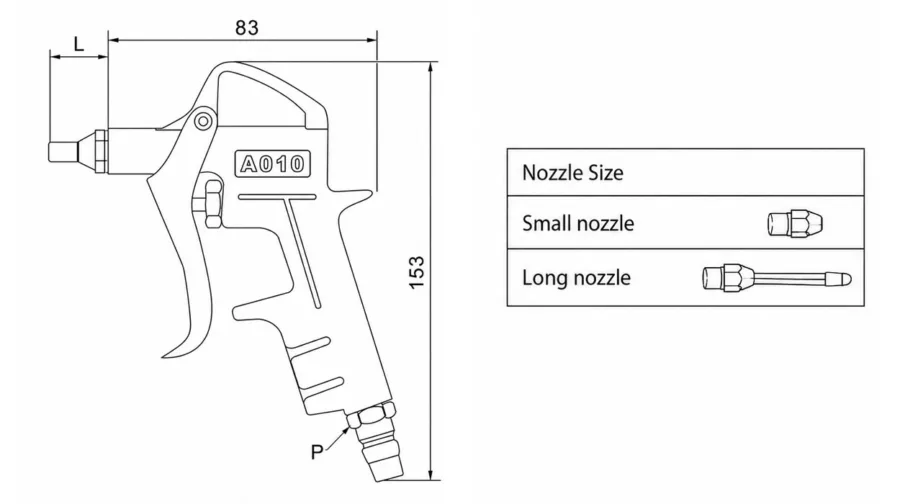

Model Selection and Dimensions
| Model | L | Muzzle Size | P | Accessories |
| A010 | 16mm | Small nozzle | Quick Connector | – |
| 100mm | Long nozzle |
*Barrel length can be customized
Product Features

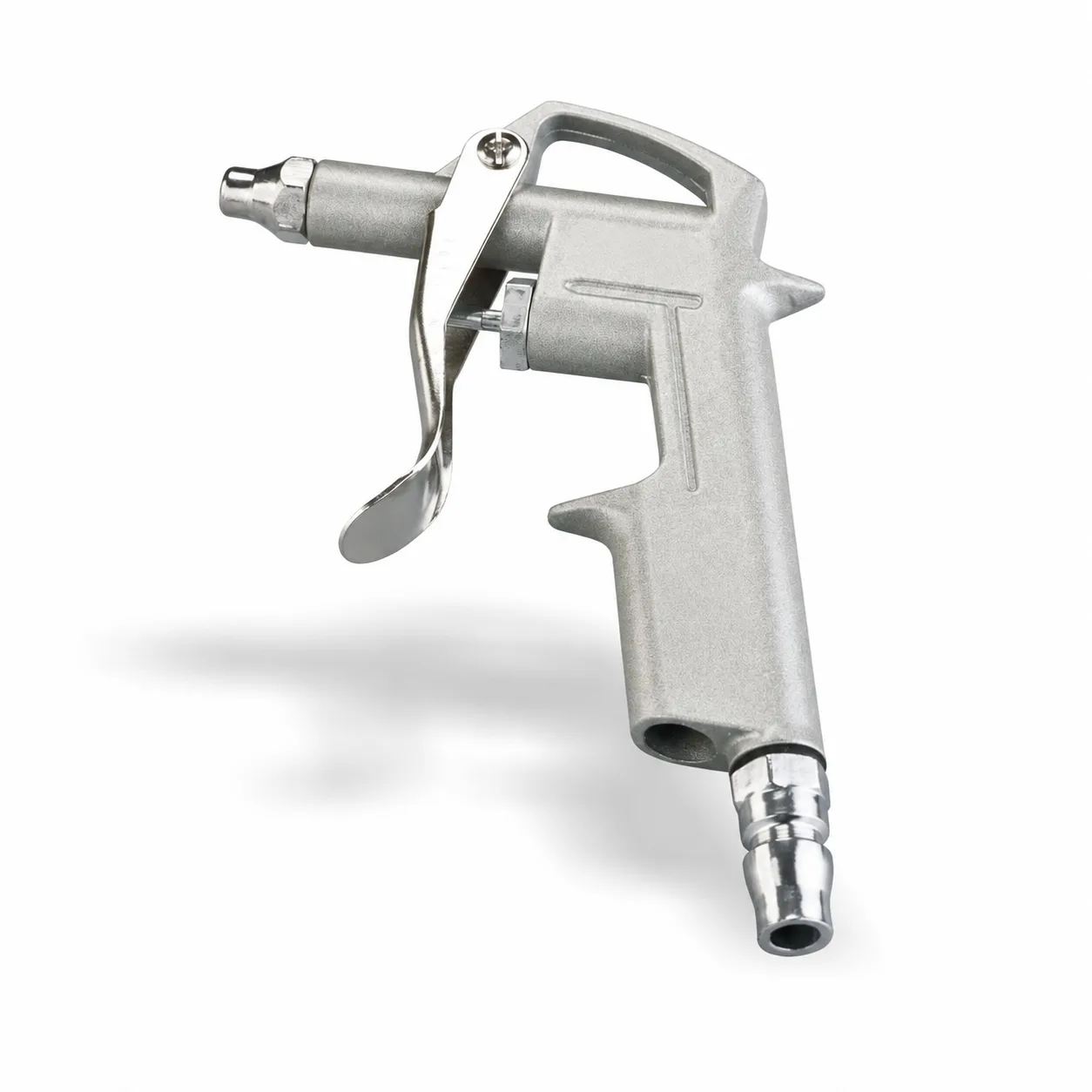

Durable Aluminum Alloy Body
The A010 air blow gun uses an aluminum alloy body for reliable operation in workshops, machinery maintenance areas, production lines, and industrial cleaning stations.
Short and Long Nozzle Options
A 16 mm short nozzle is available for general surface cleaning, while the 100 mm long nozzle helps reach machine gaps, fixture interiors, corners, and restricted working areas.
Convenient Quick Connection
The air gun can be matched with a suitable quick connector for faster installation, hose connection, tool replacement, and daily compressed air use.
Focused Compressed Air Output
The nozzle directs compressed air toward a localized cleaning area, helping remove dust, chips, particles, and loose debris from equipment and components.
Long-Lasting Surface Finish
The metal body uses a protective surface treatment designed to maintain its appearance during regular workshop and industrial use.
Customizable Nozzle Length
Different nozzle lengths can be supplied for applications requiring additional reach, specific cleaning distances, or access to narrow equipment areas.
Applications
Workshop Cleaning
Used to remove dust, loose particles, chips, and debris from workbenches, hand tools, equipment surfaces, and maintenance areas.
Machinery Maintenance
Suitable for cleaning machine parts, housings, pneumatic components, internal spaces, and hard-to-reach maintenance points.
Production Line Cleaning
Provides compressed air blowing for component cleaning, drying, surface preparation, and debris removal during manufacturing and assembly.
Mold and Fixture Cleaning
Used to clean powder, chips, dust, and small particles from molds, jigs, clamps, tooling surfaces, and fixture gaps.
Restricted-Space Cleaning
The long-nozzle version is suitable for machine interiors, narrow gaps, deep positions, and areas where a standard short nozzle cannot easily reach.
Why Choose HOMIPNEU
HOMIPNEU supplies metal air blow guns, plastic air blow guns, pneumatic fittings, air hoses, quick connectors, solenoid valves, cylinders, and air preparation components.
We help customers confirm nozzle length, connector type, hose size, working pressure, packaging requirements, and order quantity before production or shipment.
Bulk quantities, private-label packaging, export-ready cartons, and product selection support are available for distributors, machinery manufacturers, and industrial buyers.
FAQ
What is the A010 metal air blow gun used for?
It is used for compressed air cleaning, dust removal, chip blowing, drying, machinery maintenance, and general workshop cleaning.
What material is the A010 air blow gun made from?
The body is made from aluminum alloy, providing a durable metal structure for regular industrial use.
What nozzle options are available?
The A010 is available with a 16 mm short nozzle and a 100 mm long nozzle.
Which nozzle is suitable for narrow areas?
The 100 mm long nozzle is suitable for deep, narrow, elevated, or difficult-to-reach cleaning positions.
What is the working pressure range?
The specified working pressure range is 0–8.0 kgf/cm².
What is the maximum pressure resistance?
The listed maximum pressure resistance is 10.0 kgf/cm².
What working medium should be used?
Filtered compressed air is recommended to reduce contamination and support stable operation.
Does the A010 support a quick connector?
Yes. A quick connector option is available. The connector and air hose specifications should be confirmed before ordering.
Can the nozzle length be customized?
Yes. Different nozzle lengths can be supplied according to the cleaning distance, machine layout, and application requirements.
What should be confirmed before ordering?
Confirm the nozzle length, quick connector standard, hose size, working pressure, quantity, packaging, and intended application.
Customization & Supply Support
HOMIPNEU supports customized nozzle lengths, quick connector selection, product labeling, packaging design, and bulk production for metal air blow guns. Customers can provide the required nozzle length, connector standard, hose specification, working pressure, quantity, and application details for accurate selection and quotation.
