Specifications
| Parameter | Specification |
|---|---|

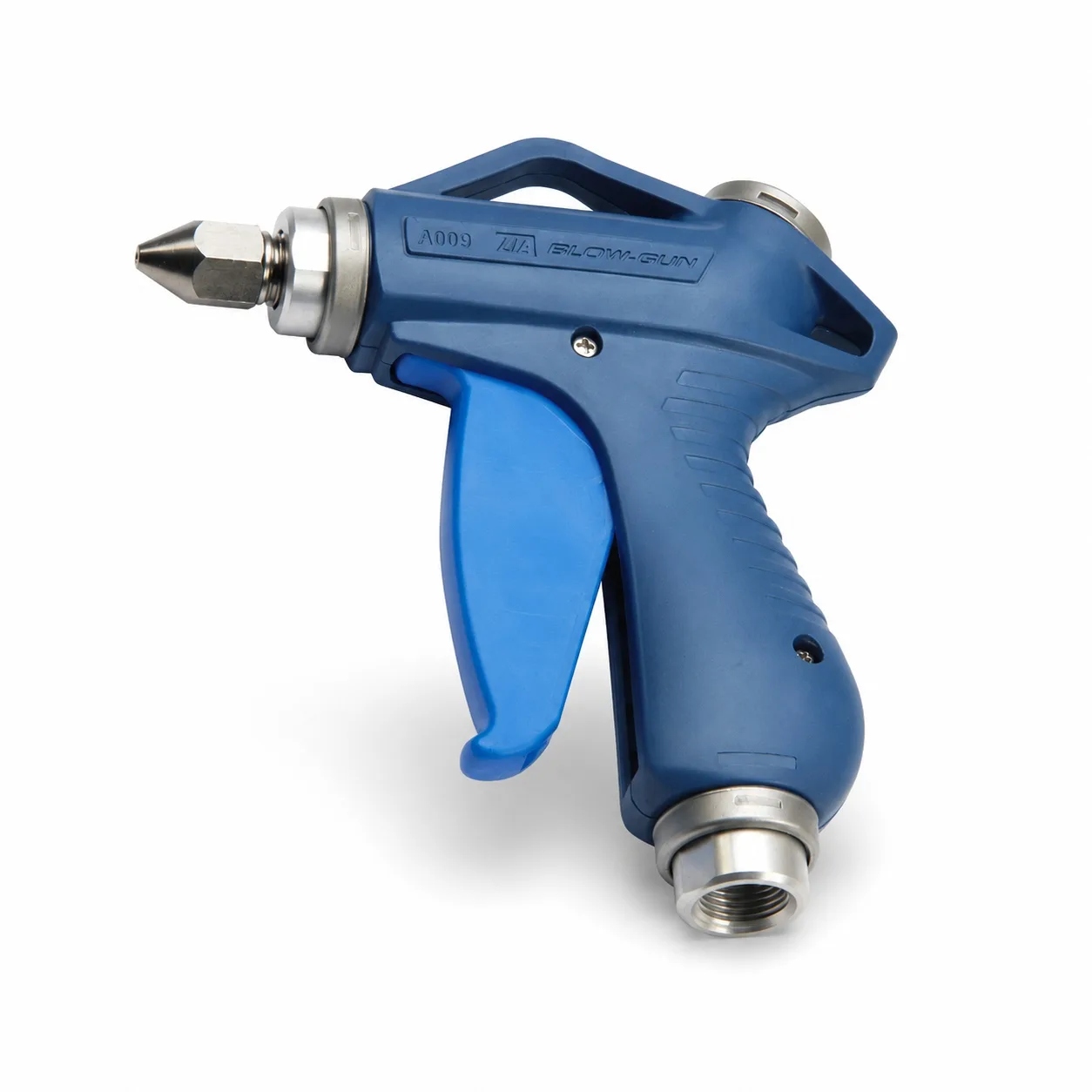

| Product Name | A009 Plastic Air Gun Series |
| Available Models | A009, A009-L1, A009-L3, A009-A, A009-D |
| Working Medium | Filtered compressed air |
| Operating Temperature | -20°C to 60°C |
| Working Pressure | 0–8.0 kgf/cm² |
| Maximum Pressure Resistance | 10.0 kgf/cm² |
| Body Material | Plastic |
| Thread Connection | 3/8″ NPT |
| A009 | 20 mm, standard nozzle |
| A009-L1 | 130 mm, long nozzle |
| A009-L3 | 300 mm, long nozzle |
| A009-A | 25 mm, speed nozzle |
| A009-D | 75 mm, large-diameter nozzle |
| Customization | nozzle length can be customized |
| Typical Uses | Dust removal, chip blowing, drying, equipment cleaning and workstation maintenance |

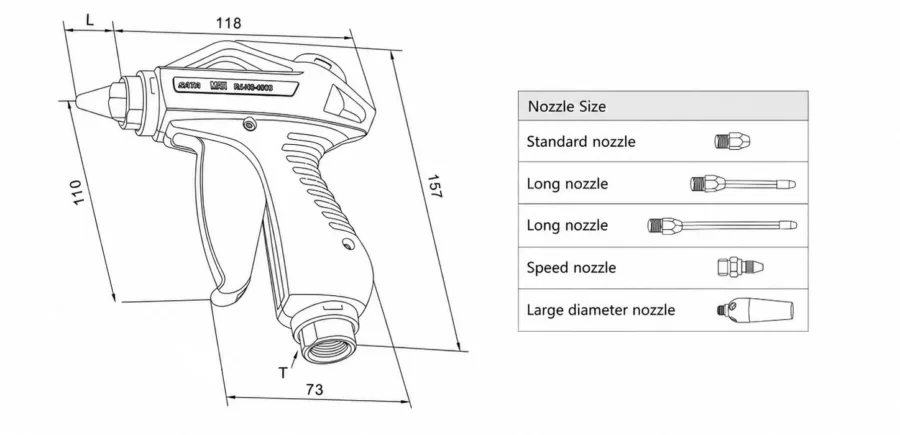

Model Selection and Dimensions
| Model | L | nozzle Size | T | Accessories |
| A009 | 20mm | Standard nozzle | 3/8″NPT | |
| A009-L1 | 130mm | Long nozzle | ||
| A009-L3 | 300mm | Long nozzle | ||
| A009-A | 25mm | Speed nozzle | ||
| A009-D | 75mm | Large diameter nozzle |
*Barrel length can be customize
Product Features
Lightweight Plastic Body
The A009 plastic air gun is designed with a lightweight plastic body for daily compressed air cleaning. It is easy to carry, simple to operate, and suitable for repeated use in workshops, production lines, maintenance areas, and pneumatic workstations.
Multiple nozzle Options
The A009 Series includes standard nozzle, long nozzle, speed nozzle, and large diameter nozzle options. Users can select the proper model according to cleaning distance, airflow demand, access space, and working position.
Long nozzle for Narrow Areas
The A009-L1 and A009-L3 models are suitable for cleaning deep, narrow, high, or hard-to-reach equipment areas where a short nozzle cannot easily reach.
Large Diameter nozzle for Wider Blowing
The A009-D model provides a larger air outlet for wider blowing coverage, making it useful for dust removal, chip blowing, surface cleaning, and drying tasks.
Speed nozzle for Focused Air Blowing
The A009-A model is designed for focused air blowing where operators need faster airflow output for local cleaning, small gaps, fixtures, and machine corners.
Practical Choice for Industrial Supply
The A009 plastic air gun is suitable for pneumatic tool distributors, machinery factories, repair workshops, maintenance teams, and OEM pneumatic tool projects.
Applications
Workshop Cleaning
Used for removing dust, chips, particles, and loose debris from workbenches, tools, equipment surfaces, fixtures, and production areas.
Machinery Maintenance
Suitable for cleaning machine parts, molds, pneumatic equipment, assembly fixtures, gaps, corners, and hard-to-reach areas during routine maintenance.
Production Line Cleaning
Applied in manufacturing lines where operators need compressed air blowing for part cleaning, drying, surface preparation, and debris removal.
Mold and Fixture Cleaning
Used to clean powder, chips, dust, and small particles from molds, jigs, clamps, fixture gaps, and machine corners.
Narrow-Area Air Blowing
Suitable for cleaning high, deep, narrow, or limited-access spaces where a long nozzle, focused outlet, or wider air outlet is required.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic air guns, plastic air blow guns, metal air guns, pneumatic fittings, air hoses, solenoid valves, cylinders, air source treatment units, mufflers, vibrators, vacuum components, and other compressed air system accessories.
We help customers confirm model selection, nozzle type, barrel length, thread size, working pressure, air hose connection, packaging requirements, and order quantity before production or shipment.
For distributors and industrial customers, HOMIPNEU supports bulk supply, export packaging, private label requirements, and customized pneumatic tool solutions.
FAQ
What is the A009 plastic air gun used for?
The A009 plastic air gun is used for compressed air cleaning, dust removal, chip blowing, drying, and general workstation cleaning in workshops, machinery maintenance, and production lines.
What models are available in the A009 Series?
The available models include A009 standard nozzle, A009-L1 long nozzle, A009-L3 300 mm long nozzle, A009-A speed nozzle, and A009-D large diameter nozzle.
What is the body material of the A009 air gun?
The body is made of plastic, making it lightweight and suitable for daily compressed air cleaning work.
What working medium should be used?
The recommended working medium is filtered compressed air. Clean air helps improve operation stability and service life.
What is the working pressure range?
The working pressure range is 0–8.0 kgf/cm², with maximum pressure resistance up to 10.0 kgf/cm².
What thread size does the A009 air gun use?
The A009 air gun uses a 3/8″ NPT thread size. Please confirm the required air hose connection before ordering.
Can the barrel length be customized?
Yes. Barrel length can be customized according to cleaning distance, workstation layout, machine structure, and project requirements.
What should be confirmed before ordering?
Please confirm the model, nozzle type, barrel length, thread size, air hose connection, working pressure, quantity, and packaging requirements before ordering.
Customization & Bulk Supply Support
HOMIPNEU supports customized supply for plastic air guns, metal air guns, pneumatic fittings, air hoses, air preparation units, pneumatic valves, cylinders, and other compressed air accessories. Customers can provide model requirements, nozzle type, barrel length, thread size, packaging design, logo requirements, order quantity, and target market information for accurate quotation and production support.
