Specifications
| Item | Specification |
|---|---|

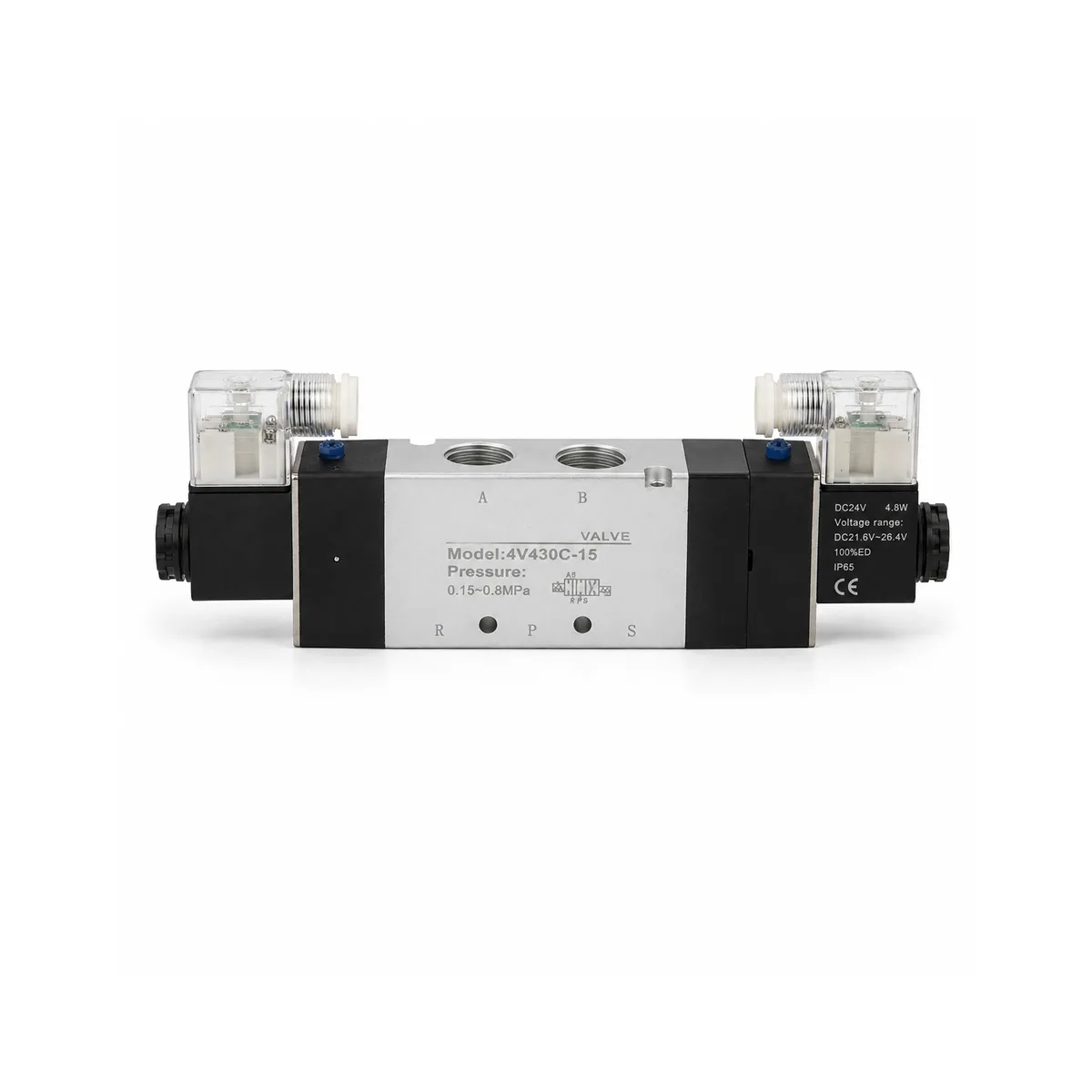

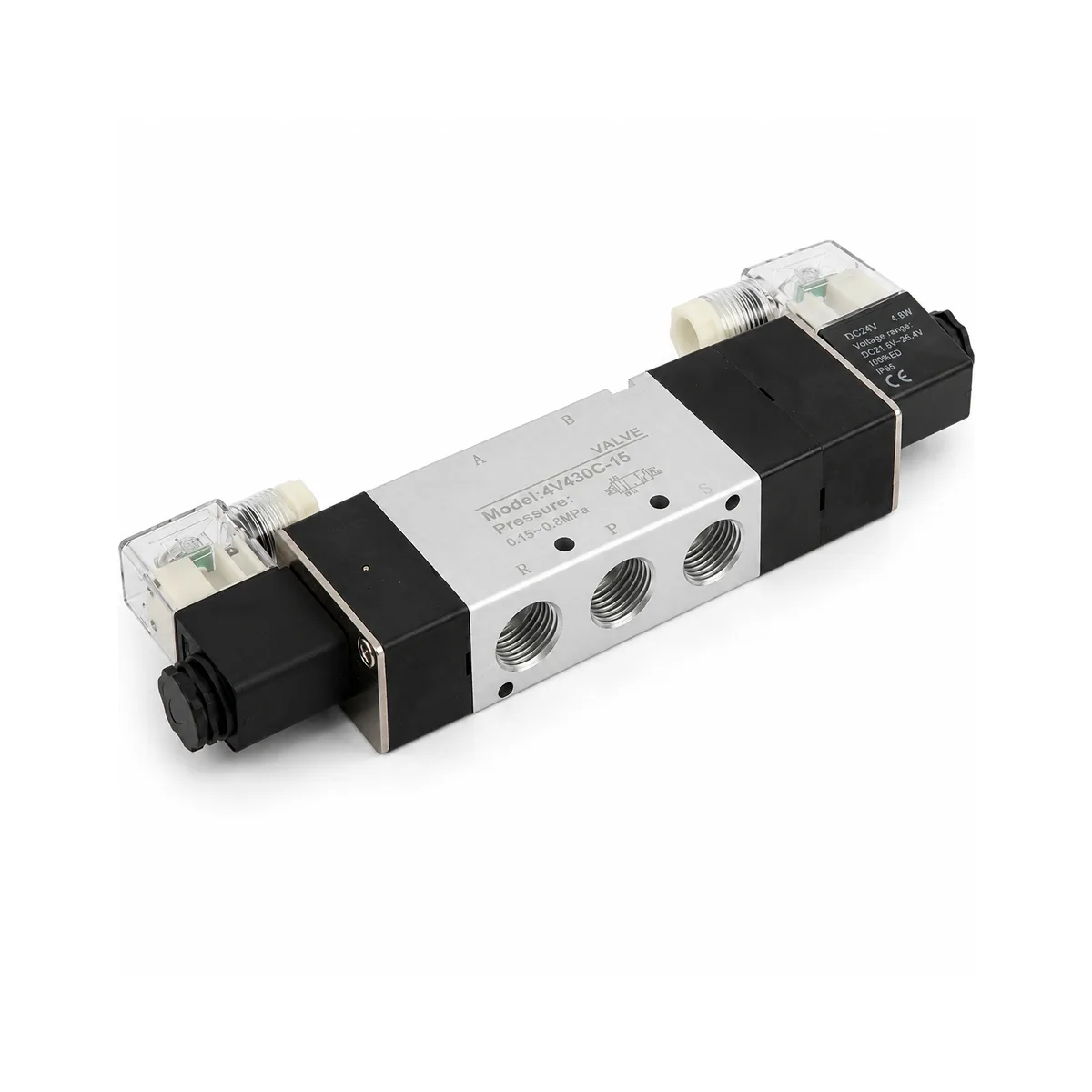

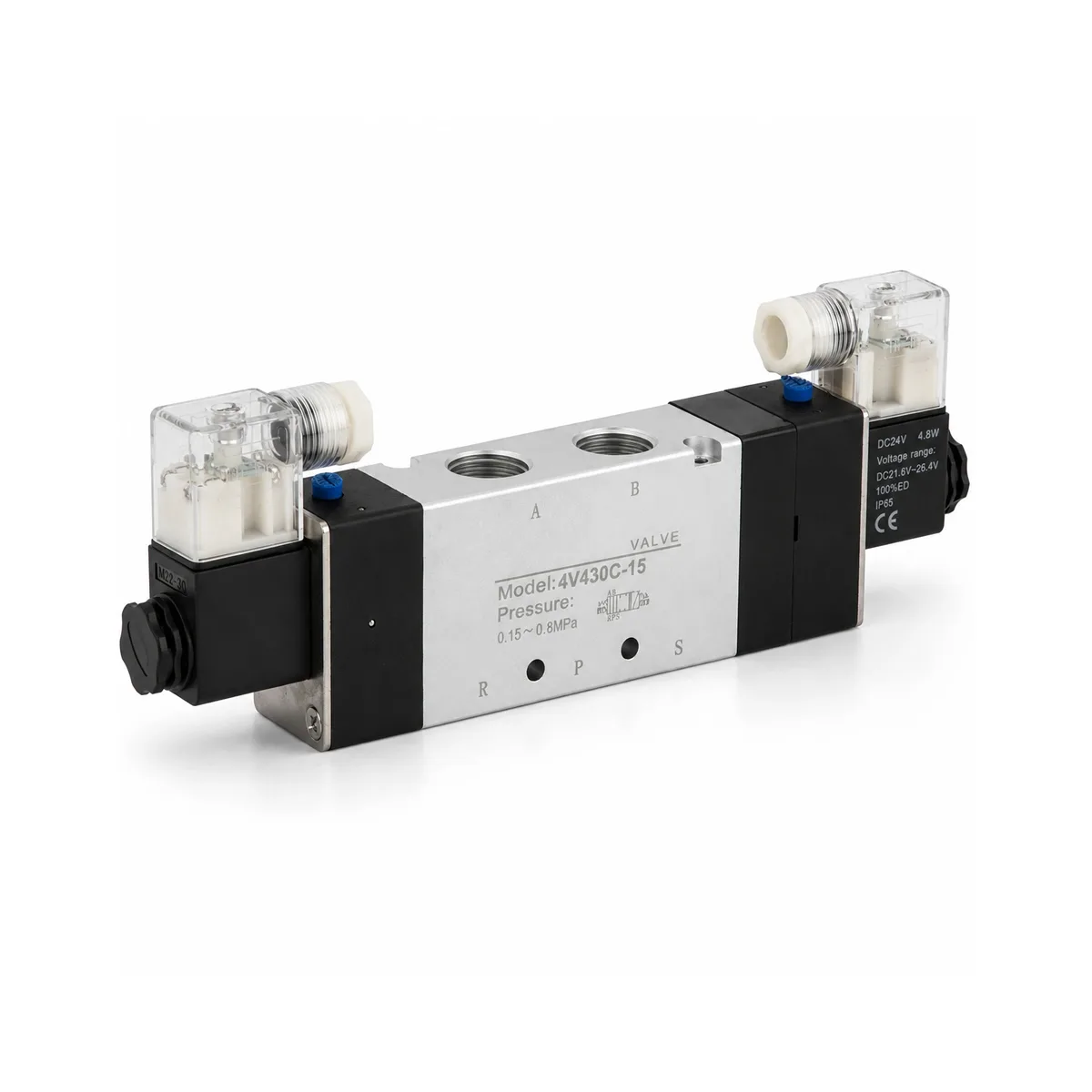

| Model | 4V430C-15 |
| Valve Type | Pneumatic Solenoid Valve |
| Function | 5/3 Way |
| Position and Port Number | 5 Port 3 Position |
| Center Type | Closed Center |
| Control Type | Double Solenoid |
| Series | 4V400 Series |
| Port Size | 1/2″ |
| Working Medium | Filtered Compressed Air |
| Operation Type | Internal Pilot Type |
| Body Material | Aluminum Alloy |
| Effective Sectional Area | 40mm² |
| CV Value | 2.35 |
| Working Pressure | 0.15–0.8MPa |
| Proof Pressure | 1.2MPa |
| Working Temperature | -20°C to 70°C |
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V |
| Electrical Entry | DIN Connector / Terminal Type |
| Structure | Sliding Spool Structure |
| Lubrication | Not required |
| Mounting Type | Threaded Connection / Manifold Mounting |
| Compatible Series | Compatible with Airtac 4V400 Series |
| Main Application | Double-acting cylinder, pneumatic actuator, positioning control and industrial automation |
Product Features
5/3 Way Closed Center Design
The 4V430C-15 solenoid valve uses a 5-port, 3-position structure with a closed center function. When the valve returns to the center position, the working ports are blocked, helping the cylinder or actuator stop and hold its current position.
Double Solenoid Control
The double solenoid structure allows electrical control in two directions. It is suitable for pneumatic systems that require controlled extension, retraction, and center-position stopping.
1/2 Port for Larger Airflow Capacity
With a 1/2″ port size, the 4V430C-15 provides higher airflow capacity for larger pneumatic cylinders, actuators, clamps, lifting mechanisms, and industrial automation equipment.
Closed Center for Position Holding
The closed center function is useful when the actuator needs to pause during movement. It helps reduce unwanted cylinder movement in the middle position when the pneumatic circuit is properly sealed.
Internal Pilot Operation
The internal pilot structure supports stable valve shifting under normal compressed air pressure. It helps provide responsive switching and reliable air direction control during repeated operation.
Sliding Spool Structure
The sliding spool design provides smooth movement, good sealing performance, and low friction, helping the valve maintain stable operation over long-term use.
Manual Override for Testing
The manual override function helps operators test valve action during installation, commissioning, and maintenance without relying only on electrical control signals.
Ideal Replacement for Airtac 4V400 Series Applications
The 4V430C-15 can be selected for pneumatic systems that require a 4V400 series type 5/3 way closed center double solenoid valve compatible with Airtac 4V400 Series installations.
Applications
The 4V430C-15 solenoid valve is widely used in double-acting cylinder control, pneumatic actuator control, lifting equipment, clamping fixtures, packaging machinery, industrial automation lines, material handling systems, machine tools, and pneumatic control cabinets.
It is especially suitable for pneumatic systems that require extend, retract, and center-stop control. The closed center structure helps hold the actuator position when the valve is in the middle state, making it useful for positioning, pausing, and controlled motion applications.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, manual valves, cylinders, fittings, and air source treatment components for industrial automation systems. The 4V430C-15 solenoid valve is designed for stable switching, higher airflow capacity, and reliable direction control in medium and large pneumatic circuits.
We support voltage selection, model matching, batch supply, labeling, packaging, and customized requirements for OEM machinery builders, pneumatic distributors, maintenance users, and industrial automation suppliers.
FAQ
What is the 4V430C-15 solenoid valve used for?
The 4V430C-15 is mainly used for controlling double-acting pneumatic cylinders and actuators that require extension, retraction, and center-position stopping.
Is 4V430C-15 a 5/3 way valve?
Yes. The 4V430C-15 is a 5-port, 3-position pneumatic solenoid valve.
What does the “C” mean in 4V430C-15?
The “C” refers to closed center. In the center position, the working ports are blocked to help stop and hold the actuator position.
Is 4V430C-15 a double solenoid valve?
Yes. The 4V430C-15 uses double solenoid control for two-direction electrical switching.
What is the port size of 4V430C-15?
The standard port size is 1/2″, suitable for larger pneumatic cylinders and higher airflow applications.
Can 4V430C-15 be used for cylinder positioning?
Yes. The closed center structure can help stop the cylinder in its current position, but actual holding performance also depends on air leakage, cylinder load, seals, and system design.
Is this valve interchangeable with Airtac 4V400 Series?
The 4V430C-15 is designed for 4V400 series type pneumatic valve applications and can be selected for systems using Airtac 4V400 Series style valves.
Does the 4V430C-15 need lubrication?
In clean compressed air systems, additional oil lubrication is generally not required.
