Specifications
| Item | Specification |
|---|---|

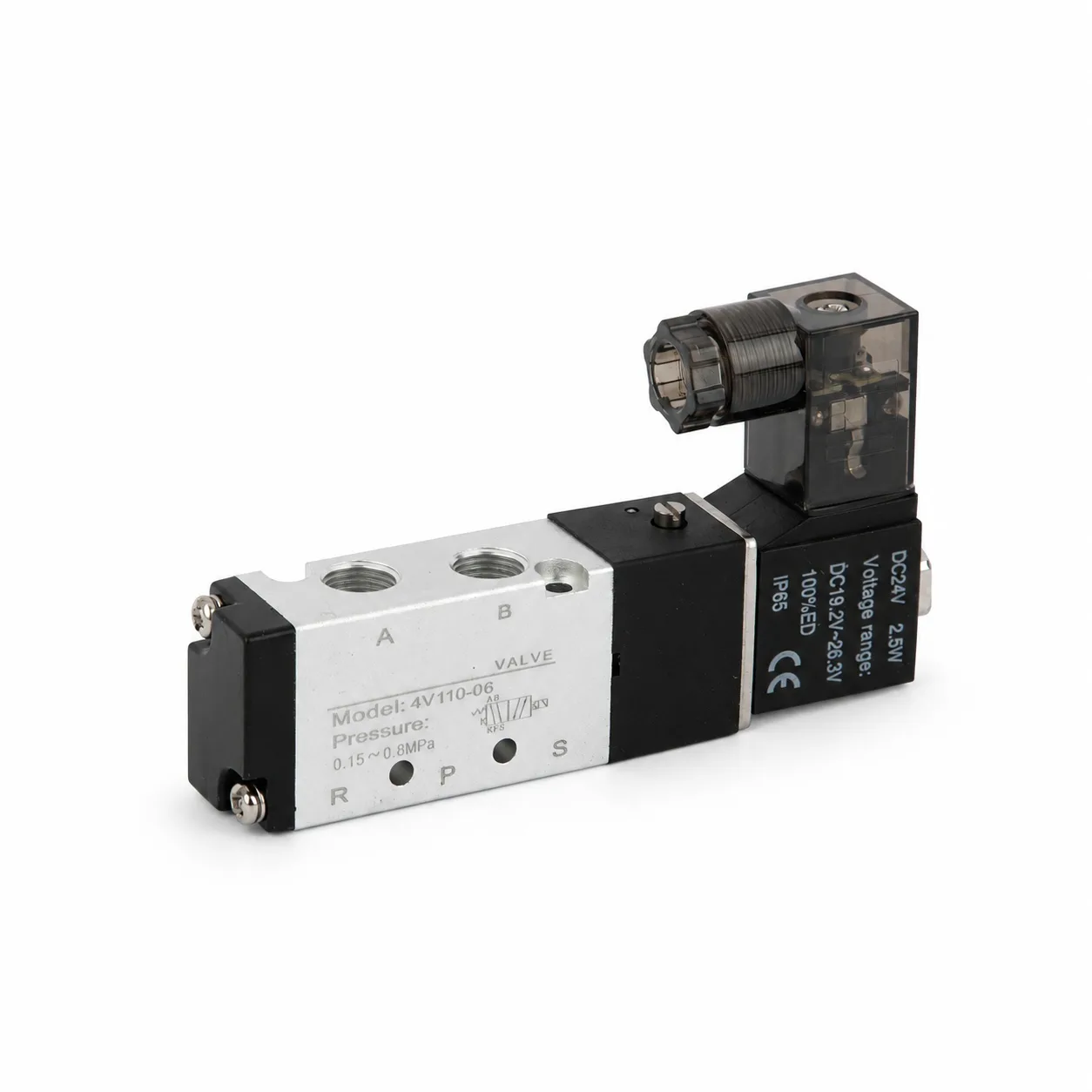

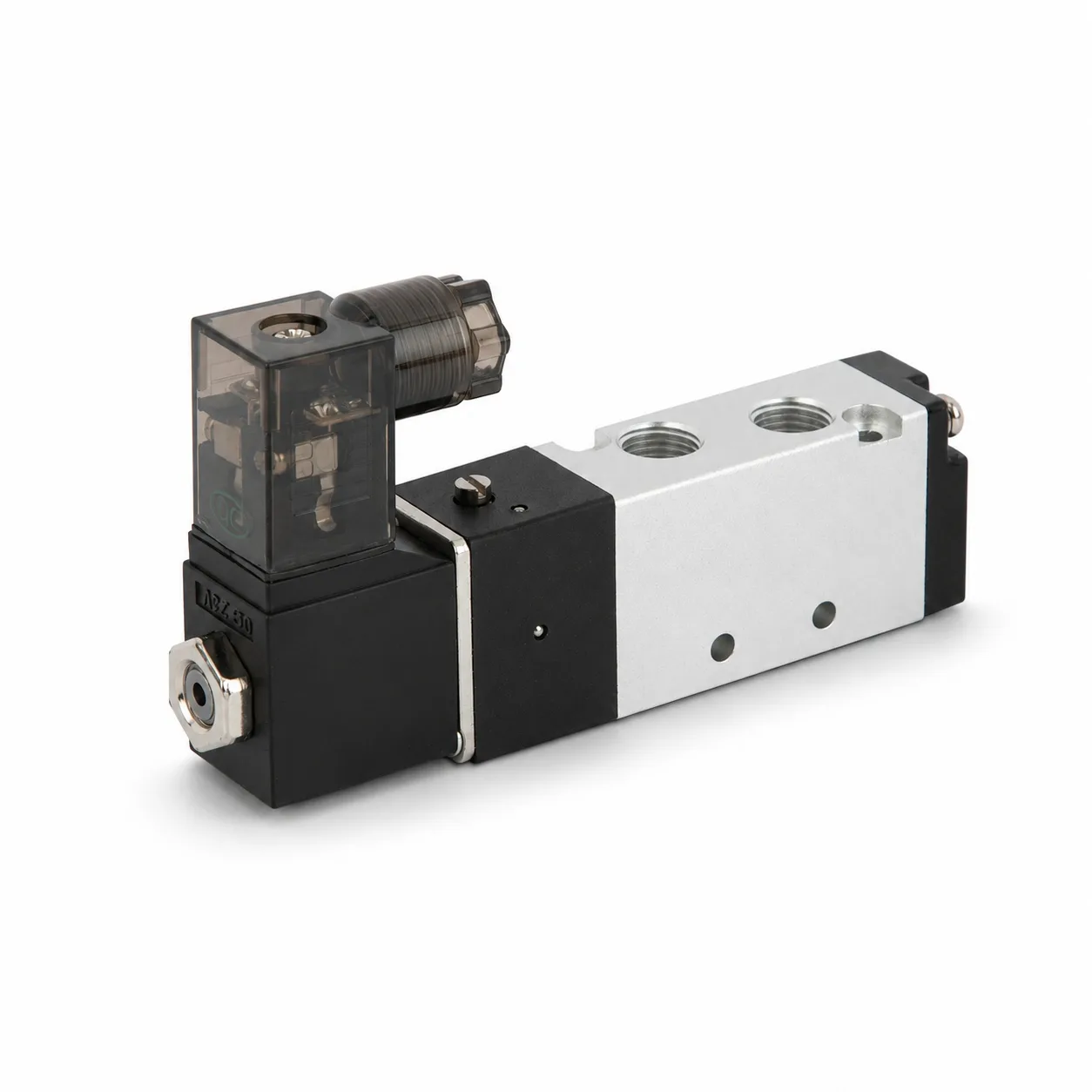

| Model | 4V110-06 |
| Valve Type | 5/2 Way Single Solenoid Valve |
| Series | 4V100 Series |
| Port Size | G1/8 |
| Working Medium | Filtered Compressed Air |
| Operation Type | Internal Pilot Type |
| Body Material | Aluminum Alloy |
| Working Pressure | 0.15–0.8MPa |
| Proof Pressure | 1.2MPa |
| Working Temperature | -20°C to 70°C |
| Effective Sectional Area | 10.2mm² |
| CV Value | 0.6 |
| Max. Operating Frequency | 5 cycles per second |
| Lubrication | Not required |
| Compatible Series | Compatible with Airtac 4V100 Series |
| Application | Pneumatic cylinder and actuator direction control |
Product Features
Compact 5/2 Way Directional Control
The 4V110-06 solenoid valve is designed for controlling double-acting pneumatic cylinders and other small pneumatic actuators. Its 5-port, 2-position structure allows reliable air direction switching in compact automation systems.
G1/8 Port for Small Pneumatic Circuits
With a G1/8 port size, this valve is suitable for compact pneumatic control panels, small cylinders, grippers, fixtures, and automatic production equipment where space is limited.
Stable Internal Pilot Operation
The internal pilot structure provides sensitive response and stable switching performance under normal compressed air conditions. It helps maintain consistent cylinder movement in repeated automation cycles.
Durable Aluminum Alloy Body
The aluminum alloy valve body offers a good balance of strength, weight, and corrosion resistance, making it suitable for general industrial pneumatic environments.
Low Friction Spool Structure
The sliding spool structure is designed for smooth movement, good sealing performance, and long service life. It helps reduce wear during frequent operation.
No Oil Lubrication Required
The valve can operate without additional lubrication in clean compressed air systems. This helps simplify maintenance and keeps the pneumatic circuit cleaner.
Manual Override for Easy Testing
The manual override function supports quick installation, debugging, and system testing before full automatic operation.
Ideal Replacement for Airtac 4V100 Series Installations
The 4V110-06 can be used in pneumatic systems that require a compact 4V100 series type 5/2 way single solenoid valve, especially for cylinder control and equipment retrofit projects.
Applications
The 4V110-06 solenoid valve is widely used in pneumatic automation systems that require compact and stable directional air control. It is suitable for double-acting cylinders, pneumatic clamps, small actuators, packaging machinery, assembly equipment, material handling systems, fixture control, and automatic production lines.
It is commonly installed in pneumatic control cabinets, manifold systems, and machine-side valve groups where fast response, compact size, and reliable air switching are required.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves for automation equipment, OEM machinery, and industrial air control systems. Our 4V110-06 valve is built for stable performance, easy installation, and practical compatibility with commonly used pneumatic circuit designs.
We support flexible model selection, voltage options, batch supply, and customized requirements for machine builders, distributors, and industrial users. HOMIPNEU focuses on dependable pneumatic components that help improve system stability and reduce maintenance pressure.
FAQ
What is the 4V110-06 solenoid valve used for?
The 4V110-06 is mainly used to control the air direction of double-acting pneumatic cylinders and small pneumatic actuators.
Is 4V110-06 a 5/2 way valve?
Yes. The 4V110-06 is a 5-port, 2-position single solenoid directional control valve.
What is the port size of 4V110-06?
The standard port size is G1/8, suitable for compact pneumatic control systems.
Can 4V110-06 be used with pneumatic cylinders?
Yes. It is commonly used for controlling double-acting pneumatic cylinders in automation equipment.
Is this valve interchangeable with Airtac 4V100 Series?
The 4V110-06 is designed for 4V100 series type pneumatic valve applications and can be selected for systems using Airtac 4V100 series style valves.
Does the 4V110-06 need lubrication?
In normal clean compressed air systems, additional lubrication is not required.
What pressure range does the 4V110-06 support?
The common working pressure range is 0.15–0.8MPa.
OEM & ODM Support
HOMIPNEU provides OEM & ODM support for pneumatic solenoid valves, including model selection, voltage options, labeling, packaging, and batch supply for automation equipment manufacturers and pneumatic distributors. Custom requirements can be discussed according to application conditions and purchasing quantity.
