Specifications
| Model | VX2120-06 | VX2120-08 | VX2120-10 | VX2120-010A | VX2120-15 |
| Working Medium | Air, Water, Oil, Steam | ||||
| Motion Pattern | Direct Drive Type | ||||
| Type | Normal Close Type | ||||
| Working-pressure(kgf/cm2) | 0~7 | ||||
| Aperture of Flow Rate(mm) | 3 | 10 | 13 | ||
| Joint Pipe Bore | 1/8″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ |
| Operating Temperature Range(°C) | -5~150℃ | -5~80℃ | |||
| Material of oil seal | VITON | NBR | |||

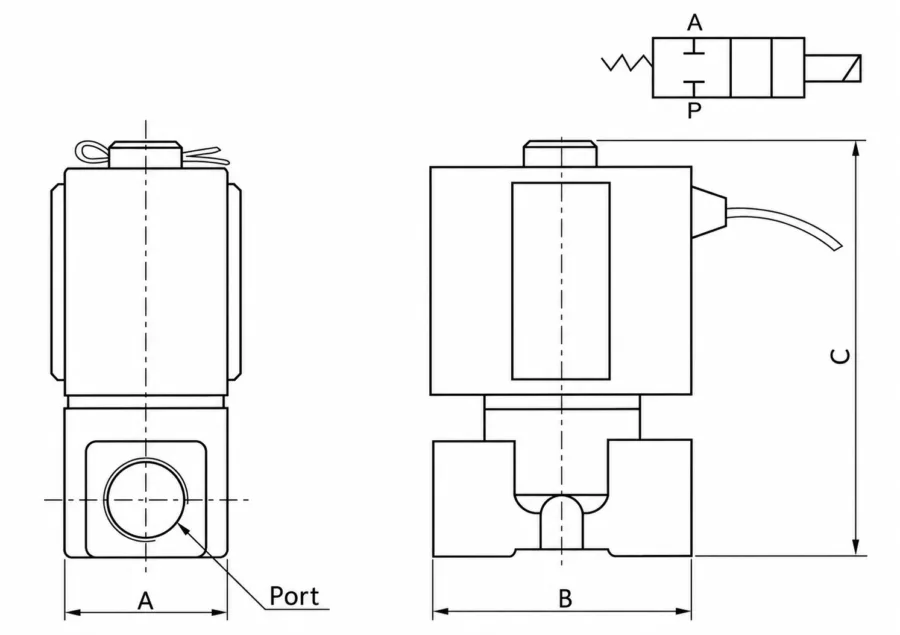

Model Selection and Dimensions
| Parameter | VX2120-06 | VX2120-08 | VX2120-10 | VX2120-010A | VX2120-15 |
|---|---|---|---|---|---|
| Port | 1/8″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ |
| A | 26 | 26 | 40 | 47 | 47 |
| B | 40 | 40 | 48 | 66 | 66 |
| C | 66 | 66 | 78 | 88 | 88 |

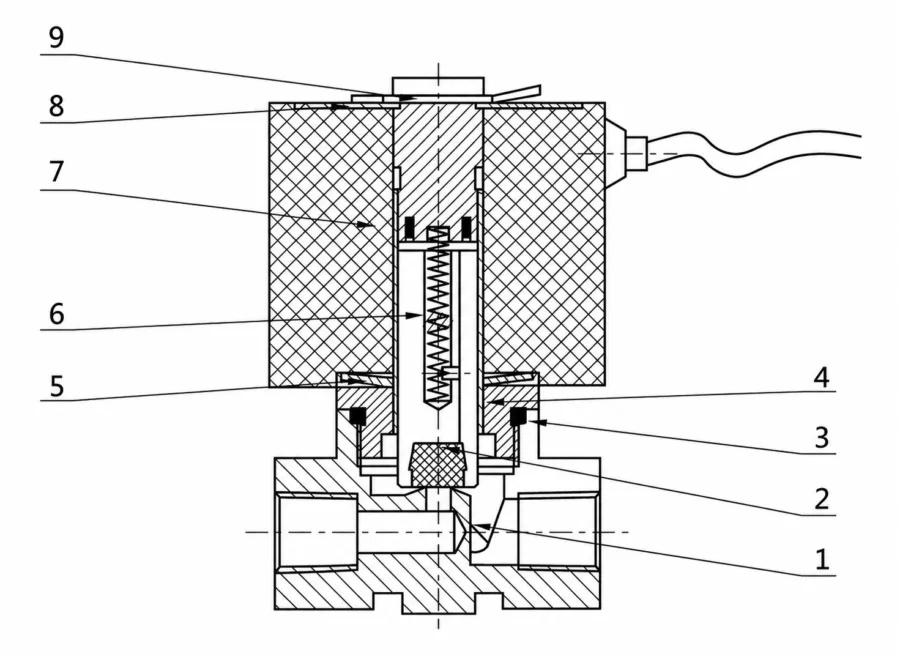

Inner Structure
| No. | Name | Quantity | Material |
|---|---|---|---|
| 1 | Valve Body | 1 | HPb59-1 |
| 2 | Moving Iron Core Assembly | 1 | — |
| 3 | O-Ring | 1 | PTFE |
| 4 | Pilot Head Assembly | 1 | — |
| 5 | Spring | 1 | 1Cr19Ni9Ti |
| 6 | Spring | 1 | 1Cr19Ni9Ti |
| 7 | Coil | 1 | — |
| 8 | Nameplate | 1 | LY12 |
| 9 | Circlip | 1 | Spring Steel |
Product Features
2/2 Way On-Off Fluid Control
The VX Series is designed for automatic on-off control in fluid and compressed air systems. Its 2 port 2 position structure opens or closes the flow path by electrical signal, making it suitable for simple and reliable pipeline control.
Direct Acting Valve Structure
The direct acting design allows the valve to operate without relying on a large pressure differential. This makes it suitable for applications where quick switching and stable flow control are required.
Normally Closed Control Function
The valve stays closed when the coil is not energized and opens when power is applied. This normally closed function is widely used in systems where the default state should keep the pipeline shut.
Suitable for Air, Water, Oil, and Steam
The VX Series can be used for air, water, oil, steam, and compatible neutral fluids. Medium compatibility, temperature, viscosity, pressure, and seal material should always be confirmed before ordering.
Multiple Port Sizes for Flexible Selection
With 1/8″, 1/4″, 3/8″, and 1/2″ port options, the VX Series can be selected for different pipeline sizes, flow requirements, and installation spaces.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, and OEM supply for solenoid valve distributors, fluid control equipment builders, and industrial automation customers.
Applications
Compressed Air Systems
Used for opening and closing air lines in pneumatic equipment, compressed air circuits, small machine panels, and automated control systems.
Water Control Equipment
Suitable for automatic water on-off control in washing equipment, cooling systems, water supply devices, cleaning machines, and general fluid control pipelines.
Steam Control Applications
Applied in compatible steam control systems when the selected seal material, temperature range, pressure, and installation direction match the working conditions.
Oil and Neutral Fluid Circuits
Used for compatible oil and neutral fluid control where electrical on-off switching is required. Fluid viscosity, seal material, temperature, and pressure must be checked before installation.
OEM Machinery and Maintenance Replacement
Suitable for OEM equipment, fluid control panels, spare parts programs, distributor stock, and maintenance replacement projects when the original valve specifications match.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, fluid control valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, thread type, voltage, medium, seal material, temperature range, pressure range, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for solenoid valve and pneumatic component projects.
FAQ
What is the VX Series solenoid valve used for?
The VX Series is used for 2/2 way on-off control of air, water, oil, steam, and compatible neutral fluids in industrial equipment, fluid control systems, pneumatic circuits, and OEM machinery.
Is the VX Series a normally closed valve?
Yes. The VX Series shown on this page is a normally closed solenoid valve. It stays closed when the coil is not energized and opens when power is applied.
What does 2/2 way solenoid valve mean?
A 2/2 way solenoid valve has two ports and two positions. It controls whether the fluid path is open or closed.
Is the VX Series direct acting or pilot operated?
The VX Series on this page uses a direct acting structure. Direct acting valves can switch the flow path directly by coil operation and are suitable for many small and medium fluid control applications.
Can the VX Series be used for steam?
Yes, the VX Series can be used for compatible steam applications when the selected seal material, temperature range, pressure, and installation direction match the working conditions.
Can the VX Series be used for oil?
Yes. It can be used for compatible oil applications, but the oil viscosity, temperature, pressure, and seal material must be confirmed before ordering.
What should be confirmed before ordering?
Please confirm the model, port size, thread type, voltage, working medium, pressure range, temperature range, seal material, flow demand, installation direction, and order quantity.
Does HOMIPNEU support OEM or distributor orders?
Yes. HOMIPNEU supports OEM and ODM orders, bulk supply, private label packaging, export cartons, and model confirmation for solenoid valves and related pneumatic components.
