Specifications
| Item | Description |
|---|---|

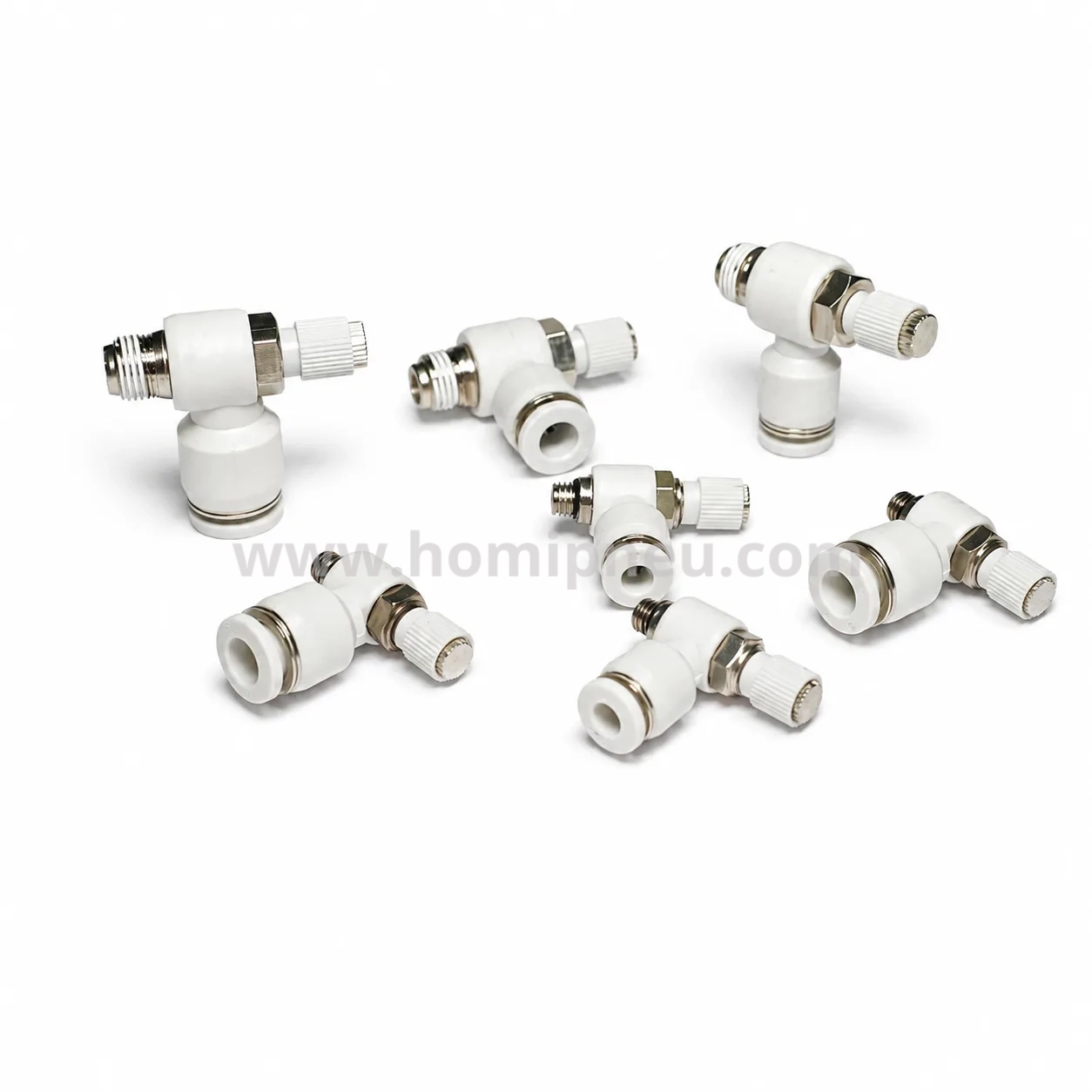

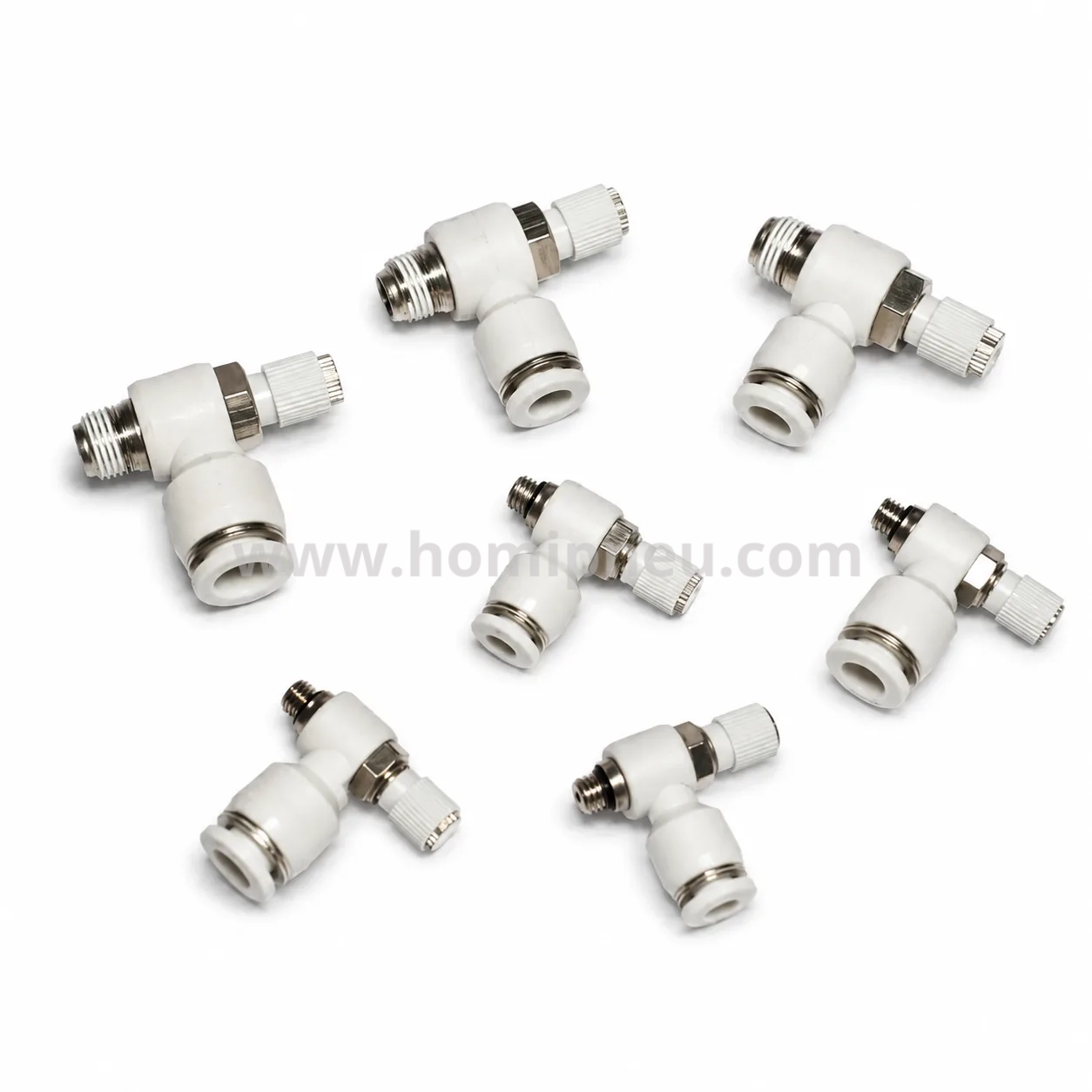

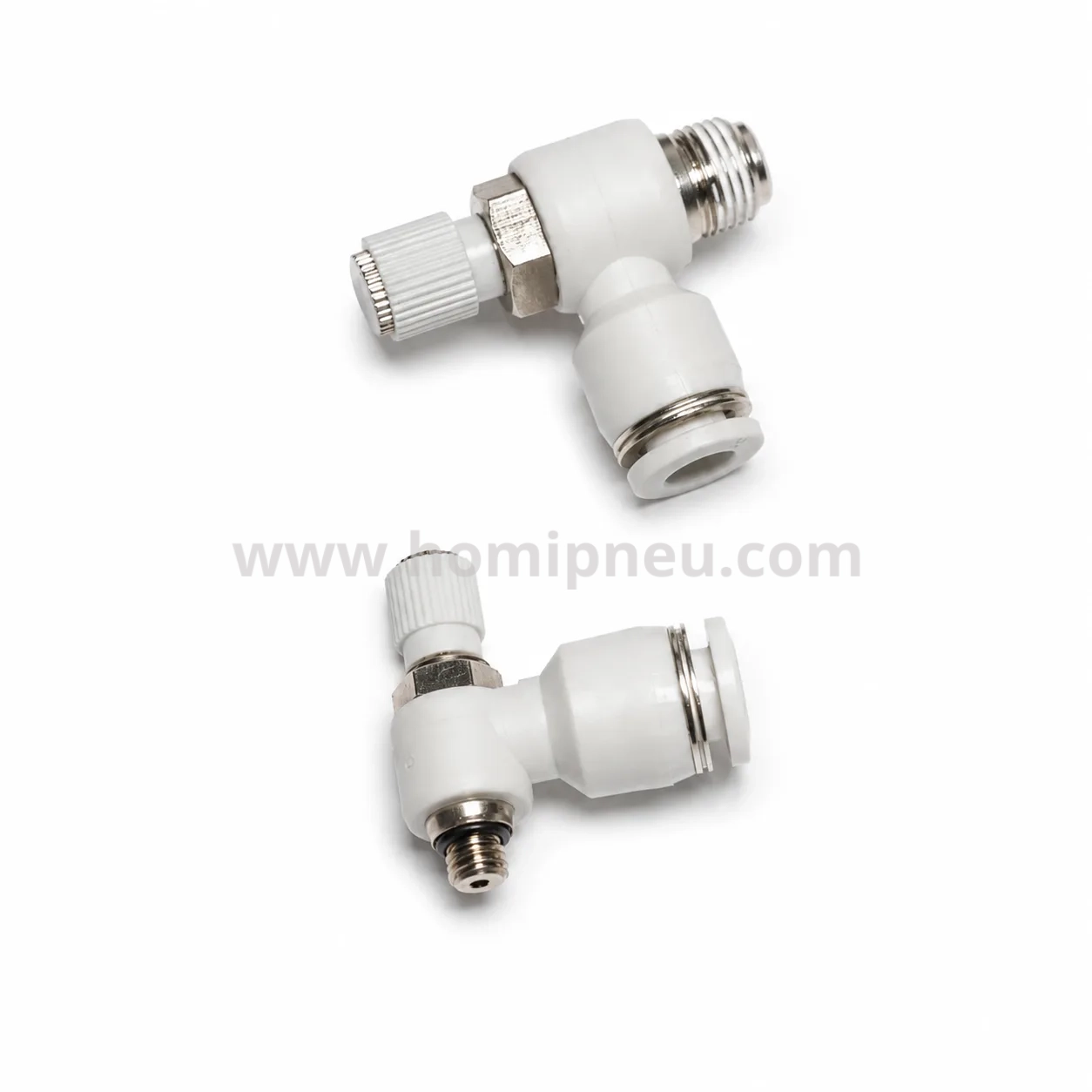

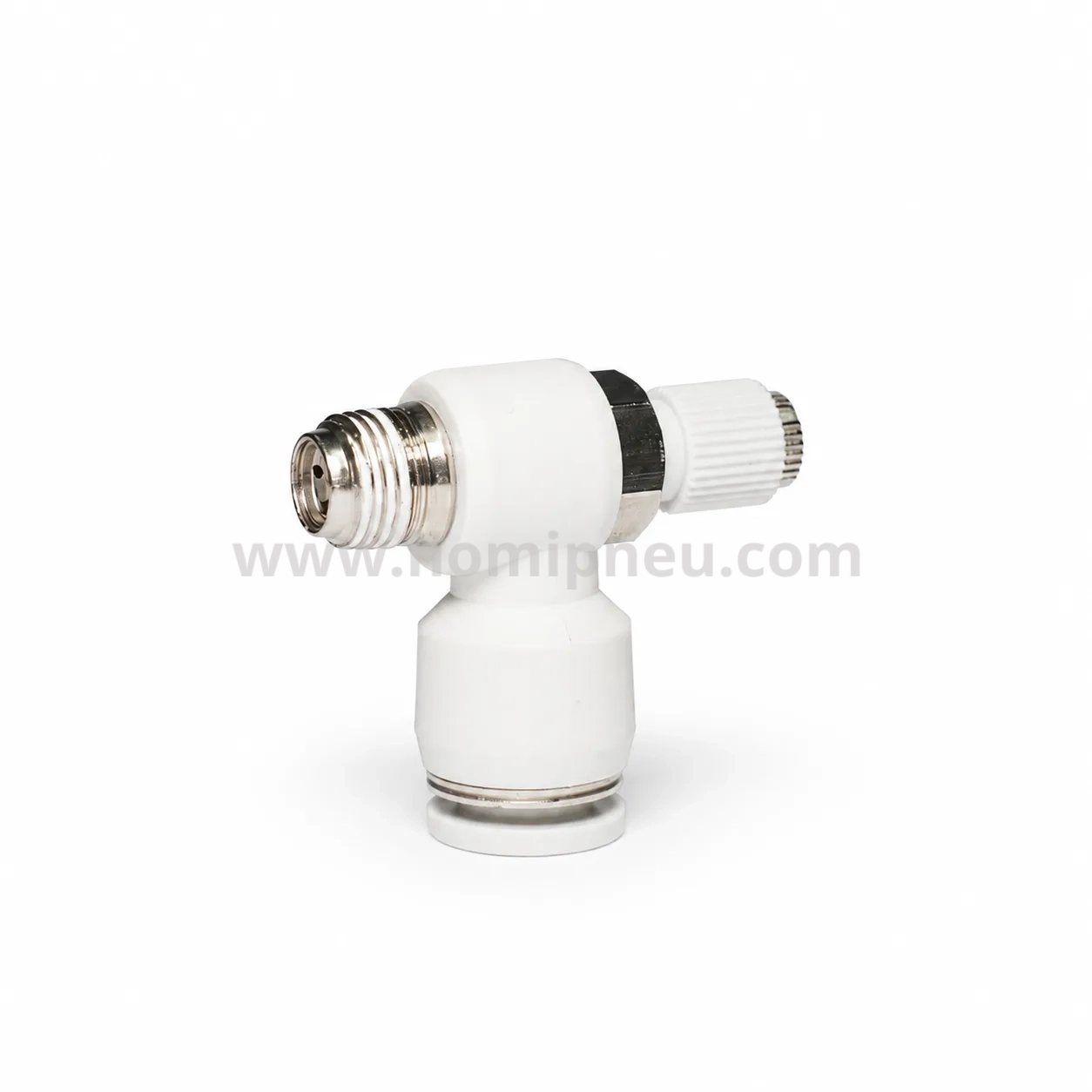

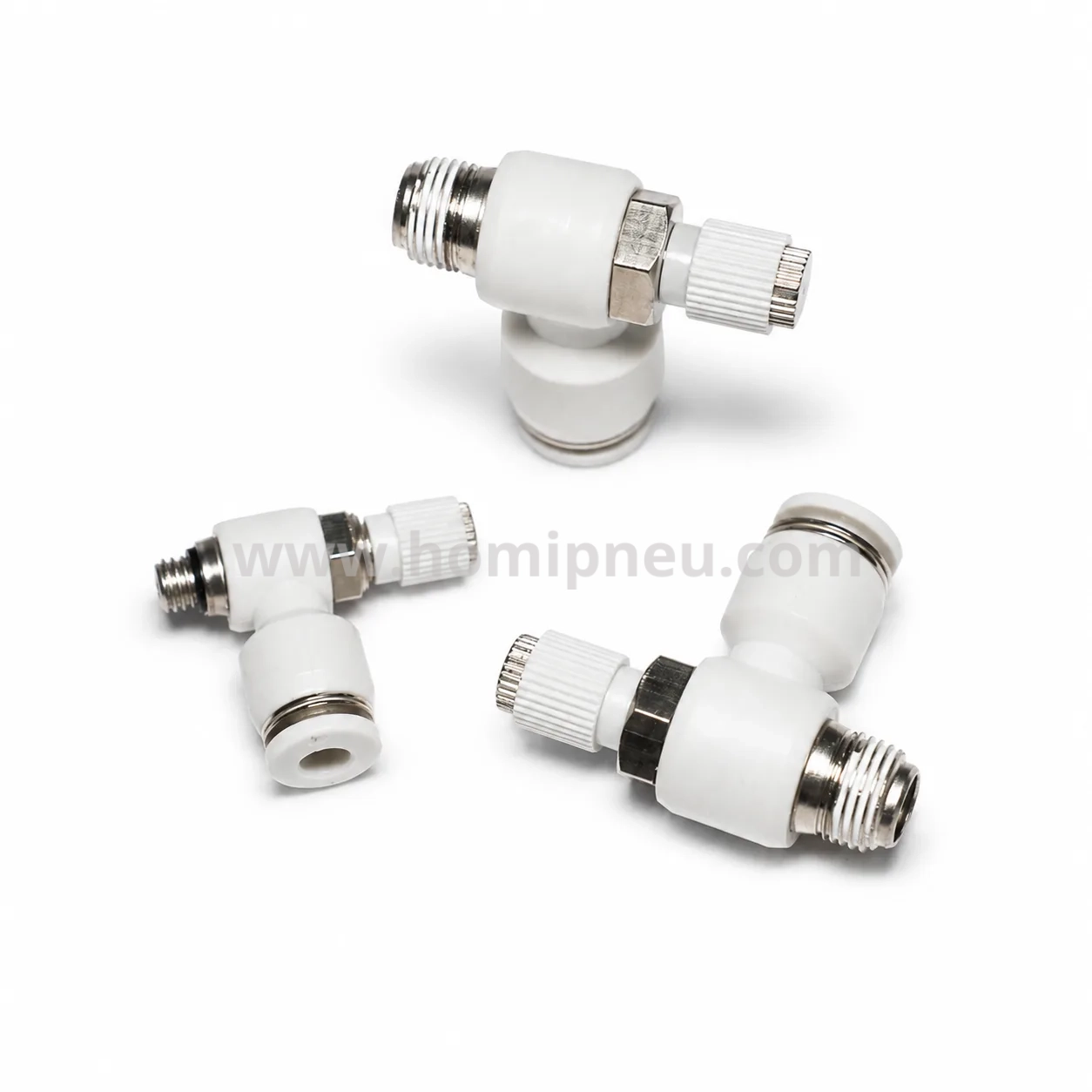

| Product Name | SL 90 Degree Elbow Pneumatic Speed Control Valve |
| Structure Type | 90 Degree Elbow |
| Control Type | Manual Flow Adjustment |
| Locking Type | Innovative Quick-Locking Mechanism |
| Function | Air Flow Control / Cylinder Speed Control |
| Application | Pneumatic Tubing and Cylinder Systems |
| Body Material | Engineering Plastic / Metal Components |
| Connection Type | One-Touch Tube Fitting |
| Working Medium | Compressed Air |
| Installation | Direct connection with pneumatic tube and threaded port |
| OEM & ODM | Available |
Conventional Locking Mechanism vs Innovative Quick-Locking Mechanism
Product Features
Innovative Quick-Locking Mechanism
The upgraded quick-locking structure allows the adjusted flow setting to be fixed quickly after adjustment. It helps reduce the risk of loosening caused by vibration or repeated machine operation.
More Stable Air Flow Control
The valve allows operators to manually adjust the air flow rate through the knob, helping achieve smooth and stable cylinder movement in pneumatic systems.
Reliable Cylinder Speed Adjustment
By controlling the air intake or exhaust flow, the valve helps regulate pneumatic cylinder speed for more consistent automation performance.
90 Degree Elbow Design
The compact elbow structure is suitable for equipment with limited installation space and helps keep pneumatic tubing arranged neatly.
One-Touch Tube Connection
The push-in tube fitting design makes installation and tube replacement simple, saving assembly and maintenance time.
Suitable for Long-Term Industrial Operation
The quick-locking design improves setting stability, making the valve more reliable for machines that operate continuously or under vibration.
Quick-Locking Mechanism vs Conventional Locking Mechanism
Traditional speed control valves usually rely on a conventional locking nut or standard locking structure to hold the adjusted position. However, during long-term use, vibration, air pressure changes, or repeated equipment movement may cause the locking structure to loosen. Once the setting changes, the air flow rate may fluctuate, which can affect cylinder speed and reduce system stability.
The new quick-locking mechanism is designed to solve this problem. After the operator adjusts the required air flow, the locking structure can quickly secure the adjustment position. This helps maintain a more stable flow setting and supports reliable pneumatic system operation.
Applications
The SL 90 Degree Elbow Speed Control Valve is widely used in:
Pneumatic cylinder speed control
Packaging machinery
Automated production lines
Assembly equipment
Pneumatic clamping systems
Conveyor systems
Material handling equipment
Industrial air control systems
OEM pneumatic equipment
Why Choose HOMIPNEU
Stable Flow Adjustment
Designed for precise air flow control and reliable pneumatic cylinder speed regulation.
Upgraded Quick-Locking Design
Compared with conventional locking mechanisms, the quick-locking structure helps keep the adjusted position more stable.
Industrial Pneumatic Compatibility
Suitable for various pneumatic tubing systems, automation equipment, and air control applications.
OEM & ODM Support
HOMIPNEU supports customized pneumatic fittings, flow control valves, packaging, and product solutions for distributors and equipment manufacturers.
FAQ
What is the function of an SL pneumatic speed control valve?
It is used to adjust compressed air flow and control the movement speed of pneumatic cylinders or actuators.
What is the advantage of the quick-locking mechanism?
The quick-locking mechanism helps secure the adjusted flow position more firmly, reducing the possibility of loosening caused by vibration or machine operation.
How does this valve control cylinder speed?
By rotating the adjustment knob, the air flow rate can be increased or reduced. This changes the cylinder’s movement speed.
Is this valve suitable for compact equipment?
Yes. The 90 degree elbow design is compact and suitable for pneumatic systems with limited installation space.
Can this product be used for OEM pneumatic equipment?
Yes. It is suitable for OEM automation equipment, pneumatic machinery, and customized air control systems.
OEM & ODM Support
HOMIPNEU provides OEM and ODM services for pneumatic speed control valves, pneumatic fittings, air hose connectors, and flow control components. Custom sizes, packaging, product appearance, and batch supply solutions are available for pneumatic distributors, machinery builders, and industrial automation suppliers.
