Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | SL |
| Structure | Male Elbow (Hex Body, 90°) |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material (Optional) | Nickel-Plated Brass / Stainless Steel |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Hex elbow pneumatic fittings with optional materials provide strong installation torque and adaptability for different industrial environments.
Model: Model: (Example PZRT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
External hex body for wrench tightening
90° elbow structure for airflow direction change
Push-to-connect quick installation
Optional material: nickel-plated brass or stainless steel
High mechanical strength and durability
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for direction change with secure threaded installation
Industrial automation equipment
Ensures stable connection under vibration or load
Air distribution systems
Supports efficient airflow routing
Machinery piping layouts
Ideal for compact and complex installations
Harsh or corrosive environments
Material options allow flexible adaptation
Product Function

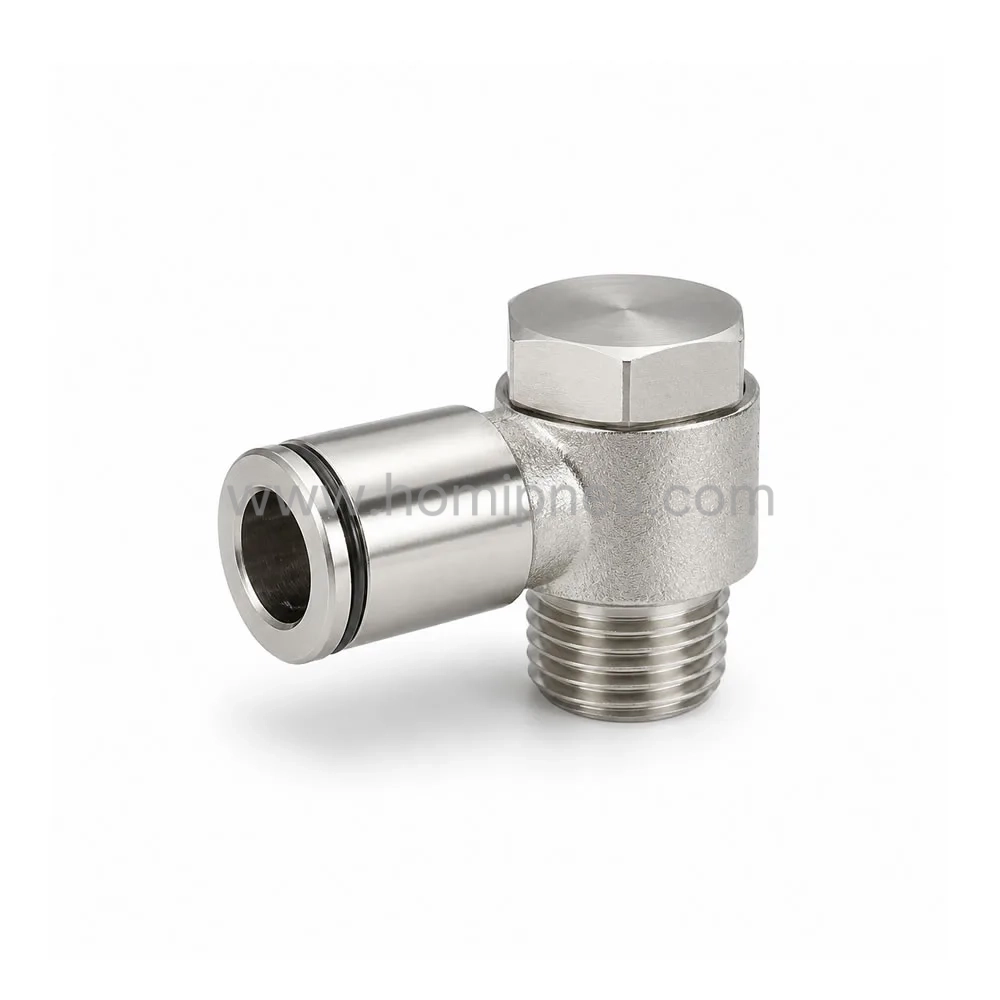

SL hex elbow fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees.
Compared with standard elbow fittings (PL / PLT), SL provides better installation control through its hex body, allowing secure tightening using tools.
Compared with straight hex fittings (SL straight type), this design adds directional flexibility, making it suitable for more complex piping systems.
With optional material selection (nickel-plated brass or stainless steel), SL fittings can meet different industrial requirements, including corrosion resistance and high-strength applications.
Product Structure & Size Range
SL4 / SL6 / SL8 / SL10 / SL12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
90° elbow configuration
External hex body design
Push-to-connect structure
Material options available
Why Choose Our Pneumatic Fittings
Professional SL pneumatic fitting manufacturer
OEM / ODM customization for hex elbow fittings
Flexible material selection for different environments
Reliable push to connect pneumatic connectors
Durable fittings for industrial applications
Fast delivery and global B2B supply support
FAQ
Q1: What is an SL pneumatic fitting?
It is a male elbow push-to-connect fitting with a hex body for wrench installation.
Q2: What is the advantage of hex elbow fittings?
They provide stronger installation torque and more secure connection compared to standard fittings.
Q3: What materials are available for SL fittings?
SL fittings are available in nickel-plated brass and stainless steel.
Q4: What is the benefit of push-to-connect design?
It allows fast installation and easy removal without tools.
Q5: What tubing is compatible with SL fittings?
They are suitable for PU tubing and nylon tubing.
