Specifications（Typical Range）
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Muffler |
| Model | SET Type |
| Structure | Exhaust Silencer |
| Connection | Thread Type |
| Installation | Exhaust Port Mounting |
| Material | Sintered Bronze |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Thread Types | M5 / G / PT / NPT |

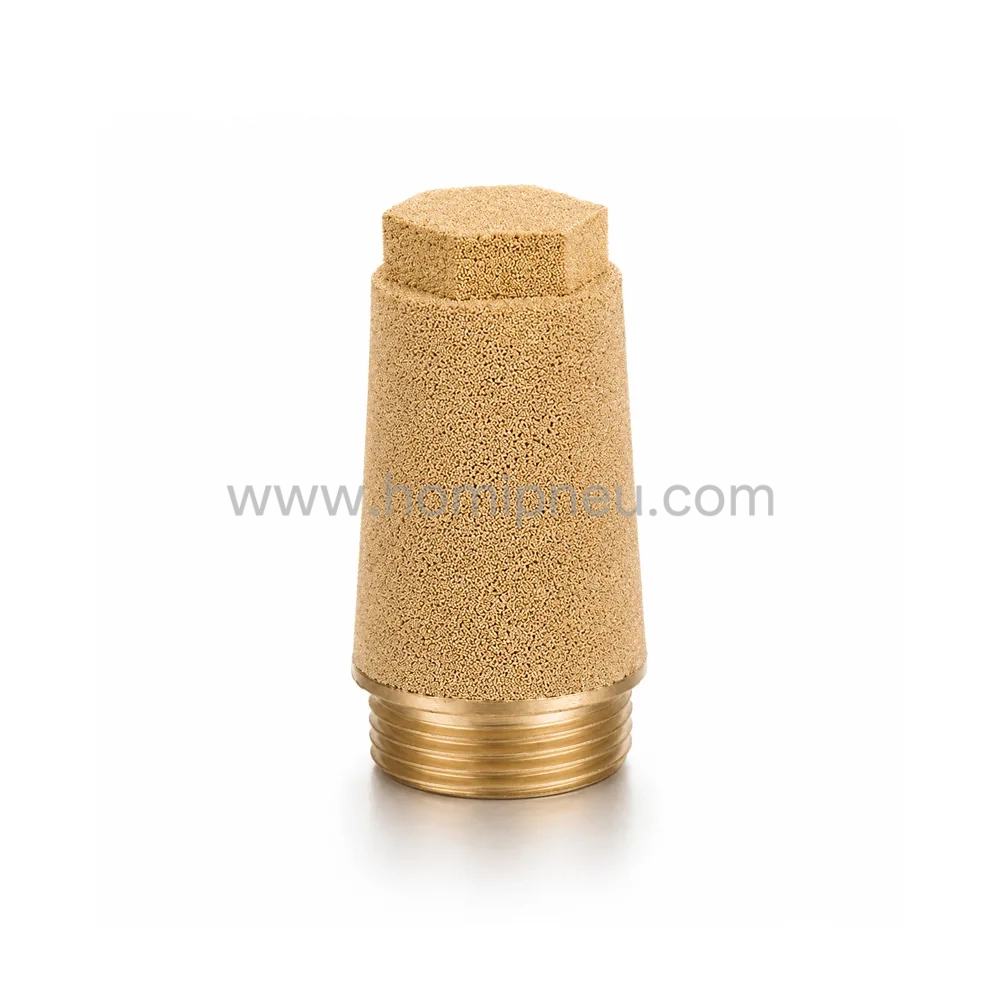

Sintered bronze pneumatic mufflers provide efficient exhaust noise reduction and stable airflow diffusion in compressed air systems.

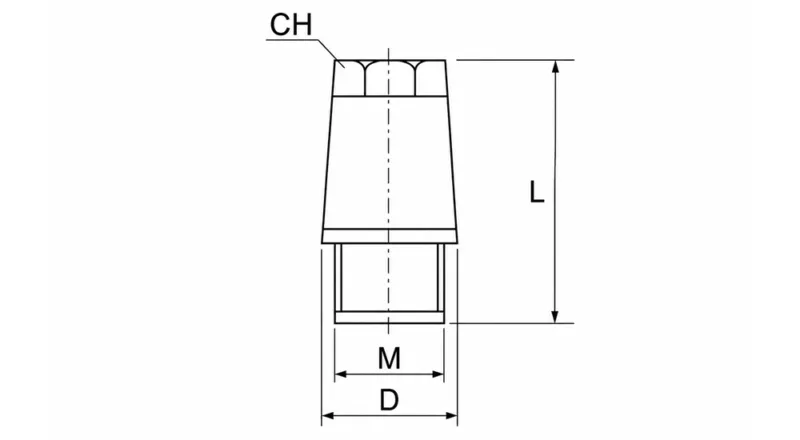

Dimension(mm)
| Model/M | L | D | CH |
| 1/8 " | 21 | 11.5 | 8 |
| 1/4 " | 28.5 | 15 | 10 |
| 3/8 " | 37 | 19 | 13 |
| 1/2 " | 47 | 23 | 14 |
| 3/4 " | 56 | 30 | 18.5 |
| 1 " | 68 | 36 | 23.5 |
Key Features
Compact exhaust silencer structure
Efficient pneumatic noise reduction
Sintered bronze airflow diffusion design
Durable and corrosion-resistant material
Easy threaded installation
Stable and reliable performance
Applications
Pneumatic control systems
Used for reducing exhaust noise from valves and cylinders
Industrial automation equipment
Improves workplace noise conditions
Compressed air systems
Ensures smoother exhaust airflow
Machinery equipment
Helps prevent dust intrusion through exhaust ports
Automation production lines
Suitable for continuous industrial operation
Product Function
SET mufflers are designed to reduce exhaust noise generated during compressed air discharge by diffusing airflow through a porous sintered bronze structure.
Compared to open exhaust ports, pneumatic mufflers help improve workplace comfort, reduce operating noise, and minimize contaminants entering pneumatic components.
Product Structure & Size Range
SET M5 / 01 / 02 / 03 / 04
Thread types: M5 / G / PT / NPT
Compact threaded structure
Porous sintered bronze silencing element
Inline exhaust installation
Why Choose Our Pneumatic Mufflers
Professional pneumatic muffler manufacturer
OEM / ODM customization for exhaust silencers
Efficient pneumatic noise reduction solution
Durable sintered bronze construction
Reliable performance for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a SET pneumatic muffler?
It is a pneumatic exhaust silencer used to reduce compressed air discharge noise.
Q2: What material is used in SET mufflers?
SET mufflers use sintered bronze material for airflow diffusion and noise reduction.
Q3: What is a pneumatic muffler used for?
It reduces exhaust noise and helps protect pneumatic systems from contaminants.
Q4: Where are SET mufflers installed?
They are typically installed on exhaust ports of pneumatic valves and cylinders.
Q5: Can SET mufflers be customized?
Yes, OEM and ODM customization is available for thread types, sizes, and configurations.
