Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PZRT |
| Structure | Male Cross (4-Way) |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass / Stainless Steel |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Cross pneumatic fittings are used to connect multiple pipes and create multi-directional flow distribution within pneumatic systems.
Model: Model: (Example PZRT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
Four-way cross structure
Allows airflow distribution in multiple directions
Push-to-connect quick installation
Compact multi-branch design
Lightweight plastic body with metal thread
Stable sealing and leak-resistant performance
Applications
Pneumatic control systems
Used for multi-direction air distribution
Industrial automation equipment
Supports complex pneumatic circuit layouts
Air distribution systems
Enables centralized airflow splitting
Machinery piping systems
Reduces the number of connectors required
Compact pneumatic installations
Ideal for multi-branch routing
Product Function

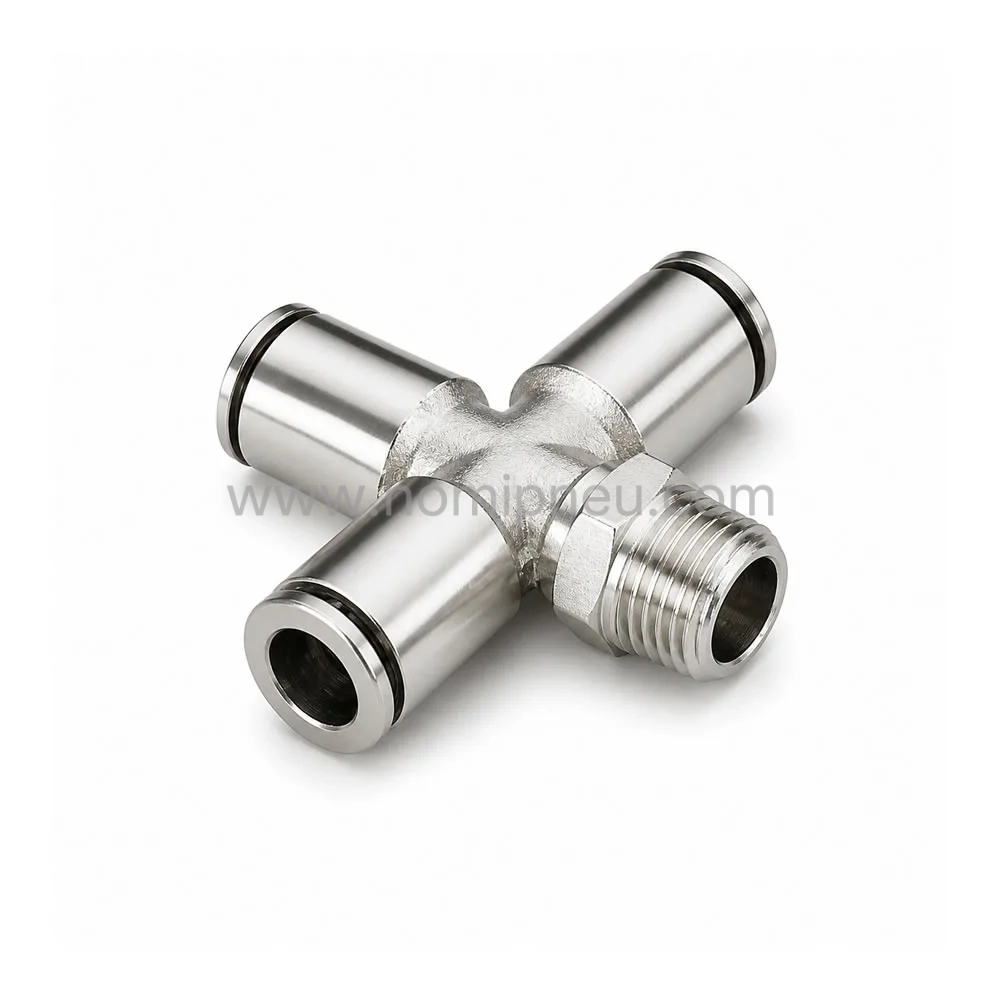

PZRT fittings are designed to connect pneumatic tubing while distributing airflow into four directions from a central point.
Compared with tee fittings (PBT / PDT), PZRT provides an additional branch, allowing more complex air distribution without increasing the number of fittings.
This helps simplify piping systems and improve layout efficiency in pneumatic circuits.
Product Structure & Size Range
PZRT4 / PZRT6 / PZRT8 / PZRT10 / PZRT12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
Four-way cross structure
Push-to-connect design
Why Choose Our Pneumatic Fittings
Professional PZRT pneumatic fitting manufacturer
OEM / ODM customization for cross fittings
Efficient multi-direction air distribution solution
Reliable push to connect pneumatic connectors
Durable fittings for industrial applications
Fast delivery and global B2B supply support
FAQ
Q1: What is a PZRT pneumatic fitting?
It is a male cross push-to-connect fitting used for four-way airflow distribution.
Q2: What is a cross pneumatic fitting used for?
It is used to connect and distribute air into multiple directions in pneumatic systems.
Q3: What is the difference between tee and cross fittings?
A tee splits airflow into two directions, while a cross fitting splits it into three or more directions.
Q4: What tubing is compatible with PZRT fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Can PZRT fittings be customized?
Yes, OEM and ODM customization is available.
CTA
Looking for reliable PZRT pneumatic cross fittings for multi-direction airflow distribution?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
