Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass + PBT Plastic |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |

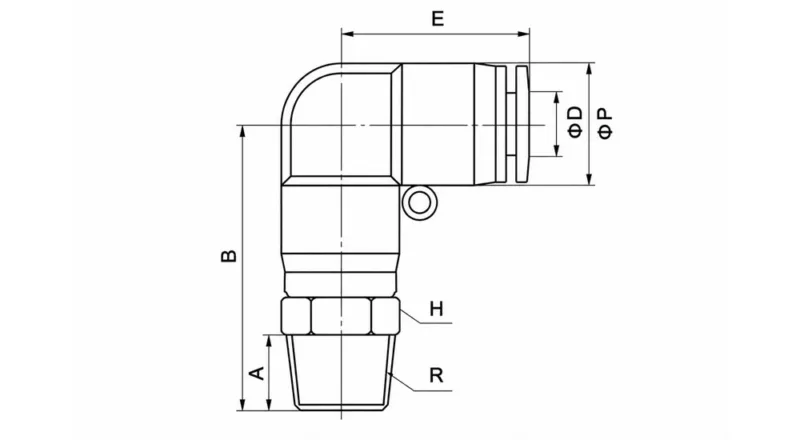

| Model | ΦD | B | E | R | A | ΦP | H |
| NHRL4-M5 | 4 | 29.5 | 19.5 | M5 | 4 | 13 | 8 |
| NHRL4-01 | 4 | 33 | 19.5 | R1/8 | 7.5 | 13 | 12 |
| NHRL4-02 | 4 | 35.5 | 19.5 | R1/4 | 10 | 13 | 14 |
| NHRL6-M5 | 6 | 29.5 | 20 | M5 | 4 | 13 | 8 |
| NHRL6-01 | 6 | 33 | 20 | R1/8 | 7.5 | 13 | 12 |
| NHRL6-02 | 6 | 35.5 | 20 | R1/4 | 10 | 13 | 14 |
| NHRL6-03 | 6 | 38.5 | 21.5 | R3/8 | 10.5 | 15 | 17 |
| NHRL6-04 | 6 | 40 | 21.5 | R1/2 | 12 | 15 | 21 |
| NHRL8-01 | 8 | 35.5 | 22 | R1/8 | 7.5 | 15 | 14 |
| NHRL8-02 | 8 | 38 | 22 | R1/4 | 10 | 15 | 14 |
| NHRL8-03 | 8 | 38.5 | 22 | R3/8 | 10.5 | 15 | 17 |
| NHRL8-04 | 8 | 40 | 22 | R1/2 | 12 | 15 | 21 |
| NHRL10-01 | 10 | 39 | 26 | R1/8 | 7.5 | 18.5 | 17 |
| NHRL10-02 | 10 | 41.5 | 26 | R1/4 | 10 | 18.5 | 17 |
| NHRL10-03 | 10 | 42 | 26 | R3/8 | 10.5 | 18.5 | 17 |
| NHRL10-04 | 10 | 43.5 | 26 | R1/2 | 12 | 18.5 | 21 |
| NHRL12-01 | 12 | 41 | 28 | R1/8 | 7.5 | 21 | 17 |
| NHRL12-02 | 12 | 43.5 | 28 | R1/4 | 10 | 21 | 17 |
| NHRL12-03 | 12 | 44 | 28 | R3/8 | 10.5 | 21 | 17 |
| NHRL12-04 | 12 | 45.5 | 28 | R1/2 | 12 | 21 | 21 |
Key Features
- 90° elbow + rotary swivel combined design
- Nickel-plated brass for corrosion resistance
- Allows continuous rotation during operation
- Reduces tube twisting and mechanical stress
- Push-to-connect quick installation
Applications
- Pneumatic automation systems
- Robotic arms and moving equipment
- Industrial machinery
- Rotating pneumatic devices
- Flexible air piping systems
Widely used in pneumatic systems requiring direction change, anti-twist performance, and durable metal fittings for dynamic environments.
Product Function

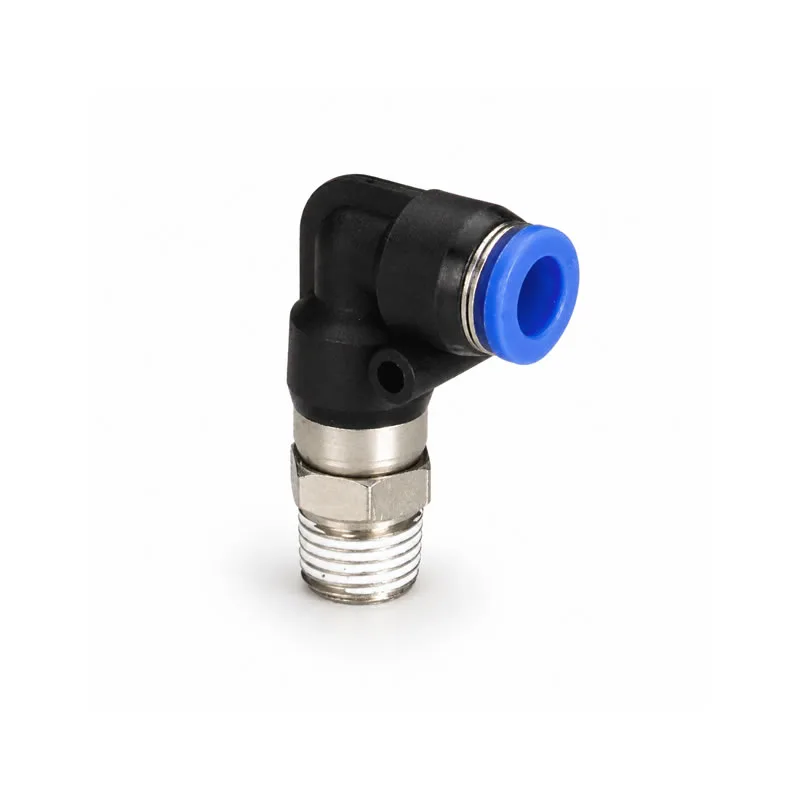

NHRL fittings are designed to change airflow direction by 90° while allowing tubing to rotate freely, preventing hose twisting and extending system service life.
Compared to straight rotary fittings (NHRC), NHRL provides both rotation and directional control, making it ideal for compact and dynamic piping layouts.
Product Structure & Size Range
- NHRL4 / NHRL6 / NHRL8 / NHRL10 / NHRL12
- Tube sizes: 4mm → 12mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Rotary elbow + threaded structure
Why Choose Our Pneumatic Fittings
- Professional NHRL pneumatic fitting manufacturer with rotary expertise
- OEM / ODM customization for nickel plated brass swivel elbow fittings
- Reliable anti-twist pneumatic connector for automation systems
- High-quality metal fittings with corrosion resistance and long lifespan
- Durable rotary elbow fittings for dynamic industrial applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is an NHRL pneumatic fitting?
It is a nickel-plated brass rotary elbow push-to-connect fitting that allows tubing to rotate while changing direction.
Q2: What is the advantage of a rotary elbow fitting?
It reduces tube twisting, improves flexibility, and extends system lifespan.
Q3: Why use nickel-plated brass fittings?
They offer corrosion resistance, higher strength, and better durability than plastic fittings.
Q4: What tubing is compatible with NHRL fittings?
NHRL fittings are suitable for PU tube and nylon tube.
Q5: Can NHRL fittings be customized?
Yes, OEM/ODM customization is available for size, thread type, and materials.
