Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Valve |
| Structure | Hand Valve (2/2 or 3/2 Way) |
| Connection | Thread to Thread (Male) |
| Thread Type | G / NPT / R |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Max Pressure | Up to 1.5 MPa |
| Temperature Range | 0 – 60°C |
| Applicable System | Compressed Air |
| Model | E | R1 | A | H1 | B | R2 | A2 | H2 |
| HVSS01-01 | 40 | R1/8 | 7 | 12 | 60 | R1/8 | 7 | 12 |
| HVSS02-01 | 40 | R1/4 | 8 | 14 | 61 | R1/8 | 7 | 12 |
| HVSS02-02 | 42.5 | R1/4 | 8 | 14 | 66 | R1/4 | 8 | 14 |
| HVSS03-02 | 42.5 | R3/8 | 9 | 17 | 76 | R1/4 | 8 | 17 |
| HVSS03-03 | 42.5 | R3/8 | 9 | 17 | 77 | R3/8 | 9 | 17 |
| HVSS04-03 | 42.5 | R1/2 | 10 | 21 | 78.5 | R3/8 | 9 | 17 |
| HVSS04-04 | 44.5 | R1/2 | 10 | 21 | 82.5 | R1/2 | 10 | 21 |
Key Features
- Dual male thread inline valve design
- Manual air shut-off control
- Nickel-plated brass for corrosion resistance
- High strength and long service life
- Simple and reliable on/off operation
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Maintenance isolation systems
- Control panels and equipment
Widely used in pneumatic systems requiring manual airflow control, inline installation, and durable metal valve construction.
Product Function

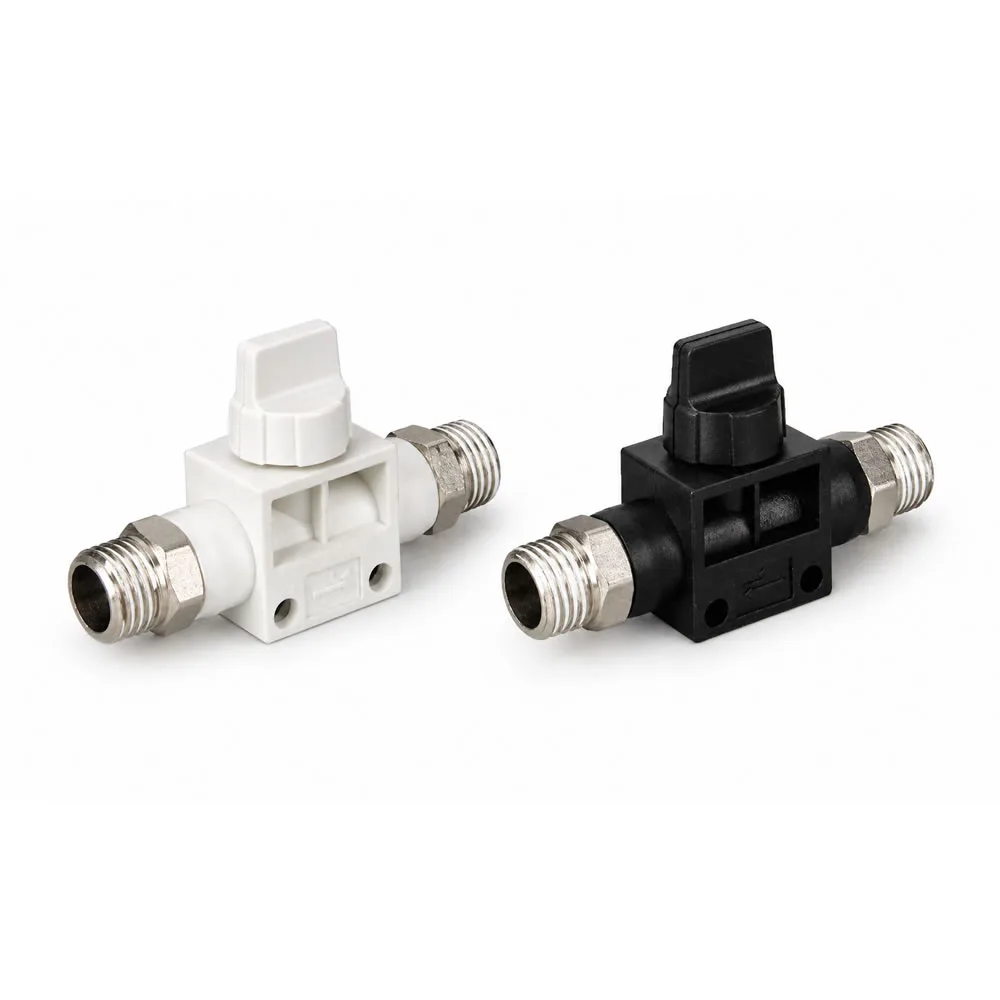

HVSS valves are designed to manually control compressed air flow between threaded connections, allowing operators to isolate or restore airflow quickly.
In 2-way configurations, the valve can release downstream pressure when switched off, improving safety during maintenance and system adjustments
Product Structure & Size Range
- HVSS01 / HVSS02 / HVSS03 / HVSS04
- Thread sizes: R1/8, R1/4, R3/8, R1/2
- Dual male thread inline structure
- Compact manual valve design
Why Choose Our Pneumatic Fittings
- Professional HVSS pneumatic valve manufacturer with full product range
- OEM / ODM customization for nickel plated brass hand valves
- Reliable air shut-off valve for automation and compressed air systems
- High-quality metal pneumatic valves with strict QC system
- Durable manual control valves for industrial environments
- Fast delivery and global B2B supply support
FAQ
Q1: What is an HVSS pneumatic valve?
It is a nickel-plated brass male thread hand valve used to manually control airflow in pneumatic systems.
Q2: What is the difference between HVSF and HVSS valves?
HVSF connects tube to thread, while HVSS is a thread-to-thread inline valve.
Q3: What is a pneumatic hand valve used for?
It is used to manually turn compressed air on or off for system control and safety.
Q4: What is the advantage of nickel-plated brass valves?
They provide corrosion resistance, durability, and long service life in industrial environments.
Q5: Can HVSS valves be customized?
Yes, OEM/ODM customization is available for thread type, size, and valve configuration.
