Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PLT |

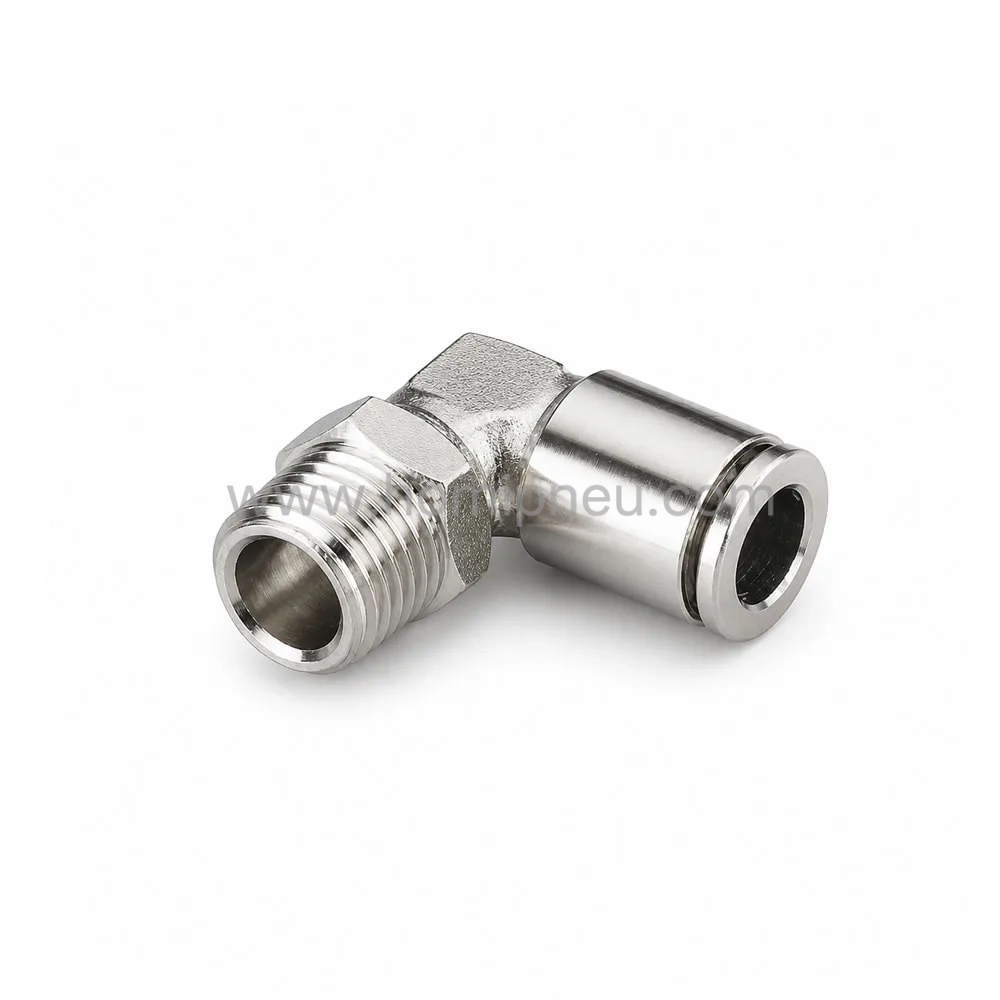

| Structure | Male Thread Elbow (90°) |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Nickel-plated brass elbow pneumatic fittings provide reliable sealing and corrosion resistance in air systems.
Model: Model: (Example PLT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
90° elbow structure for airflow direction change
Male thread connection design
Push-to-connect quick installation
Nickel-plated brass construction
Compact design for limited space
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for changing airflow direction while connecting to threaded ports
Industrial automation equipment
Supports efficient tube routing in machinery
Air distribution systems
Ensures smooth airflow direction change
Compact machinery layouts
Ideal for space-constrained installations
Equipment piping systems
Reduces complexity in tube routing
Product Function
PLT fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees.
Compared with straight fittings (PC / PCT), PLT provides directional control, making it essential for compact system layouts.
Compared with tee fittings (PE / PB), PLT does not split airflow but redirects it, simplifying piping design.
Product Structure & Size Range
PLT4 / PLT6 / PLT8 / PLT10 / PLT12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
90° elbow configuration
Push-to-connect design
Why Choose Our Pneumatic Fittings
Professional PLT pneumatic fitting manufacturer
OEM / ODM customization for elbow pneumatic fittings
Reliable tube-to-thread connection solution
Durable nickel plated brass fittings for industrial use
Efficient airflow direction control
Fast delivery and global B2B supply support
FAQ
Q1: What is a PLT pneumatic fitting?
It is a male thread elbow push-to-connect fitting used for 90-degree tube connection.
Q2: What is an elbow pneumatic fitting used for?
It is used to change airflow direction in pneumatic systems.
Q3: What is the difference between PL and PLT fittings?
PL is a tube elbow fitting, while PLT connects tubing to threaded ports with an elbow structure.
Q4: What tubing is compatible with PLT fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Can PLT fittings be customized?
Yes, OEM and ODM customization is available for size and thread types.
