Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PLFT |

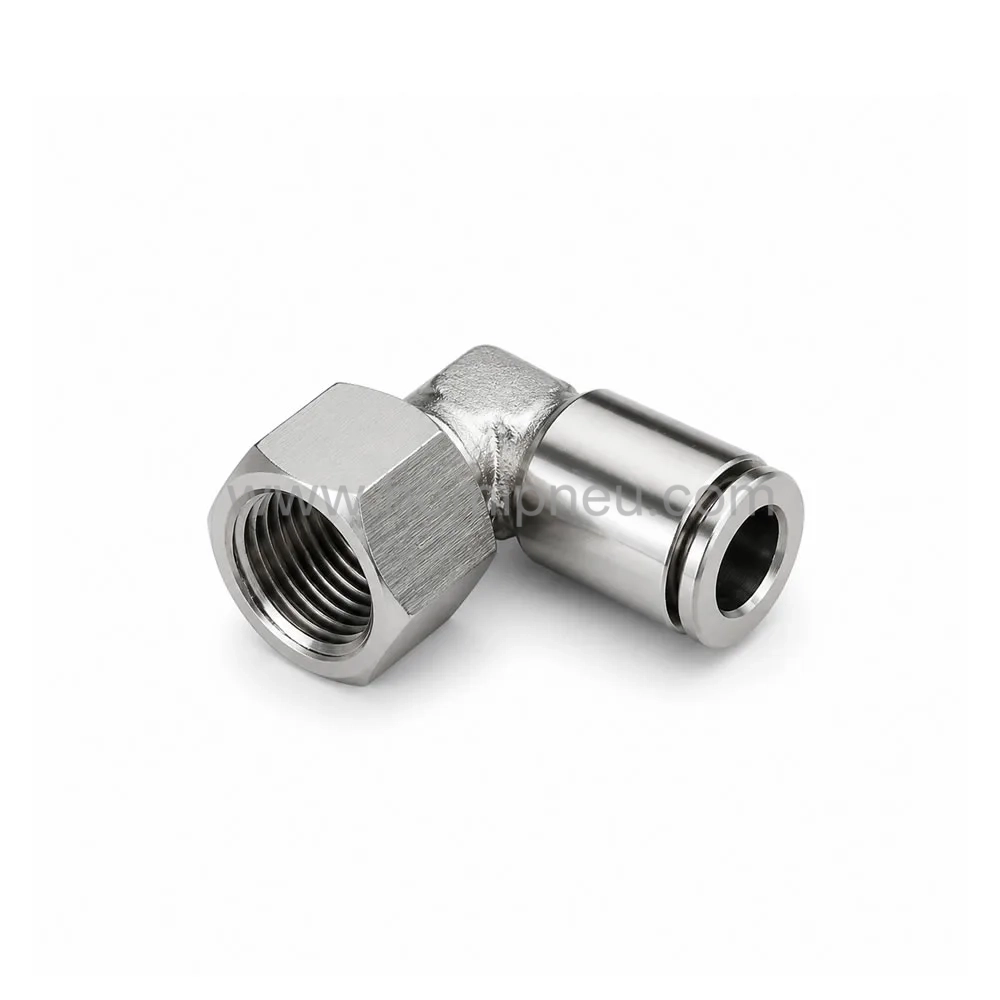

| Structure | Female Thread Elbow (90°) |
| Connection | Tube to Female Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Push-to-connect elbow pneumatic fittings are widely used for direction change and compact piping in air systems.
Model: Model: (Example PLFT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
90° elbow structure for airflow direction change
Female thread connection design
Push-to-connect quick installation
Nickel-plated brass for corrosion resistance
Compact design for limited space
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for tube connection to female threaded ports with direction change
Industrial automation equipment
Supports efficient tube routing in machinery
Air distribution systems
Ensures smooth airflow redirection
Compact machinery layouts
Ideal for space-constrained installations
Equipment piping systems
Reduces complexity in tubing design
Product Function
PLFT fittings are designed to connect pneumatic tubing to female threaded ports while changing airflow direction by 90 degrees.
Compared with straight fittings (PC / PCFT), PLFT provides directional control, making it essential for compact layouts.
Compared with male elbow fittings (PL / PLT), PLFT is specifically used where internal thread connection is required, offering more flexibility in system integration.
Product Structure & Size Range
PLFT4 / PLFT6 / PLFT8 / PLFT10 / PLFT12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
90° elbow configuration
Push-to-connect design
Why Choose Our Pneumatic Fittings
Professional PLFT pneumatic fitting manufacturer
OEM / ODM customization for elbow pneumatic fittings
Reliable female thread connection solution
Durable nickel plated brass fittings for industrial use
Efficient airflow direction control
Fast delivery and global B2B supply support
FAQ
Q1: What is a PLFT pneumatic fitting?
It is a female thread elbow push-to-connect fitting used for 90-degree tube connection.
Q2: What is a female thread elbow fitting used for?
It connects tubing to internal threaded ports while changing airflow direction.
Q3: What is the difference between PLT and PLFT fittings?
PLT uses male threads, while PLFT uses female threads.
Q4: What tubing is compatible with PLFT fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Can PLFT fittings be customized?
Yes, OEM and ODM customization is available for size and thread types.
