Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PDT |
| Structure | Side Branch Tee |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass / Stainless Steel |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Side tee pneumatic fittings are commonly used for compact air distribution where space constraints require offset branching.
Model: Model: (Example PDT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
Side branch tee structure (offset design)
Allows lateral airflow distribution
Push-to-connect quick installation
Compact design for limited space
Lightweight plastic body with brass thread
Stable sealing and leak-resistant performance
Applications
Pneumatic control systems
Used for lateral air distribution from main pipelines
Industrial automation equipment
Supports compact branching layouts
Air distribution systems
Enables efficient airflow splitting in limited space
Machinery piping systems
Reduces piping congestion
Compact pneumatic installations
Ideal for offset connection requirements
Product Function

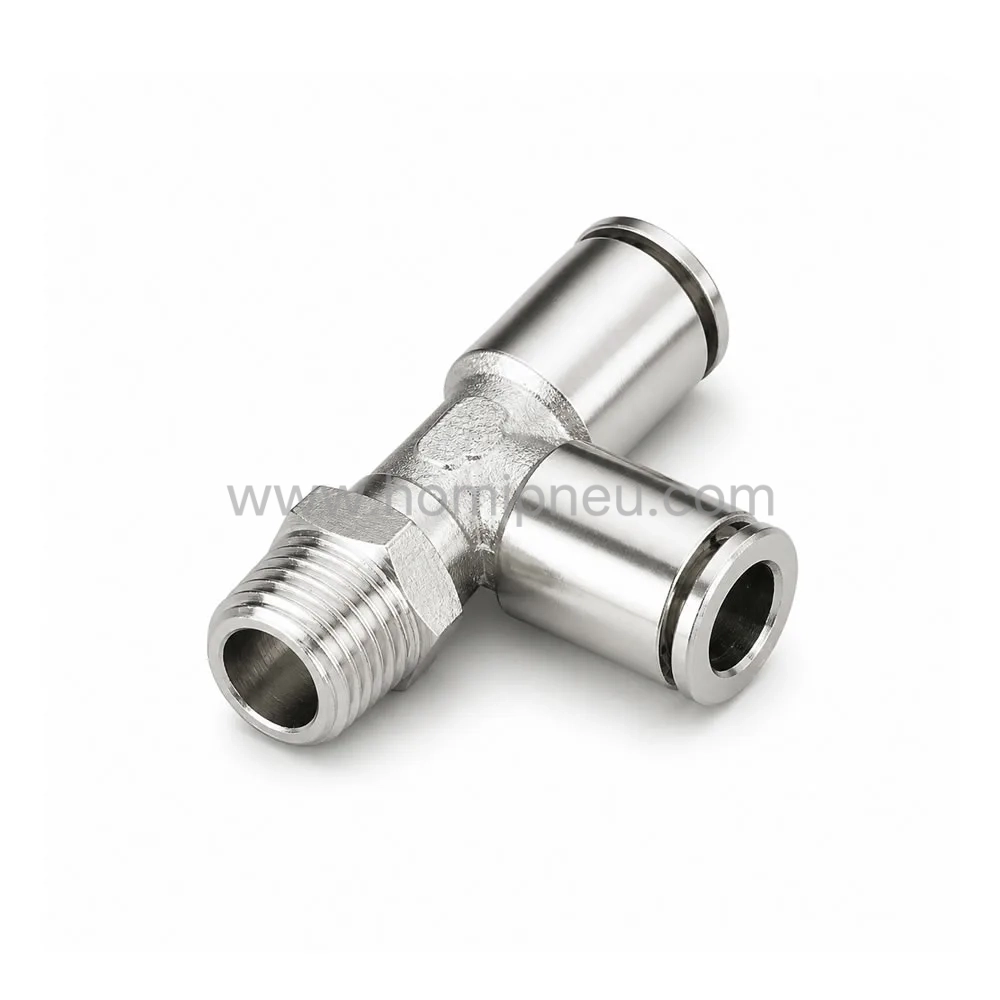

PDT fittings are designed to connect pneumatic tubing while splitting airflow from the main line through a side branch.
Compared with standard tee fittings (PBT), PDT provides an offset structure, allowing more flexible installation in compact or asymmetric layouts.
This helps optimize pipeline routing and reduces space usage in pneumatic systems.
Product Structure & Size Range
PDT4 / PDT6 / PDT8 / PDT10 / PDT12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
Side branch tee structure
Push-to-connect design
Why Choose Our Pneumatic Fittings
Professional PDT pneumatic fitting manufacturer
OEM / ODM customization for side tee fittings
Compact airflow distribution solution
Reliable push to connect pneumatic connectors
Durable fittings for industrial applications
Fast delivery and global B2B supply support
FAQ
Q1: What is a PDT pneumatic fitting?
It is a side branch tee push-to-connect fitting used for offset airflow distribution.
Q2: What is the difference between PBT and PDT fittings?
PBT is a standard symmetrical tee, while PDT is a side tee with an offset branch.
Q3: What is a side tee fitting used for?
It is used when airflow needs to branch from the side of the main pipeline.
Q4: What tubing is compatible with PDT fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Can PDT fittings be customized?
Yes, OEM and ODM customization is available.
