Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | PBT |

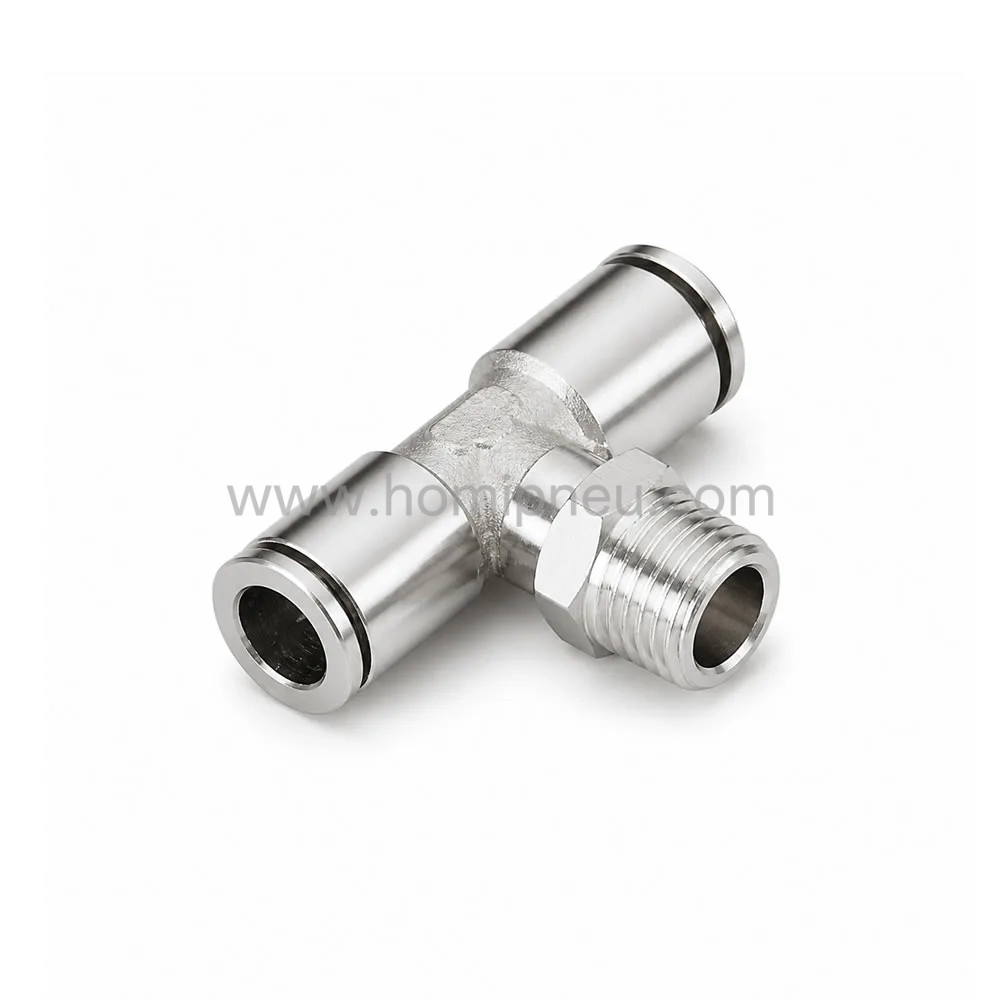

| Structure | Male Branch Tee (T-Type) |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass / Stainless Steel |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Push-to-connect tee pneumatic fittings are widely used to create branch connections and distribute compressed air efficiently in pneumatic circuits.
Model: Model: (Example POCT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
T-shaped branch tee structure
Allows airflow distribution into two directions
Push-to-connect quick installation
Nickel-plated brass thread for durability
Engineering plastic body for lightweight design
Stable sealing and leak-resistant performance
Applications
Pneumatic control systems
Used for distributing airflow into multiple directions
Industrial automation equipment
Supports branching air connections in machinery
Air distribution systems
Ensures efficient air splitting in pipelines
Machinery piping layouts
Reduces complexity of tubing systems
Compact pneumatic installations
Ideal for space-saving air routing
Product Function
PBT fittings are designed to connect pneumatic tubing to threaded ports while splitting airflow into two directions.
Compared with straight fittings (PC / PCT), PBT provides airflow distribution capability, reducing the need for additional connectors and simplifying system design.
Compared with elbow fittings (PL / PLT), PBT does not change direction only—it enables branching, making it essential in pneumatic circuit design.
Product Structure & Size Range
PBT4 / PBT6 / PBT8 / PBT10 / PBT12
Tube sizes: 4mm → 12mm
Thread types: M5 / G / R / NPT
T-type branch structure
Push-to-connect design
Why Choose Our Pneumatic Fittings
Professional PBT pneumatic fitting manufacturer
OEM / ODM customization for pneumatic tee fittings
Reliable airflow distribution connector
Durable nickel plated brass threaded components
Efficient solution for pneumatic branching systems
Fast delivery and global B2B supply support
FAQ
Q1: What is a PBT pneumatic fitting?
It is a male branch tee push-to-connect fitting used for airflow distribution.
Q2: What is a pneumatic tee fitting used for?
It is used to split one air line into multiple directions in pneumatic systems.
Q3: What is the advantage of PBT fittings?
They combine connection and air distribution in one fitting, simplifying piping design.
Q4: What tubing is compatible with PBT fittings?
They are suitable for PU tubing and nylon tubing.
Q5: Can PBT fittings be customized?
Yes, OEM and ODM customization is available for size and thread types.
