Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | Rotary Elbow (90° + Swivel) |
| Connection | Tube to Thread |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 0.9 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU Tube |
Rotary elbow fittings provide smooth rotation, reduce tube stress, and improve system flexibility in dynamic pneumatic systems.
| Model | ΦD | B | E | R | A | ΦP | H |
| NHRL4-M5 | 4 | 29.5 | 19.5 | M5 | 4 | 13 | 8 |
| NHRL4-01 | 4 | 33 | 19.5 | R1/8 | 7.5 | 13 | 12 |
| NHRL4-02 | 4 | 35.5 | 19.5 | R1/4 | 10 | 13 | 14 |
| NHRL6-M5 | 6 | 29.5 | 20 | M5 | 4 | 13 | 8 |
| NHRL6-01 | 6 | 33 | 20 | R1/8 | 7.5 | 13 | 12 |
| NHRL6-02 | 6 | 35.5 | 20 | R1/4 | 10 | 13 | 14 |
| NHRL6-03 | 6 | 38.5 | 21.5 | R3/8 | 10.5 | 15 | 17 |
| NHRL6-04 | 6 | 40 | 21.5 | R1/2 | 12 | 15 | 21 |
| NHRL8-01 | 8 | 35.5 | 22 | R1/8 | 7.5 | 15 | 14 |
| NHRL8-02 | 8 | 38 | 22 | R1/4 | 10 | 15 | 14 |
| NHRL8-03 | 8 | 38.5 | 22 | R3/8 | 10.5 | 15 | 17 |
| NHRL8-04 | 8 | 40 | 22 | R1/2 | 12 | 15 | 21 |
| NHRL10-01 | 10 | 39 | 26 | R1/8 | 7.5 | 18.5 | 17 |
| NHRL10-02 | 10 | 41.5 | 26 | R1/4 | 10 | 18.5 | 17 |
| NHRL10-03 | 10 | 42 | 26 | R3/8 | 10.5 | 18.5 | 17 |
| NHRL10-04 | 10 | 43.5 | 26 | R1/2 | 12 | 18.5 | 21 |
| NHRL12-01 | 12 | 41 | 28 | R1/8 | 7.5 | 21 | 17 |
| NHRL12-02 | 12 | 43.5 | 28 | R1/4 | 10 | 21 | 17 |
| NHRL12-03 | 12 | 44 | 28 | R3/8 | 10.5 | 21 | 17 |
| NHRL12-04 | 12 | 45.5 | 28 | R1/2 | 12 | 21 | 21 |

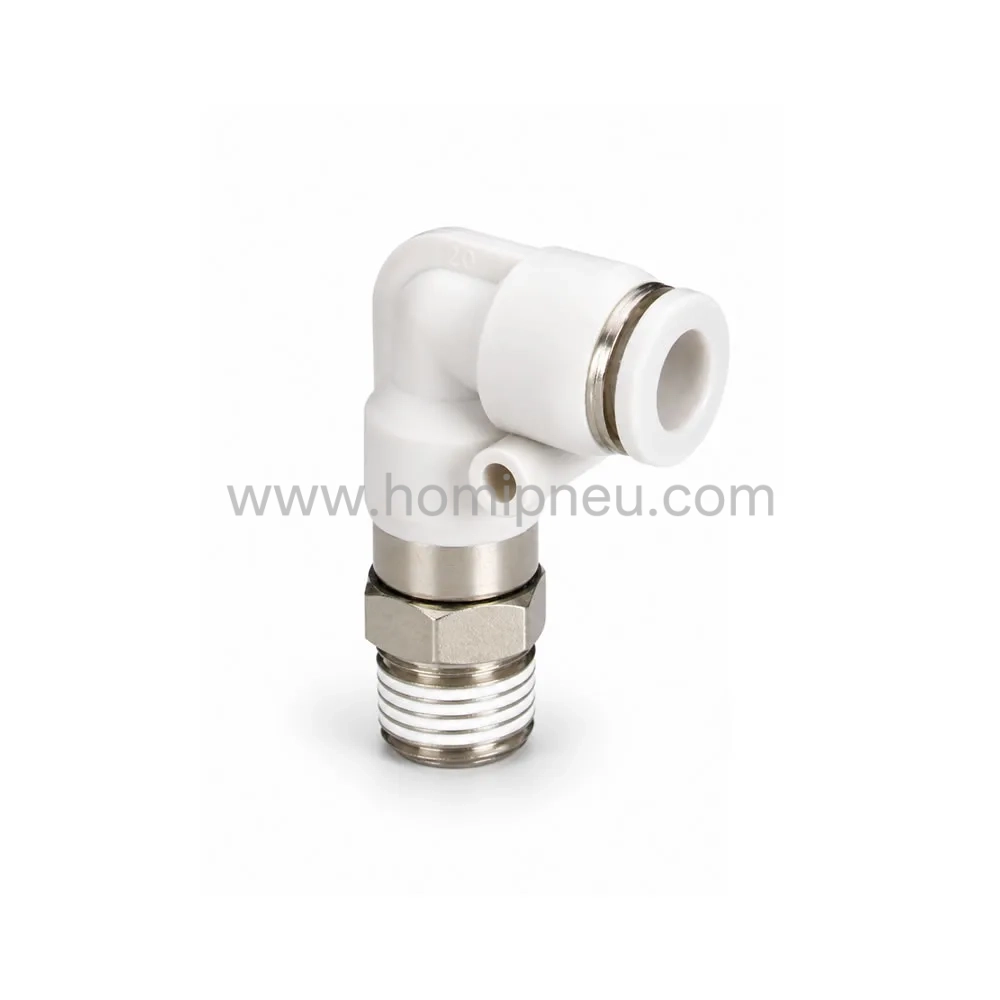

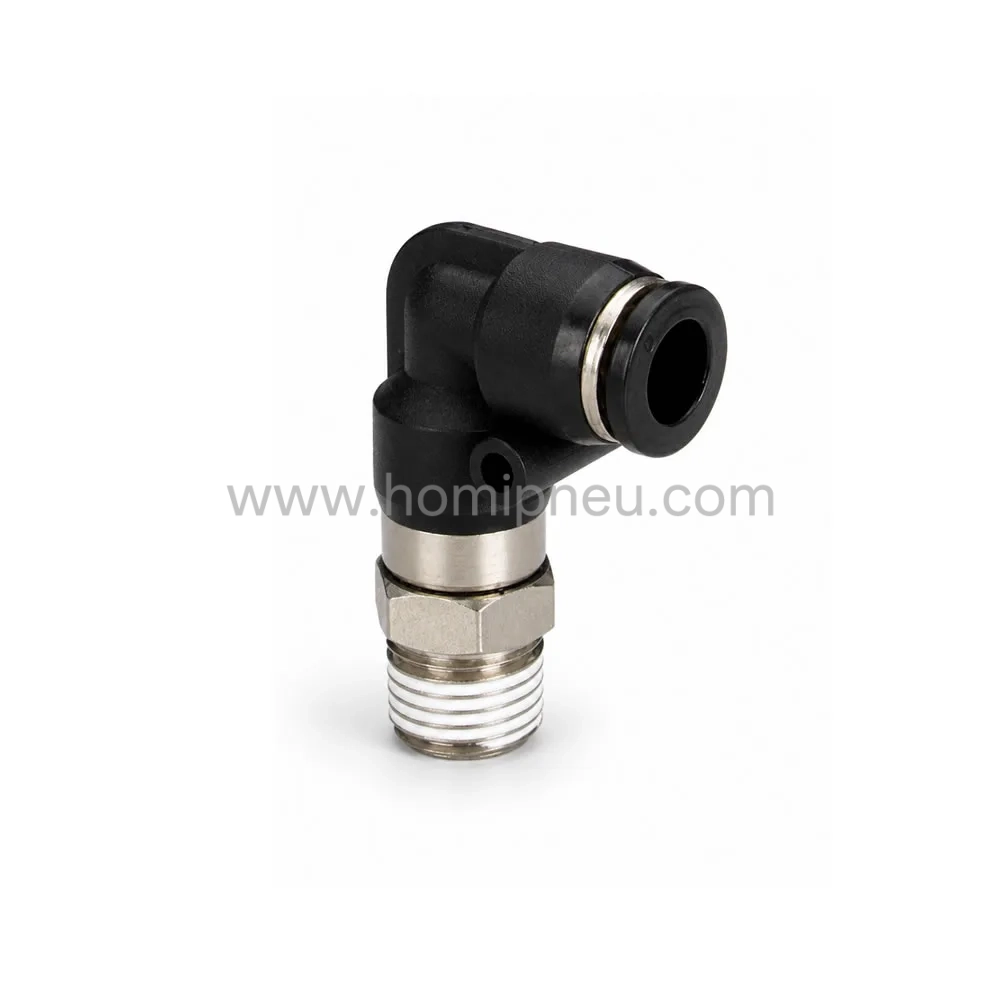

Color options available:
Key Features
- 90° elbow + 360° swivel rotation
- Reduces tube twisting and mechanical stress
- Suitable for dynamic and moving systems
- Push-to-connect quick installation
- Nickel-plated brass body for durability
- Stable and leak-resistant sealing
Applications
Automation equipment
Used in moving parts requiring flexible airflow routing
Robotic systems
Prevents tube twisting during continuous motion
Pneumatic control systems
Ensures stable airflow with dynamic movement
Rotating machinery
Supports rotation and airflow direction change
Industrial equipment
Improves durability in high-motion environments
Product Function
NHRL pneumatic fittings are designed to connect pneumatic tubing while allowing both airflow direction change and free rotation.
This dual function significantly improves system flexibility and reduces wear compared to standard elbow fittings.
Compared with:
- PL (Standard Elbow) → fixed direction only
- NHRL (Rotary Elbow) → direction + rotation
- NHRC (High-speed rotary) → enhanced rotation performance
NHRL is ideal for applications where tubing must move, rotate, or operate under continuous motion.
Product Structure & Size Range
- Models: NHRL4 / NHRL6 / NHRL8 / NHRL10 / NHRL12
- Tube sizes: 4mm → 12mm
- Thread sizes: M5 / R / G / NPT
- Rotary swivel mechanism
- 90° elbow configuration
- Push-to-connect tube interface
Why Choose Our Pneumatic Fittings
- Professional NHRL rotary pneumatic fitting manufacturer
- OEM / ODM customization for swivel elbow fittings
- Reliable rotary connector for automation systems
- Durable fittings for dynamic industrial environments
- High flexibility and reduced tube wear
- Fast delivery and global B2B supply support
FAQ
Q1: What is a NHRL pneumatic fitting?
It is a rotary elbow push-to-connect fitting that allows both 90° direction change and 360° rotation.
Q2: What is a rotary elbow fitting used for?
It is used in systems where tubing must move, rotate, or avoid twisting during operation.
Q3: What is the advantage of swivel pneumatic fittings?
They reduce tube stress, prevent twisting, and improve system flexibility.
Q4: What tubing is compatible with NHRL fittings?
NHRL fittings are suitable for PU tubing.
Q5: Can NHRL fittings be customized?
Yes, OEM/ODM customization is available for thread types, sizes, and materials.
CTA
Looking for reliable NHRL rotary elbow pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
