Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | Rotary Straight (Swivel) |
| Connection | Tube to Tube |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 0.9 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU Tube |
Rotary straight fittings provide smooth rotation, reduce tubing stress, and improve system flexibility in pneumatic applications.
| Model | ΦD | B | R | A | ΦP | H |
| NHRC4-M5 | 4 | 44.5 | M5 | 4 | 13 | 8 |
| NHRC4-01 | 4 | 48 | R1/8 | 7.5 | 13 | 12 |
| NHRC4-02 | 4 | 50.5 | R1/4 | 10 | 13 | 14 |
| NHRC6-M5 | 6 | 45 | M5 | 4 | 13 | 8 |
| NHRC6-01 | 6 | 48.5 | R1/8 | 7.5 | 13 | 12 |
| NHRC6-02 | 6 | 51 | R1/4 | 10 | 13 | 14 |
| NHRC6-03 | 6 | 53.5 | R3/8 | 10.5 | 15 | 17 |
| NHRC6-04 | 6 | 55 | R1/2 | 12 | 15 | 21 |
| NHRC8-01 | 8 | 50.5 | R1/8 | 7.5 | 15 | 14 |
| NHRC8-02 | 8 | 53 | R1/4 | 10 | 15 | 14 |
| NHRC8-03 | 8 | 53.5 | R3/8 | 10.5 | 15 | 17 |
| NHRC8-04 | 8 | 55 | R1/2 | 12 | 15 | 21 |
| NHRC10-01 | 10 | 57 | R1/8 | 7.5 | 18.5 | 17 |
| NHRC10-02 | 10 | 59.5 | R1/4 | 10 | 18.5 | 17 |
| NHRC10-03 | 10 | 60 | R3/8 | 10.5 | 18.5 | 17 |
| NHRC10-04 | 10 | 61.5 | R1/2 | 12 | 18.5 | 21 |
| NHRC12-01 | 12 | 60 | R1/8 | 7.5 | 21 | 17 |
| NHRC12-02 | 12 | 62.5 | R1/4 | 10 | 21 | 17 |
| NHRC12-03 | 12 | 63 | R3/8 | 10.5 | 21 | 17 |
| NHRC12-04 | 12 | 64.5 | R1/2 | 12 | 21 | 21 |

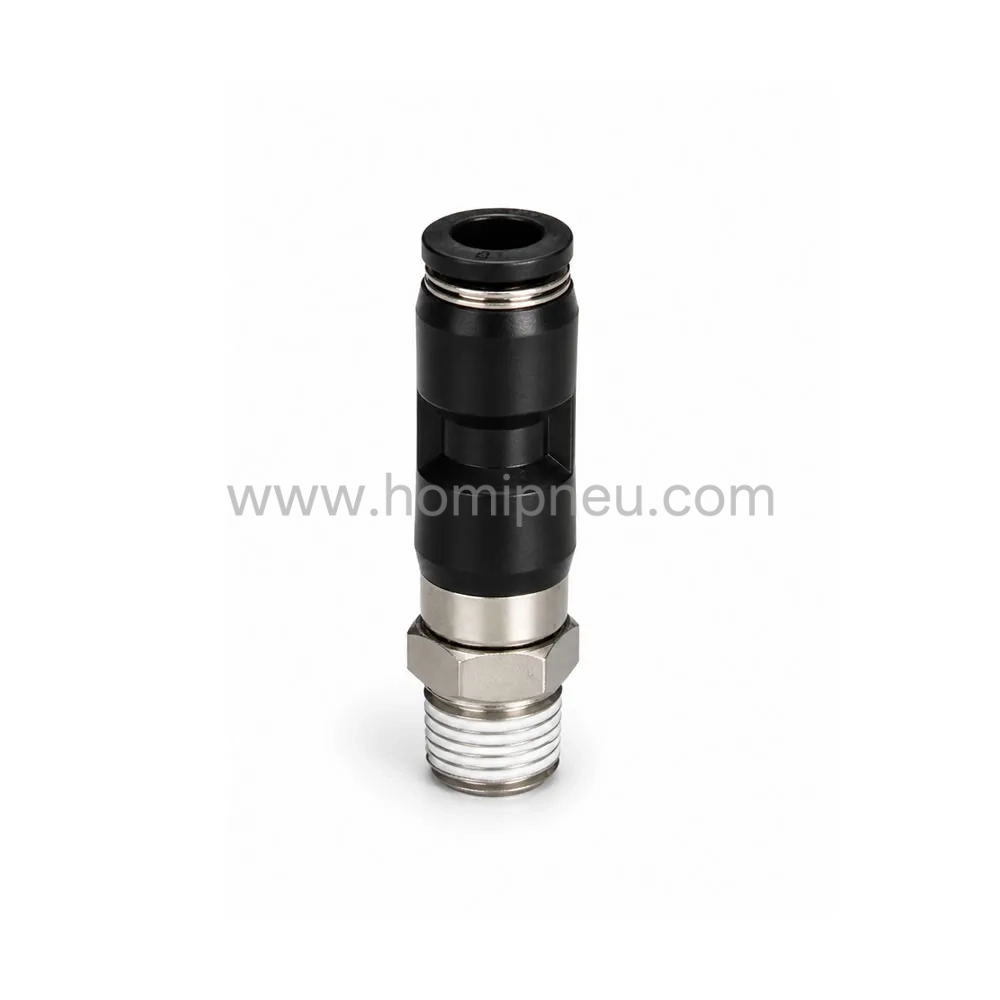

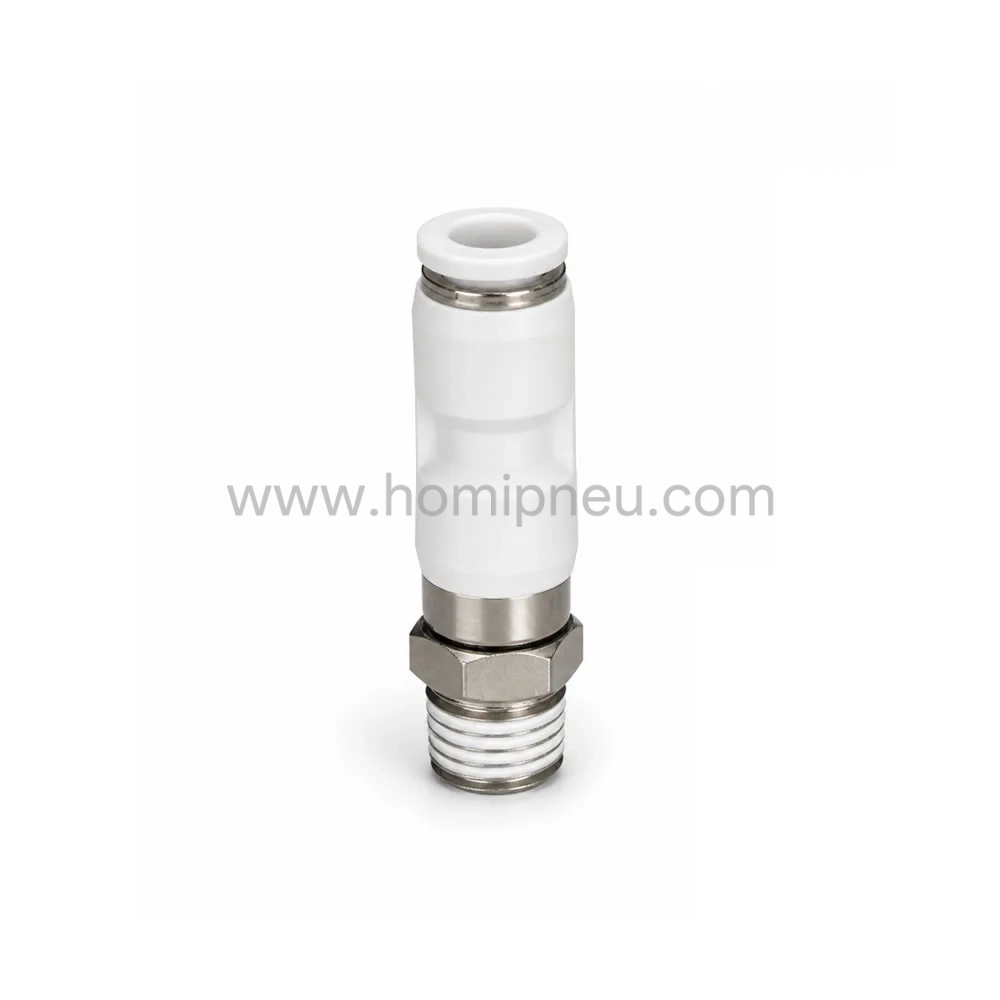

Color options available:
Key Features
- 360° swivel rotation design
- Straight airflow without direction change
- Reduces tube twisting and mechanical stress
- Ideal for moving and dynamic systems
- Push-to-connect quick installation
- Durable structure for industrial use
Applications
Automation equipment
Used in moving parts requiring flexible air connections
Robotic systems
Prevents tubing from twisting during continuous motion
Pneumatic control systems
Maintains stable airflow with rotation capability
Rotating machinery
Supports free movement without airflow restriction
Industrial equipment
Improves lifespan in high-motion environments
Product Function
NHRC pneumatic fittings are designed to connect pneumatic tubing while allowing free rotation without changing airflow direction.
They are ideal for dynamic systems where flexibility, durability, and reduced mechanical stress are critical.
Compared with:
- PC (Straight Fitting) → fixed, no rotation
- NHRC (Rotary Straight) → rotation without direction change
- NHRL (Rotary Elbow) → rotation + 90° direction change
NHRC is the best solution for straight-line installations requiring rotational flexibility.
Product Structure & Size Range
- Models: NHRC4 / NHRC6 / NHRC8 / NHRC10 / NHRC12
- Tube sizes: 4mm → 12mm
- Straight push-to-connect structure
- Rotary swivel mechanism
- Tube-to-tube connection
Why Choose Our Pneumatic Fittings
- Professional NHRC rotary fitting manufacturer
- OEM / ODM customization for swivel fittings
- Reliable rotary connector for automation systems
- Durable fittings for dynamic industrial environments
- Reduces tube wear and improves system flexibility
- Fast delivery and global B2B supply support
FAQ
Q1: What is a NHRC pneumatic fitting?
It is a rotary straight push-to-connect fitting that allows 360° rotation without changing airflow direction.
Q2: What is a rotary straight fitting used for?
It is used in systems where tubing must rotate or move freely without twisting.
Q3: What is the advantage of swivel pneumatic fittings?
They reduce mechanical stress, prevent tube twisting, and extend system lifespan.
Q4: What tubing is compatible with NHRC fittings?
NHRC fittings are suitable for PU tubing.
Q5: Can NHRC fittings be customized?
Yes, OEM/ODM customization is available for sizes and materials.
