Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-PEG |
| Structure | Reducing Tee |
| Connection | Tube to Tube |
| Installation | Quick-Tight |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

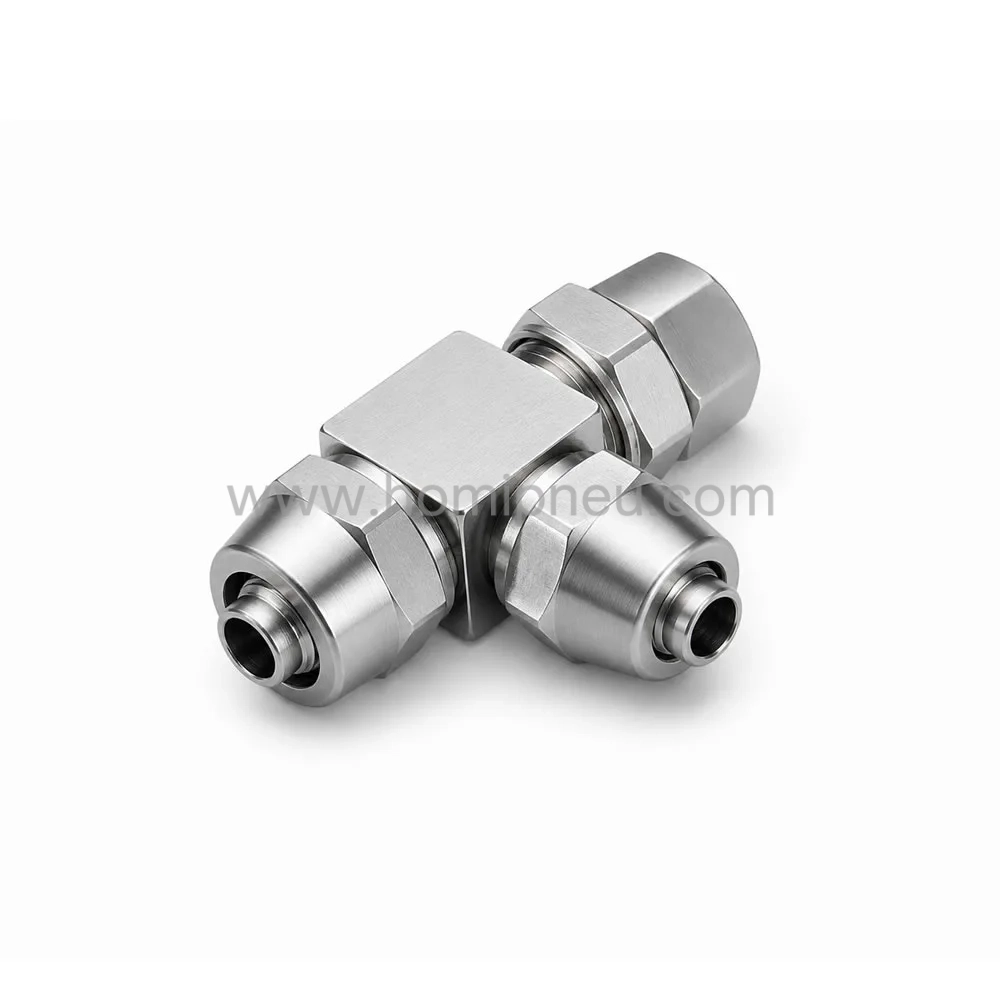

Reducing tee pneumatic fittings combine tube size conversion and three-way air distribution in one compact connector.
Model: Model: (Example KL-PEG6-4)
| 6-4 |
| 8-6 |
| 10-8 |
| 12-10 |
| 14-12 |
| 16-14 |
Key Features
Quick-tight installation design
Reducing tee structure for size conversion
Three-way air distribution capability
Nickel-plated brass for corrosion resistance
Compact design for pneumatic layouts
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for three-way connection with different tube sizes.
Industrial automation equipment
Supports flexible air circuit branching and tube size transition.
Air distribution systems
Enables airflow distribution between different tube diameters.
Machinery equipment piping
Ideal for compact and complex pneumatic layouts.
Maintenance and retrofit scenarios
Allows quick modification of existing air circuits.
Product Function
KL-PEG fittings are designed to connect three pneumatic tubes while supporting different tube diameters, allowing airflow branching and size conversion in one fitting.
Compared with KL-PE standard tee fittings, KL-PEG provides reducing function, making it suitable for pneumatic systems where different tube sizes need to be connected.
Compared with KL-PG reducing union fittings, KL-PEG adds three-way distribution capability, making it more flexible for branching air circuits.
Product Structure & Size Range
KL-PEG4-6 / 6-8 / 8-10 / 10-12
Tube size combinations: 4mm → 12mm
Reducing tee structure
Quick-tight locking mechanism
Compact three-way design
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for reducing tee pneumatic fittings
Efficient tube size conversion and air distribution solution
Reliable nickel plated brass pneumatic connectors
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-PEG pneumatic fitting?
It is a reducing tee quick-tight pneumatic fitting used for three-way air distribution and tube size conversion.
Q2: What is a reducing tee pneumatic fitting used for?
It connects three tubes while allowing different tube sizes to be used in the same pneumatic circuit.
Q3: What is the difference between KL-PE and KL-PEG?
KL-PE is a standard tee fitting, while KL-PEG is a reducing tee fitting for different tube sizes.
Q4: What is the difference between KL-PG and KL-PEG?
KL-PG is a straight reducing union, while KL-PEG is a reducing tee with three-way branching.
Q5: Can KL-PEG fittings be customized?
Yes, OEM and ODM customization is available for tube size combinations, materials, and branding.
CTA
Looking for reliable KL-PEG reducing tee quick-tight pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
