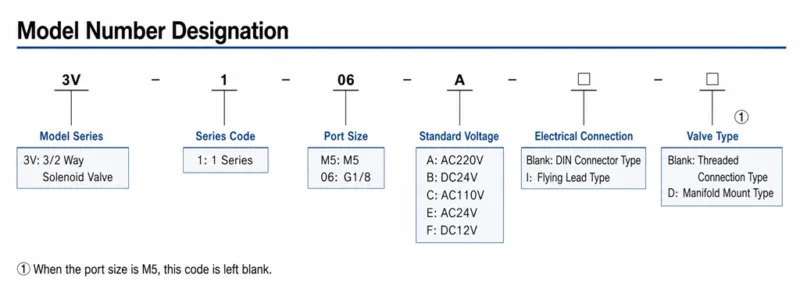

Standard Specifications
| Model | 3V1-M5 | 3V1-06 |
| Working Medium | Compressed Air (40 u m Filtration) | |
| Acting Type | Direct Acting | |
| Port Size * | M5 | G1/8 |
| Valve Function | 2/2 Way (2 Port, 2 Position) | |
| Lubrication | Not Required | |
| Operating Pressure Range | 0 ~ 0.8 MPa (0 ~ 114 psi) | |
| Max. Pressure Resistance | 1.5 MPa (215 psi) | |
| Ambient Temperature (℃) | -20~70 | |
| Orifice Size | Φ 1 mm | |
| Body Material | Aluminum Alloy | |
*PT and NPT thread types are available.
Electrical Specifications
| Item | Specifications |
| Standard Voltage | AC220V, AC110V, AC24V, DC24V, DC12V |
| Voltage Tolerance | AC: ±15% DC: + 10% |
| Power Consumption | AC: 6VA DC: 6W |
| Protection Class | IP65 (DIN40050) |
| Insulation Class | Class B |
| Electrical Connection | DIN Connector Type, Flying Lead Type |
| Response Time | 0.05 Sec or Less |
| *Max. Operating Frequency | 10 Cycles/Sec |
*Max. operating frequency in the unpressurized state.

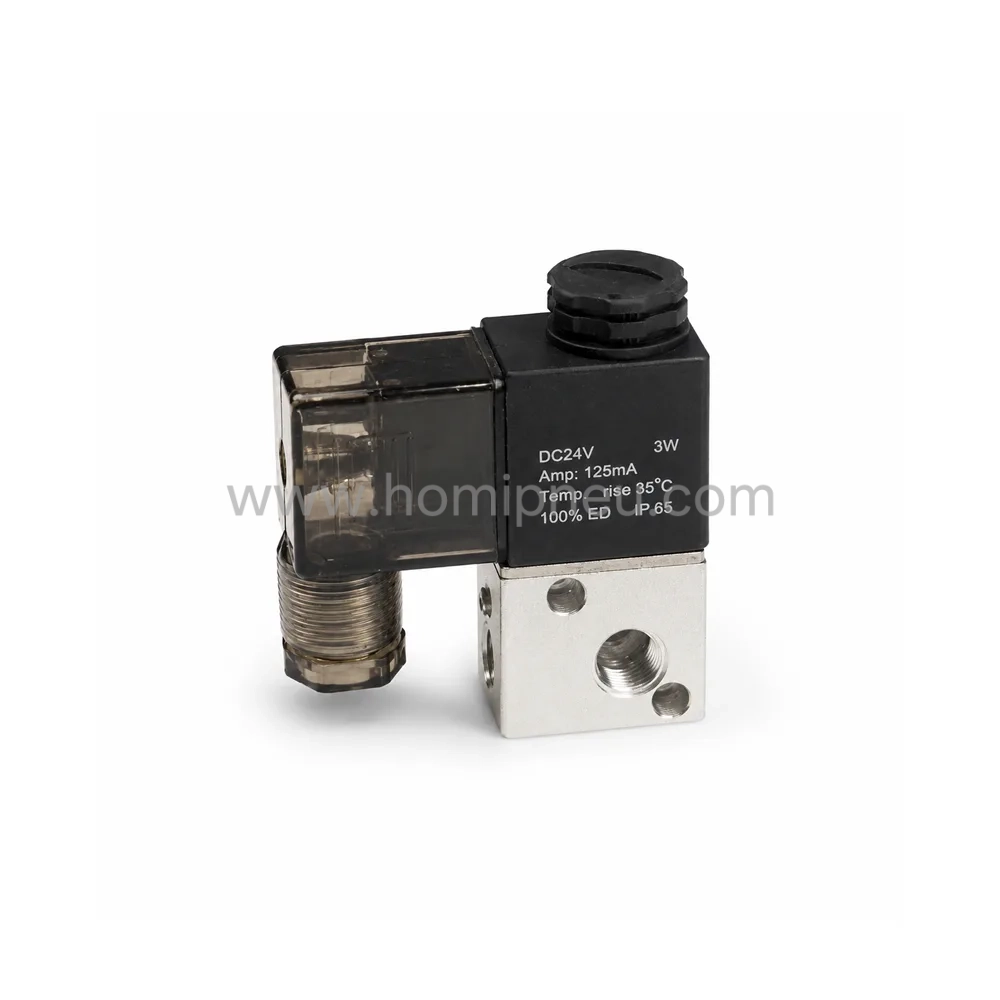

Product Features
- Direct acting 3/2 way normally closed design
- Fast response pneumatic switching
- Stable compressed air control performance
- Compact and lightweight valve structure
- Reliable sealing with long service life
- Low power consumption electromagnetic coil
- Multiple voltage specifications available
- Easy installation and maintenance
- Suitable for pneumatic automation systems

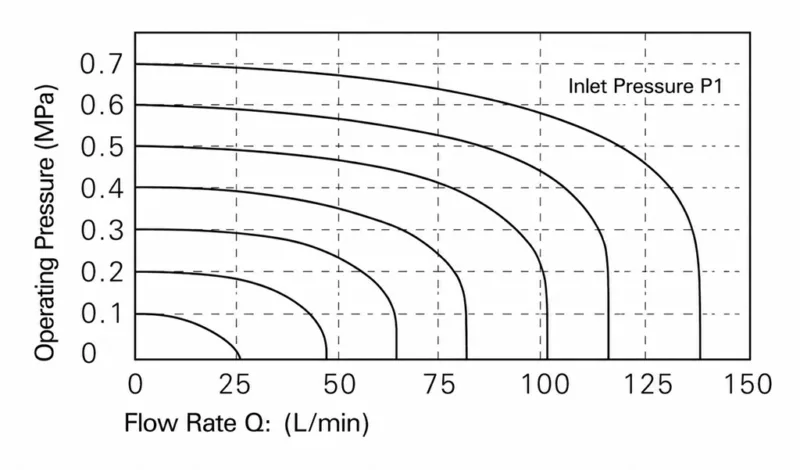

Flow Characteristics
Dimension Drawing(MM)

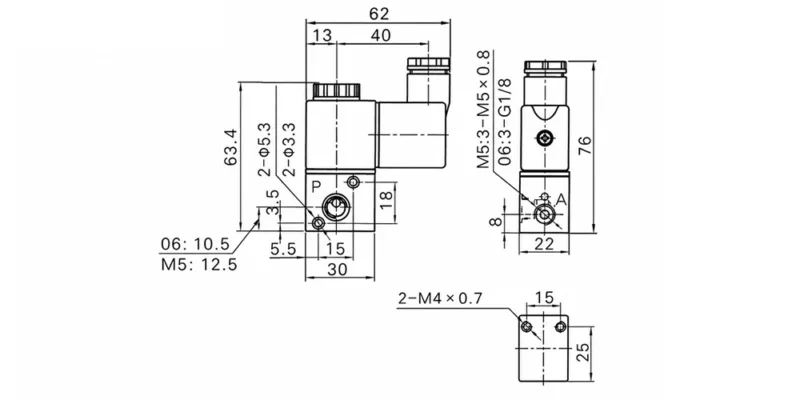

DIN Connector Manifold Type/DIN Connector Single Unit Type

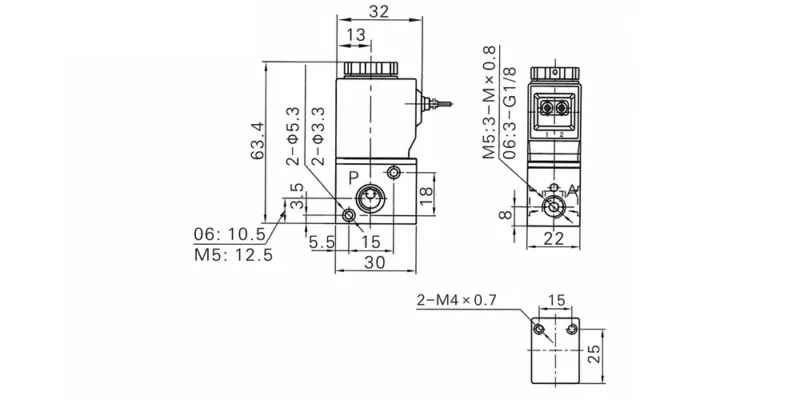

Flying Lead Manifold Type/Flying Lead Single Unit Type

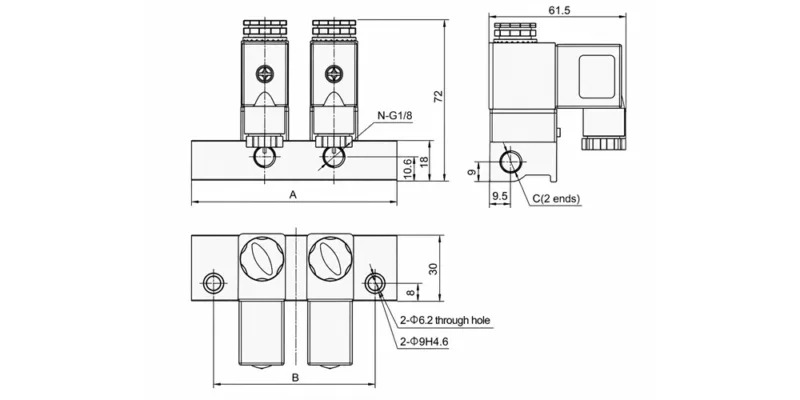

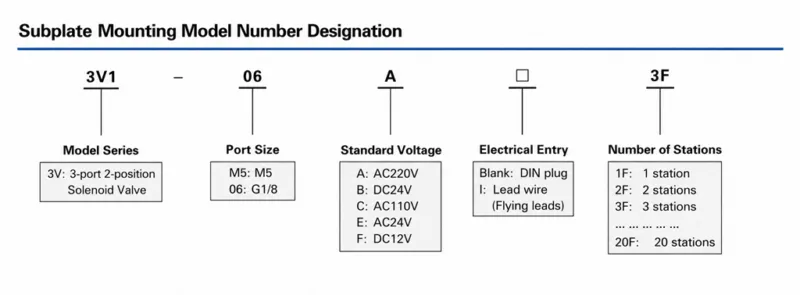

Sub-Base Mount Type
| 2F | 3F | 4F | 5F | 6F | 7F | 8F | 9F | 10F | |
| A | 94 | 97.5 | 120 | 142.5 | 165 | 187.5 | 210 | 232.5 | 255 |
| B | 74 | 77.5 | 100 | 122.5 | 145 | 167.5 | 190 | 212.5 | 235 |
| C | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 |
| N | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Applications
Pneumatic Automation Systems
Used for airflow control and directional switching in industrial pneumatic systems.
Single-Acting Pneumatic Cylinders
Suitable for controlling single-acting cylinder extension and return operations.
Packaging Machinery
Provides reliable pneumatic switching for automated packaging equipment.
Textile Machinery
Supports high-frequency pneumatic control applications in textile production systems.
Industrial Air Control
Used for compressed air management and automation control applications.
