STANDARD SPECIFICATIONS
| MODEL | 2V025-06 | 2V025-06-10F | 2V025-08 |
| Operating Medium | Air, Water, Oil | ||
| Actuation Type | Direct Acting | ||
| Initial State | Normally Closed | ||
| Valve Type | 2/2 Way | ||
| Orifice Size (mm) | 2.5 | 2.5 | 2.5 |
| CV Value | 0.23 | 0.23 | 0.25 |
| Port Size* | G1/8 | G1/8 | G1/4 |
| Applicable Fluid Viscosity | 20 CST or below | ||
| Operating Pressure Range | 0~1.0 MPa (0~145 psi) | 0~1.0 MPa (0~145 psi) | 0.05~1.0 MPa (7~145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) | ||
| Body Material | Brass (Electroless Nickel Plated) | ||
| Seal Material | VITON/NBR | ||
| Response Time | 0.05 sec or less | ||
*Port thread type can be selected as PT or NPT.
Product Features
- Direct acting 2/2 way normally closed design
- Fast response pneumatic switching
- Stable compressed air control performance
- Compact and lightweight valve structure
- Reliable sealing with long service life
- Low power consumption electromagnetic coil
- Multiple voltage specifications available
- Easy installation and maintenance
- Suitable for industrial automation systems
Dimension Drawing

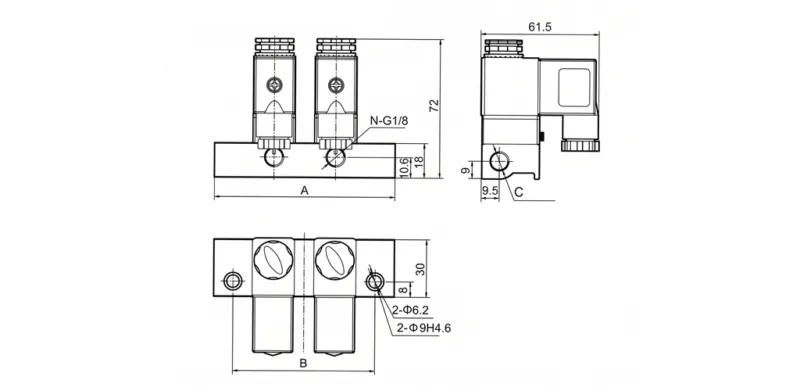

2V025-F Manifold Mount Solenoid Valve
| 2F | 3F | 4F | 5F | 6F | 7F | 8F | 9F | 10F | |
| A | 94 | 97.5 | 120 | 142.5 | 165 | 187.5 | 210 | 232.5 | 255 |
| B | 74 | 77.5 | 100 | 122.5 | 145 | 167.5 | 190 | 212.5 | 235 |
| C | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 |
| N | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

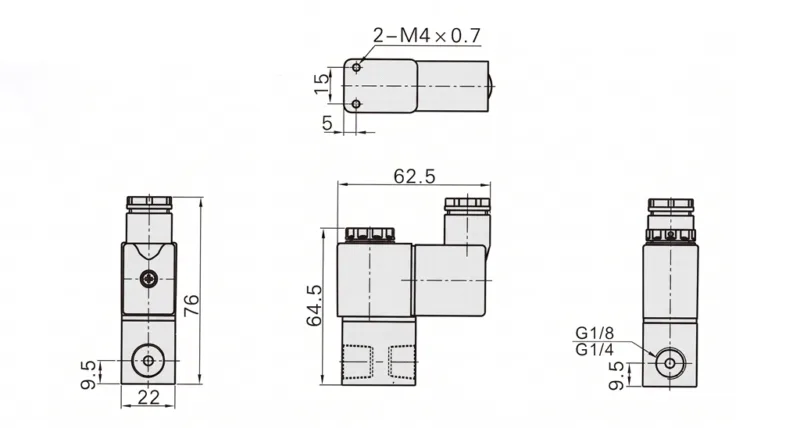

2V025 DIN Connector Solenoid Valve

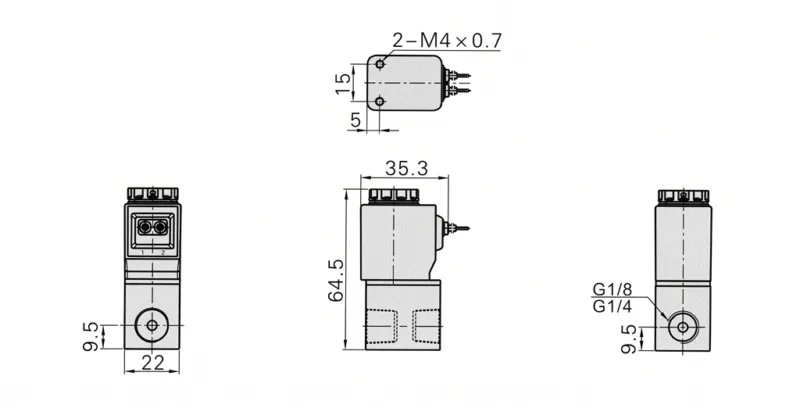

2V025 Flying Lead Solenoid Valve
Applications
Pneumatic Automation Systems
Used for airflow switching and compressed air control in industrial automation equipment.
Pneumatic Cylinders
Controls air supply and shut-off functions for pneumatic actuator systems.
Packaging Machinery
Provides reliable pneumatic switching performance for automated packaging lines.
Textile Machinery
Suitable for high-frequency pneumatic control applications in textile production systems.
Air Compressor Systems
Used for compressed air pipeline control and pneumatic management systems.
Why Choose HOMIPNEU 2V Series Solenoid Valves
HOMIPNEU is a professional pneumatic solenoid valve manufacturer specializing in industrial compressed air control solutions. Our 2V Series 2/2 way normally closed solenoid valves are designed for rapid response performance, stable airflow switching, and long-term industrial operation.
As an experienced OEM pneumatic solenoid valve supplier, we provide reliable direct acting compressed air control valves for pneumatic automation systems, machinery manufacturing, and industrial equipment applications. The compact valve structure and durable sealing design ensure stable operation in continuous working environments.
Our industrial pneumatic air valves feature:
- Stable 2 position 2 way airflow control
- Reliable normally closed safety structure
- Fast switching response for automation equipment
- Durable aluminum alloy valve body
- Multiple voltage configurations for global applications
- Long service life with low maintenance requirements
HOMIPNEU supports:
- OEM pneumatic solenoid valve manufacturing
- ODM industrial air valve customization
- Private label and logo customization
- Customized voltage and connector solutions
- Bulk industrial orders and global supply capability
FAQ
What is a 2/2 way normally closed solenoid valve?
A 2/2 way normally closed solenoid valve has two ports and two operating positions. The airflow remains closed when power is disconnected and opens when energized.
What does direct acting mean?
Direct acting means the valve operates directly through electromagnetic force without requiring pilot air pressure assistance.
What media can the 2V valve control?
The valve is mainly designed for compressed air systems and pneumatic automation applications.
What voltage options are available?
Common voltage options include DC12V, DC24V, AC110V, and AC220V.
Does HOMIPNEU support OEM and ODM services?
Yes. HOMIPNEU provides OEM and ODM customization services for industrial distributors, machinery manufacturers, and global B2B customers.
CTA
Looking for reliable 2/2 way normally closed pneumatic solenoid valve manufacturers? Contact HOMIPNEU for OEM pneumatic valve solutions, customized configurations, competitive bulk pricing, and stable global supply support.
