Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-TL |
| Structure | Elbow Thread (90°) |
| Connection | Tube to Thread |
| Installation | Quick-Tight |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

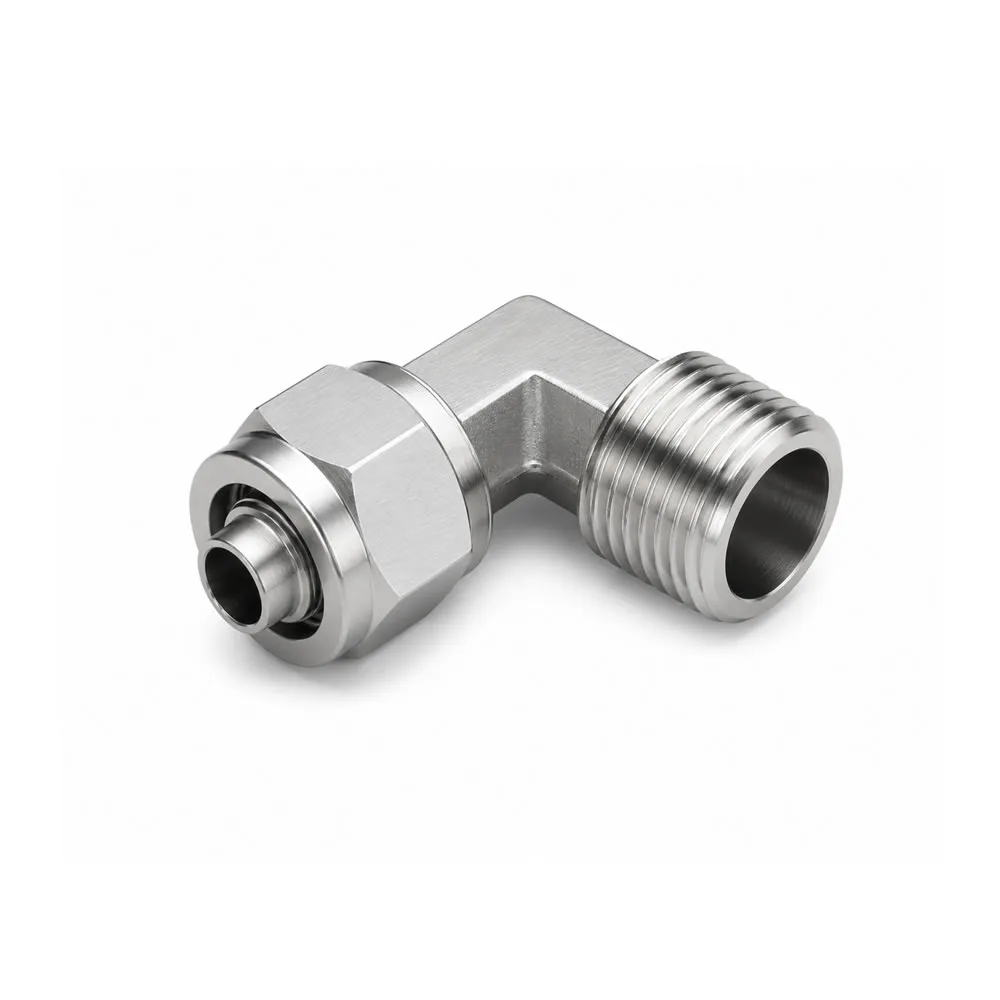

Nickel-plated brass elbow thread pneumatic fittings provide corrosion resistance and reliable sealing in compressed air systems.
Model: Model: (Example KL-TL4-M5)
| 4-M5 | 6-03 | 10-02 | 14-04 |
| 4-M6 | 6-04 | 10-03 | 16-02 |
| 4-01 | 8-01 | 10-04 | 16-04 |
| 4-02 | 8-02 | 12-01 | 16-06 |
| 6-M5 | 8-03 | 12-02 | |
| 6-01 | 8-04 | 12-03 | |
| 6-02 | 10-01 | 12-04 |
Key Features
Quick-tight installation design
90° elbow structure for direction change
Threaded connection for secure mounting
Nickel-plated brass for corrosion resistance
Fast installation without tools
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for tube-to-thread connection with direction change
Industrial automation equipment
Improves installation efficiency in machinery
Air distribution systems
Ensures stable airflow routing
Machinery equipment piping
Ideal for space-constrained layouts
Maintenance and replacement scenarios
Allows quick installation and adjustment
Product Function
KL-TL fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees, enabling flexible and efficient system layouts.
Compared to straight fittings (KL-PC / KL-PM), KL-TL provides directional routing capability.
Compared to elbow fittings without thread (KL-PL), KL-TL provides threaded mounting functionality, making it more suitable for equipment connections.
Product Structure & Size Range
KL-TL4 / KL-TL6 / KL-TL8 / KL-TL10 / KL-TL12
Thread types: M5 / G / R / NPT
Tube sizes: 4mm → 12mm
Elbow threaded structure
Quick-tight locking mechanism
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for elbow thread fittings
Efficient tube-to-thread connection solution
Reliable nickel plated brass pneumatic connectors
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-TL pneumatic fitting?
It is an elbow thread quick-tight pneumatic fitting used for tube-to-thread connection with direction change.
Q2: What is an elbow thread fitting used for?
It connects tubing to threaded ports while changing airflow direction.
Q3: What is the difference between KL-TL and KL-PL?
KL-PL is an elbow tube-to-tube fitting, while KL-TL connects to threaded ports.
Q4: What tubing is compatible with KL-TL fittings?
KL-TL fittings are suitable for PU tubing and nylon tubing.
Q5: Can KL-TL fittings be customized?
Yes, OEM and ODM customization is available for thread types and sizes.
CTA
Looking for reliable KL-TL elbow thread quick-tight pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
