Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Model | KL-TE |
| Structure | TF Type Tee |
| Connection | Tube to Tube |
| Installation | Quick-Tight |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

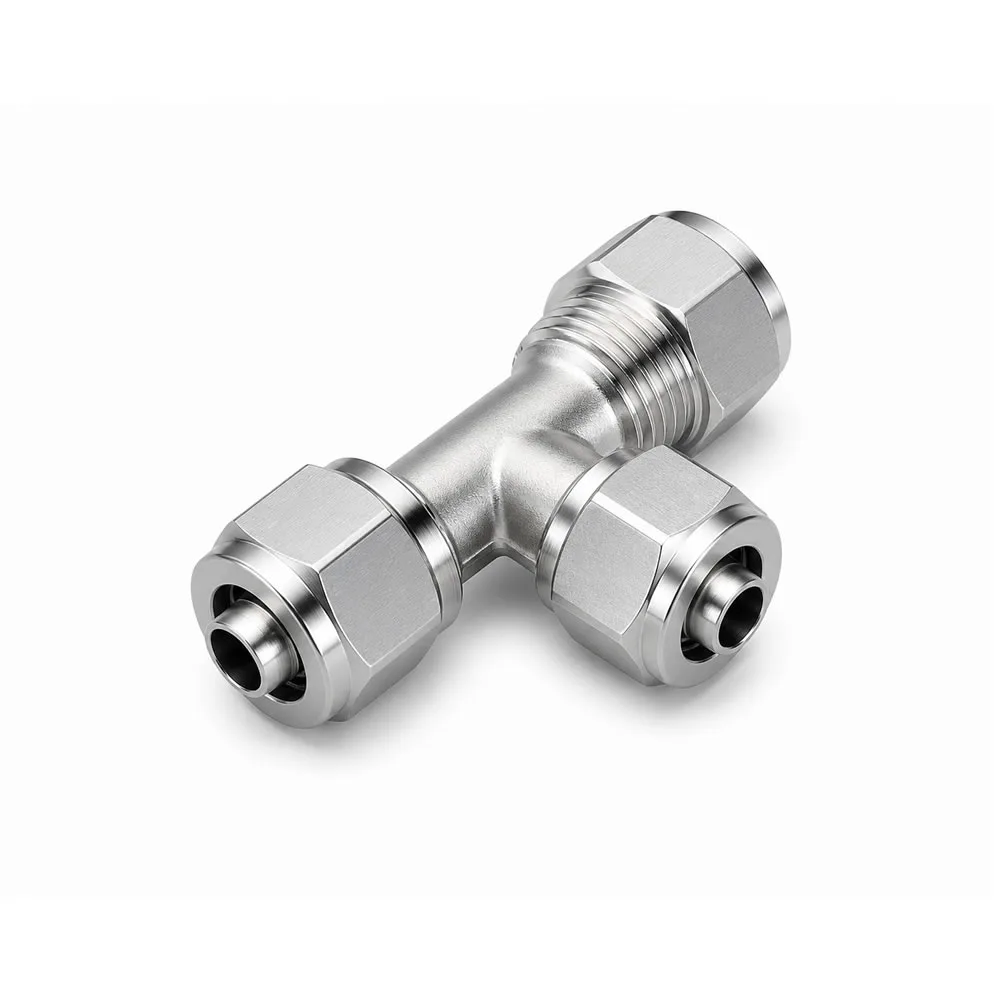

TF type tee pneumatic fittings provide efficient airflow distribution and reliable connection in pneumatic systems.
Model: Model: (Example KL-TE4)
| 4 |
| 6 |
| 8 |
| 10 |
| 12 |
| 14 |
| 16 |
Key Features
Quick-tight installation design
TF type tee structure
Three-way air distribution
Compact and efficient layout
Nickel-plated brass for corrosion resistance
Stable and leak-resistant sealing
Applications
Pneumatic control systems
Used for connecting three air tubes
Industrial automation equipment
Supports multi-line air distribution
Air distribution systems
Ensures stable airflow splitting
Machinery equipment piping
Ideal for compact pneumatic layouts
Maintenance and modification scenarios
Allows easy system expansion
Product Function
KL-TE fittings are designed to connect three pneumatic tubes, enabling efficient airflow distribution in compact pneumatic systems.
Compared to reducing tee fittings (KL-PEG), KL-TE is used for same-size tube connections.
Compared to thread tee fittings (KL-PB), KL-TE is a full tube-to-tube connection type, making it simpler and more widely used.
Product Structure & Size Range
KL-TE4 / KL-TE6 / KL-TE8 / KL-TE10 / KL-TE12
Tube sizes: 4mm → 12mm
TF type tee structure
Quick-tight locking mechanism
Compact multi-direction design
Why Choose Our Pneumatic Fittings
Professional KL series pneumatic fitting manufacturer
OEM / ODM customization for TF type tee fittings
Efficient air distribution solution
Reliable nickel plated brass pneumatic connectors
Durable fittings for industrial environments
Fast delivery and global B2B supply support
FAQ
Q1: What is a KL-TE pneumatic fitting?
It is a TF type tee quick-tight pneumatic fitting used for three-way air distribution.
Q2: What is a TF type tee fitting?
It is a standard pneumatic tee fitting used to connect three tubes.
Q3: What is the difference between KL-TE and KL-PE?
Both are tee fittings, but KL-TE is the standard TF type widely used in pneumatic systems.
Q4: What tubing is compatible with KL-TE fittings?
KL-TE fittings are suitable for PU tubing and nylon tubing.
Q5: Can KL-TE fittings be customized?
Yes, OEM and ODM customization is available for sizes and configurations.
CTA
Looking for reliable KL-TE TF type tee quick-tight pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
