Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |

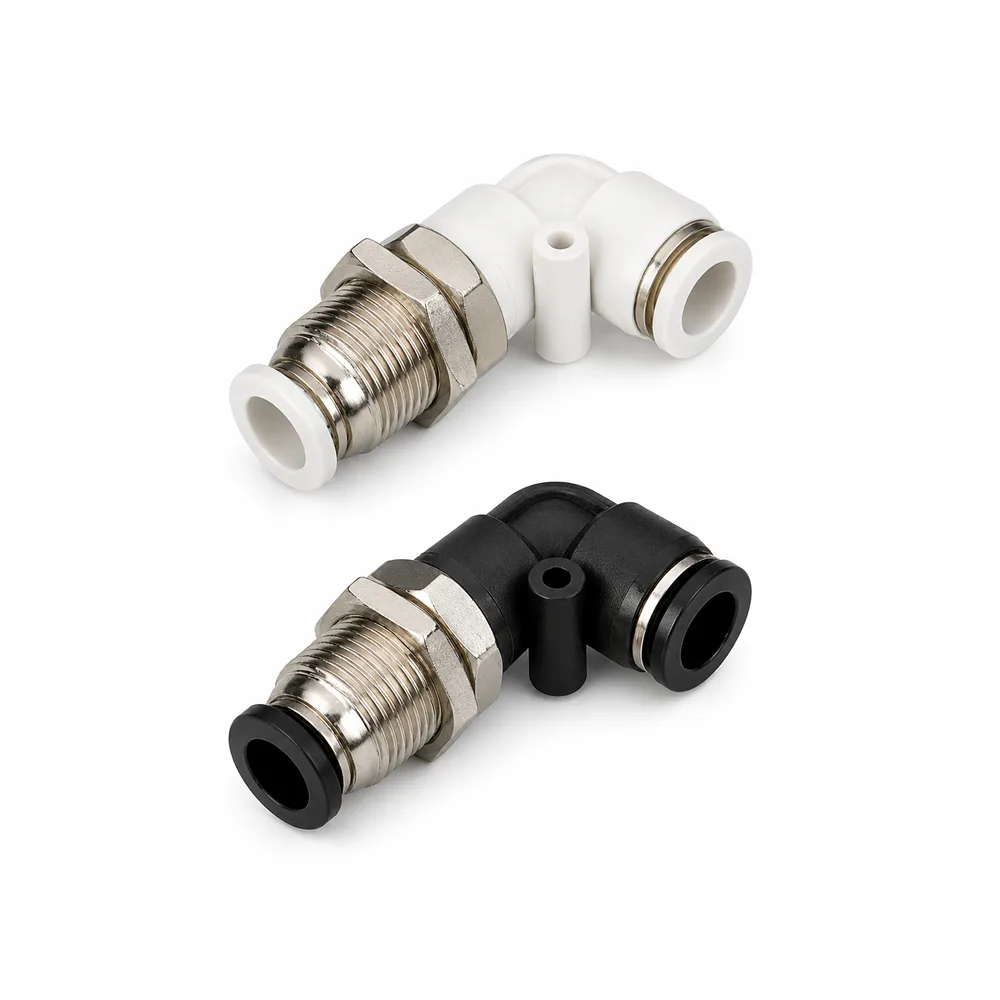

| Structure | Bulkhead Elbow (90°) |
| Connection | Tube to Tube |
| Installation | Panel Mount |
| Material | Nickel-Plated Brass |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
| Model | ØD1 | ØD2 | B | E | M | H1 | H2 | ØP |
| PLM-4 | 4 | 4 | 36.5 | 18 | M12×1 | 14 | 14 | 11 |
| PLM-6 | 6 | 6 | 40.5 | 20 | M14×1 | 17 | 15 | 13 |
| PLM-8 | 8 | 8 | 43.5 | 22 | M16×1 | 19 | 17 | 15 |
| PLM-10 | 10 | 10 | 48.5 | 26 | M20 × 1 | 24 | 21 | 18.5 |
| PLM-12 | 12 | 12 | 50.5 | 28 | M22× 1 | 27 | 24 | 21 |
Key Features
- Bulkhead panel-mount elbow design
- 90° airflow direction change
- Nickel-plated brass for corrosion resistance
- Strong mechanical strength and durability
- Push-to-connect quick installation
Applications
- Pneumatic control panels
- Industrial automation systems
- Air distribution systems
- Machinery equipment
- Panel-mounted air routing
Widely used in pneumatic systems requiring panel-through installation with immediate direction change and durable metal fittings.
Product Function
PLM fittings are designed to route pneumatic tubing through panels while redirecting airflow by 90 degrees, enabling compact and organized system layouts.
Compared to PM (straight bulkhead), PLM provides directional control + panel mounting, making it essential for space-constrained installations.
Product Structure & Size Range
- PLM4 / PLM6 / PLM8 / PLM10 / PLM12
- Tube sizes: 4mm → 16mm
- Bulkhead mounting with lock nut
- 90° elbow structure
Why Choose Our Pneumatic Fittings
- Professional PLM pneumatic fitting manufacturer
- OEM / ODM customization for nickel plated brass bulkhead elbow fittings
- Reliable panel mount elbow connector for automation systems
- High-quality metal fittings with corrosion resistance and durability
- Durable bulkhead elbow fittings for industrial environments
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PLM pneumatic fitting?
It is a nickel-plated brass bulkhead elbow fitting used for panel-mounted tube routing and direction change.
Q2: What is a bulkhead elbow fitting used for?
It allows tubing to pass through panels and change direction simultaneously.
Q3: What is the difference between PM and PLM fittings?
PM is straight, while PLM is a 90-degree elbow version with panel mounting.
Q4: What tubing is compatible with PLM fittings?
PLM fittings are suitable for PU and nylon tubing.
Q5: Can PLM fittings be customized?
Yes, OEM/ODM customization is available for size and materials.
