Specification Parameters
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Structure | 90° Elbow (Male Thread) |
| Connection | Tube to Thread |
| Thread Type | G (BSPP) with O-Ring |
| Material | Nickel-Plated Brass |
| Sealing Method | O-Ring Seal |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |

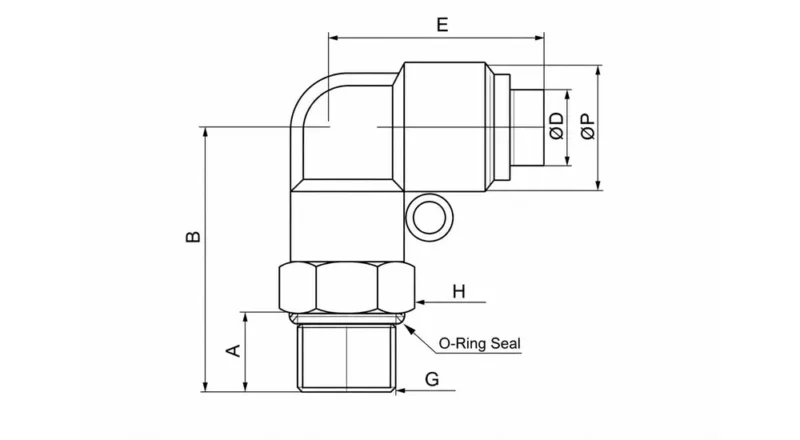

| Model | ΦD | E | B | ΦP | A | G | H |
| PL4-M5 | 4 | 18 | 21.5 | 11 | 3.5 | M5 | 10 |
| PL4-G01 | 4 | 18 | 23.5 | 11 | 5.5 | G1/8 | 12 |
| PL4-G02 | 4 | 18 | 24.5 | 11 | 6.5 | G1/4 | 15 |
| PL6-M5 | 6 | 20 | 23.5 | 13 | 3.5 | M5 | 12 |
| PL6-G01 | 6 | 20 | 25.5 | 13 | 5.5 | G1/8 | 12 |
| PL6-G02 | 6 | 20 | 26.5 | 13 | 6.5 | G1/4 | 15 |
| PL6-G03 | 6 | 20 | 27.5 | 13 | 7.5 | G3/8 | 19 |
| PL6-G04 | 6 | 20 | 30 | 13 | 9.5 | G1/2 | 24 |
| PL8-G01 | 8 | 22 | 27.5 | 15 | 5.5 | G1/8 | 14 |
| PL8-G02 | 8 | 22 | 28.5 | 15 | 6.5 | G1/4 | 15 |
| PL8-G03 | 8 | 22 | 29.5 | 15 | 7.5 | G3/8 | 19 |
| PL8-G04 | 8 | 22 | 32 | 15 | 9.5 | G1/2 | 24 |
| PL10-G01 | 10 | 26 | 30.5 | 18.5 | 5.5 | G1/8 | 17 |
| PL10-G02 | 10 | 26 | 31.5 | 18.5 | 6.5 | G1/4 | 17 |
| PL10-G03 | 10 | 26 | 32.5 | 18.5 | 7.5 | G3/8 | 19 |
| PL10-G04 | 10 | 26 | 35 | 18.5 | 9.5 | G1/2 | 24 |
| PL12-G01 | 12 | 28 | 32.5 | 21 | 5.5 | G1/8 | 19 |
| PL12-G02 | 12 | 28 | 33.5 | 21 | 6.5 | G1/4 | 19 |
| PL12-G03 | 12 | 28 | 34.5 | 21 | 7.5 | G3/8 | 19 |
| PL12-G04 | 12 | 28 | 37 | 21 | 9.5 | G1/2 | 24 |
| PL14-G02 | 14 | 30.5 | 36 | 23 | 6.5 | G1/4 | 22 |
| PL14-G03 | 14 | 30.5 | 37 | 23 | 7.5 | G3/8 | 22 |
| PL14-G04 | 14 | 30.5 | 39 | 23 | 9.5 | G1/2 | 24 |
| PL16-G02 | 16 | 33 | 38 | 25.5 | 6.5 | G1/4 | 24 |
| PL16-G03 | 16 | 33 | 39 | 25.5 | 7.5 | G3/8 | 24 |
| PL16-G04 | 16 | 33 | 41 | 25.5 | 9.5 | G1/2 | 24 |
Key Features
- Integrated O-ring sealing for leak-free connection
- 90° elbow for directional airflow control
- Nickel-plated brass for corrosion resistance
- Eliminates need for PTFE tape
- Push-to-connect quick installation
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Control valves and cylinders
- Compact piping systems
Widely used in pneumatic systems requiring direction change, high sealing performance, and durable metal fittings.
Product Function

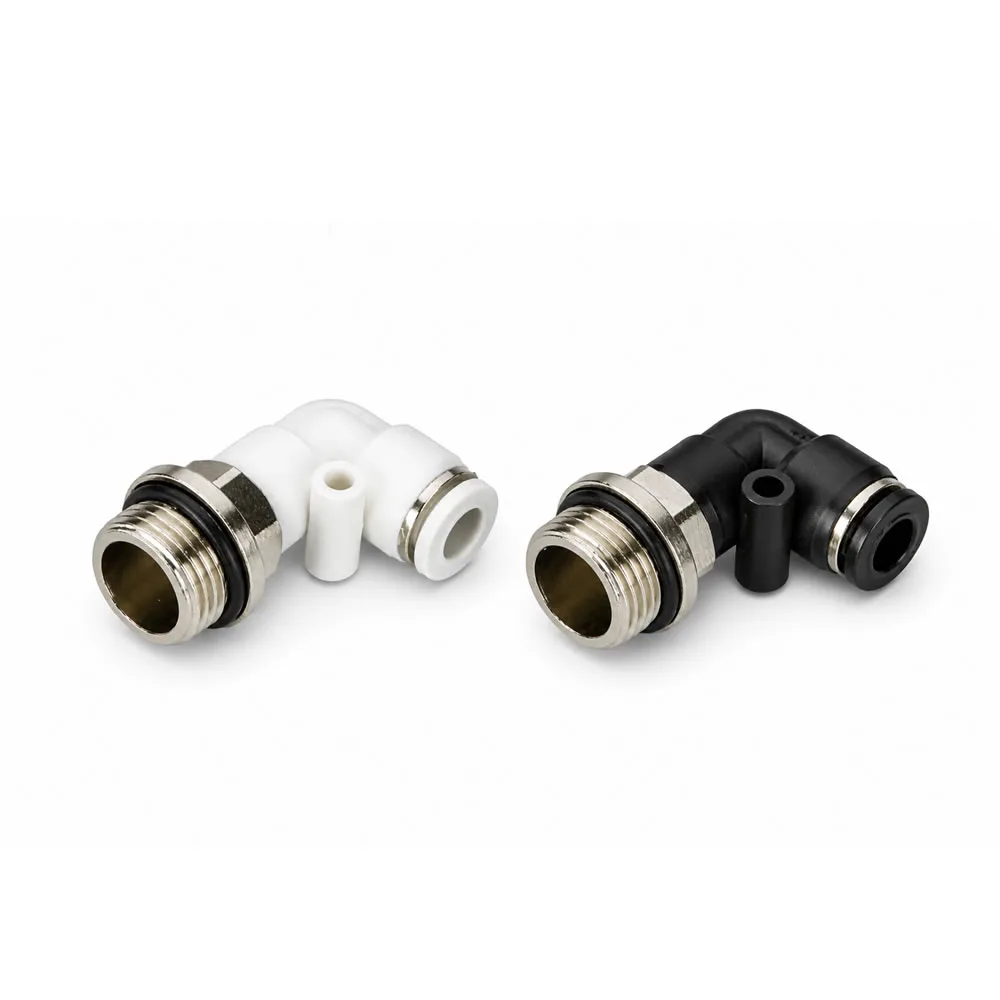

PL-G fittings are designed to connect pneumatic tubing to threaded ports while redirecting airflow by 90°, with enhanced sealing through an integrated O-ring.
Compared to standard PL fittings, PL-G provides superior sealing reliability and faster installation, especially in high-efficiency assembly environments.
Product Structure & Size Range
- PL4-G01 / PL6-G02 / PL8-G02 / PL10-G03 / PL12-G04
- Tube sizes: 4mm → 16mm
- Thread sizes: G1/8, G1/4, G3/8, G1/2
- Male thread elbow with O-ring
Why Choose Our Pneumatic Fittings
- Professional PL-G pneumatic fitting manufacturer
- OEM / ODM customization for nickel plated brass O-ring fittings
- Reliable leak-proof pneumatic elbow connector
- High-quality metal fittings with superior sealing performance
- Durable push-to-connect fittings for industrial environments
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PL-G pneumatic fitting?
It is a nickel-plated brass elbow fitting with O-ring sealing for leak-free connection.
Q2: What is the advantage of O-ring sealing?
It provides a tight seal without using PTFE tape and reduces leakage risk.
Q3: What is the difference between PL and PL-G fittings?
PL-G includes an O-ring for sealing, while standard PL requires thread sealing tape.
Q4: What tubing is compatible with PL-G fittings?
PL-G fittings are suitable for PU and nylon tubing.
Q5: Can PL-G fittings be customized?
Yes, OEM/ODM customization is available for size, thread type, and materials.
