Double Acting Standard Air Cylinder Sc160x50 Sc160-x100 Sc160x150 Sc160x200 Sc160x250 S160x300 Air Cylinder

Specification Parameters

Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
Weight (KG): 1.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pressure vessel, Gear, Pump
Standard or Nonstandard: Standard

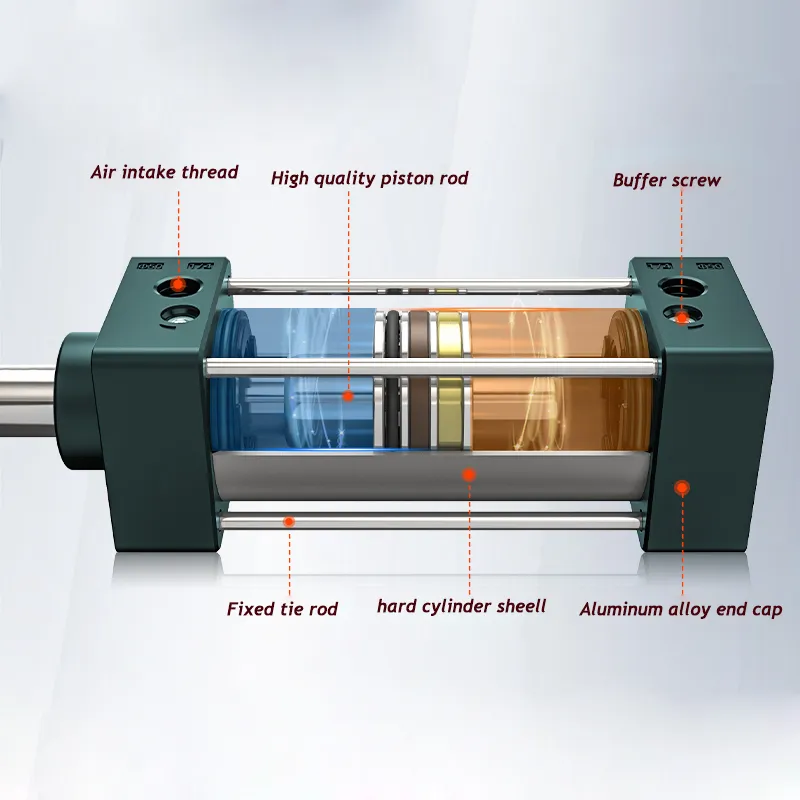

Structure: Piston Cylinder
Power: Pneumatic
Body Material: Aluminum
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU

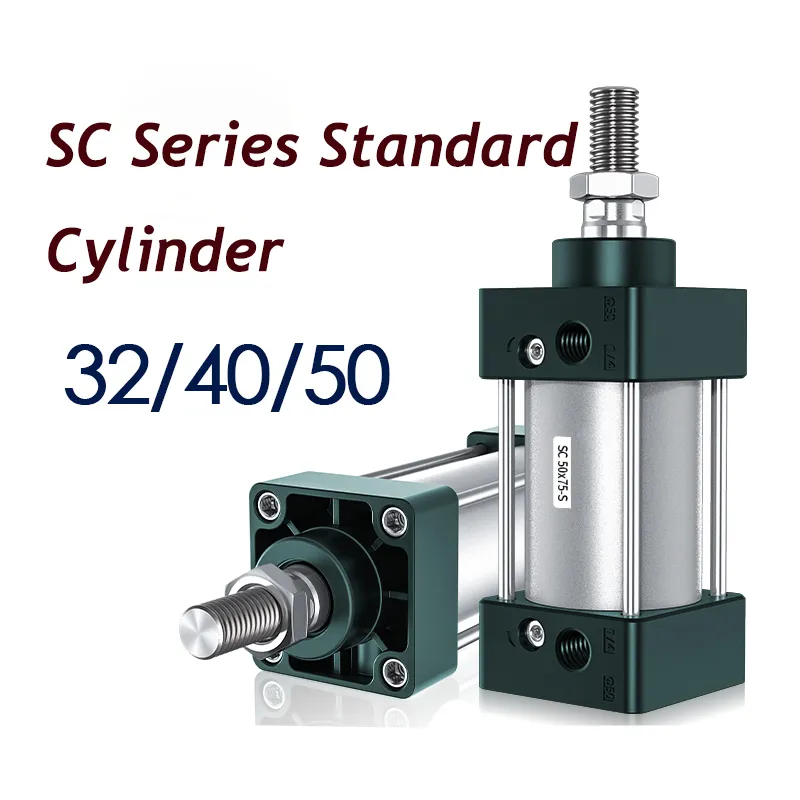

Product name: SC Series standard Cylinder
Model: SC
Application: Machinery
Material: Alumium Alloy
Working Pressure: 0.1-1.0MPa
Bore size: 10-40 mm
Stroke: NM
Maximum Stroke: NM
Port Size: M5-0.8(mm)
Working Temperature: -20 to 80°

Inner diameter mm	32	40	50	63	80	100
Action mode	Double action type
Working medium	Air
SC Series	Basic type, FA type, FB type, CA type, CB type, LB type, TC type, TCM1 type
SCJ Series	Basic type, FA type, LB type, TC type, TCM1 type
Operating pressure range	0.1-1.0MPa (14-145Psi)
Working temperature	-20~80℃
Operating speed range	30-800
Stroke tolerance range	0~250+1.0		251~1000+1.0		1001~1500+1.0
Buffer form	Adjustable buffer
Buffer stroke	21				28	29
Piping port	PT1/8	PT1/4		PT3/8		PT1/2
