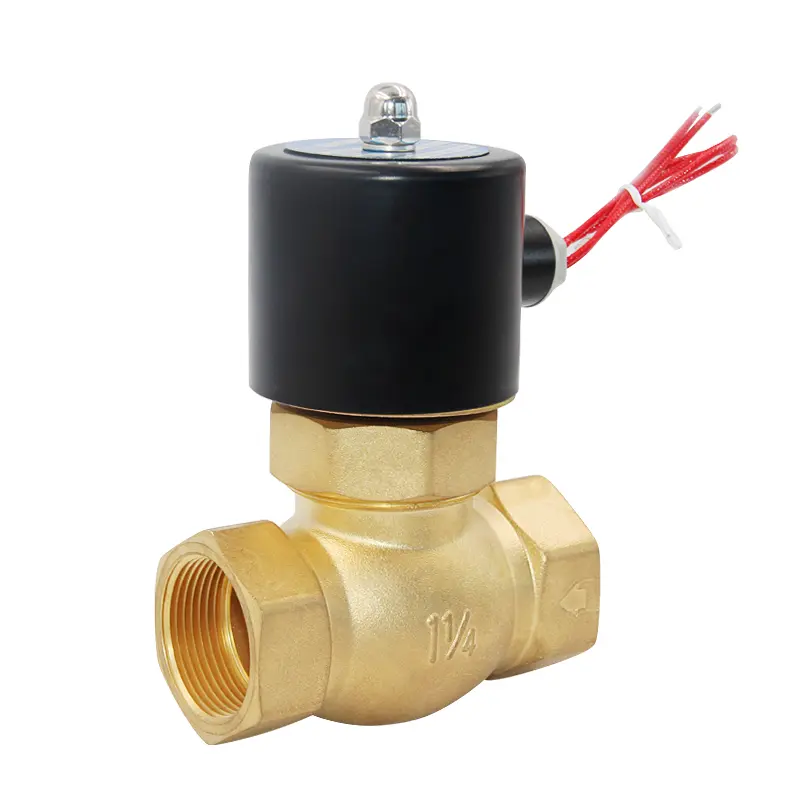

2L(US) 2/2 Way High-Temperature Steam Solenoid Valve
Specifications Parameter Description Product Name 2L(US) Series 2/2 Way Steam Solenoid Valve Series 2L / US Series Valve Function 2 ports, 2 positions Default State Normally closed Operation Type Pilot-operated piston Flow Direction Unidirectional; install according to the flow arrow Valve Body Brass Seal Material PTFE Working Medium Steam, hot water, air, water, light oil, and compatible neutral fluids Port Range G3/8 to G2 Typical Orifice Range Approximately 17–50 mm, depending on model Typical Working Pressure 0.1–1.5 MPa; confirm the exact model specification Pressure Differential A minimum inlet-to-outlet pressure differential is required Typical Medium Temperature −5°C to 180°C Medium Viscosity Typically no more than 20 cSt Voltage Options DC12V, DC24V, AC24V, AC110V, AC220V, and other options Voltage Tolerance Typically ±10% Electrical Connection DIN connector or lead-wire option, depending on coil Selection Checks Confirm model, port size, thread standard, medium, pressure differential, temperature, voltage, seal, flow direction, and installation space Model Selection Model Port Size Valve Function Typical Body and Seal 2L170-10 G3/8 2/2 way normally closed Brass body, PTFE seal 2L170-15 G1/2 2/2 way normally closed Brass body, PTFE seal…
