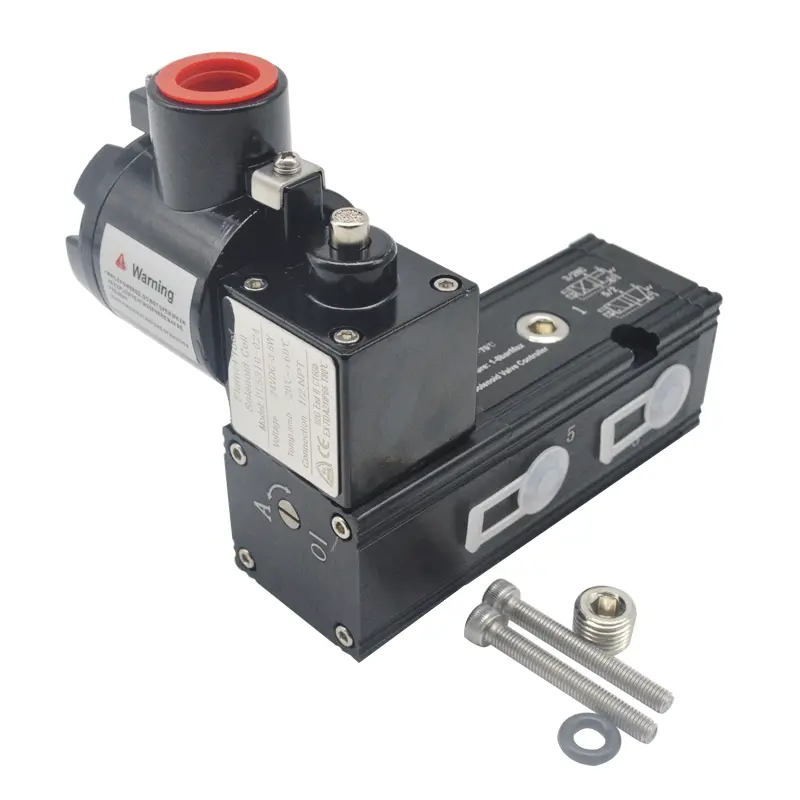

PL5310 series Explosion-proof solenoid NAMUR plate valve 5/2 way 3/2 way Flameproof Valve

Specification Parameters Body material:  Cold extruded aluminum alloy Surface treatment:  Anodized or electroless nickel plating Seal:  Nitrile "O" ring Wetted material:  Aluminum, Nitrile, Acetal Valve body function and CV value:  5/2 and 3/2NC, CV=1.4(25MM2) Air source interface: G1/4"BSPP or NPT1/4" Installation standard : 24x32NAMUR board connection or pipe connection Fastening screw : stainless steel Protection class:  IP65/IP66 (both indoor and outdoor use) Explosion-proof grade:  ExdIICT6Gb/ExtDA21 Working temperature : -10℃~80℃ Working pressure:  1-80bar Working medium:  Filtered (<=40μm) dry and lubricated air or neutral gas Double electric control:  Available Working electric control:  more than 3.5 million times (normal working conditions) Solenoid valve coil:  F5
